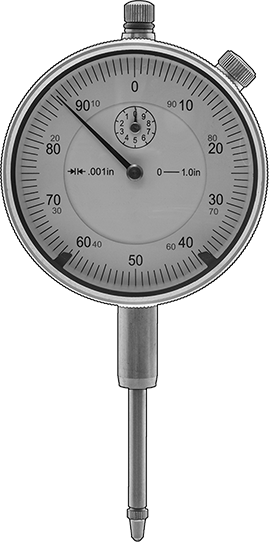

Economy Dial Plunger Variance Indicator
with 0" to 1" Distance Measured
Side View
000000 each
20715A69
In stock
20715A69
000000 each
Each
Mount Type | Lug, Stem |
Bearing Type | Plain |
Distance Measured | 0" to 1.000" |
Measuring Increments | 0.001" |
Accuracy | ±0.001" |
Dial Indicator Size | AGD Group 2 |
Mounting Stem Diameter | 3/8" |
Mounting Lug Hole Diameter | 1/4" |
Dial | |
Type | Continuous |
Face Movement | Rotating |
Face Color | White |
Hand Color | Black |
Hand Direction | Clockwise |
Diameter | 2 3/8" |
Reading Inch | 0-100 |
Contact Point | |
Diameter | 0.1" |
Length | 1/4" |
Mounting Thread Size | 4-48 |
Material | Steel |
Container Type | Case |
Dial Indicator Type | Plunger |
Display Type | Dial |
System of Measurement | Inch |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 901730.8000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
For direct measurements, these indicators have a continuous dial numbered clockwise around the face. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles.
