    Light Duty Swivel Caster for Furniture

    with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel

    Image of Product. Back orientation. Light Duty Swivel Caster for Furniture, with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel.

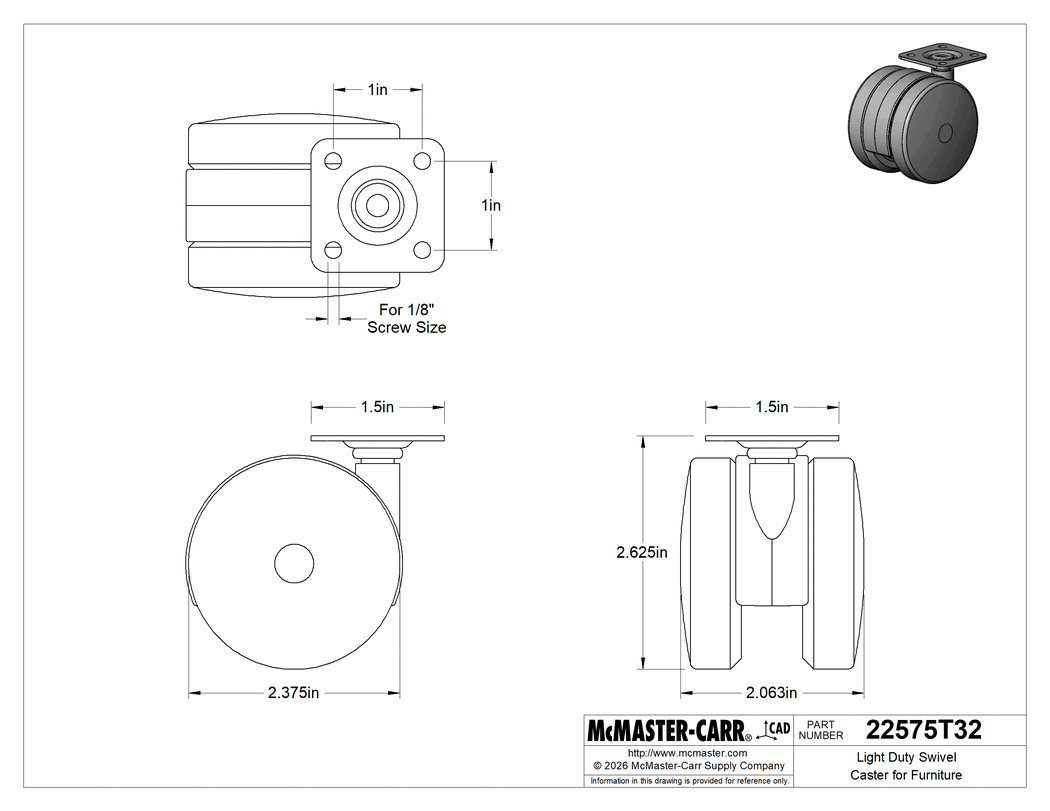

    Technical Drawing of Light Duty Swivel Caster for Furniture, with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel.
    Image of Product. Front orientation. Light Duty Swivel Caster for Furniture, with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel.

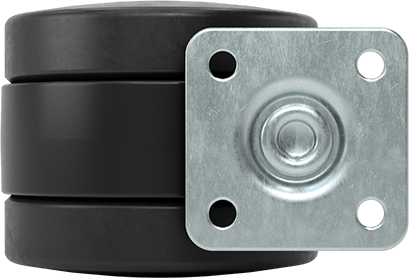

    Image of Product. Top orientation. Light Duty Swivel Caster for Furniture, with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel.
    Image of Product. Side1 orientation. Contains SizingReference. Light Duty Swivel Caster for Furniture, with 1-1/2" x 1-1/2" Plate and 2-3/8" Diameter Polyurethane Wheel.
    2-D PDF
    00000 each
    22575T32
    In stock
    22575T32
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting Plate

    Length

    1 1/2"

    Width

    1 1/2"

    Style

    1

    Wheel Color

    Black

    Wheel Type

    Solid

    Hardness Rating

    Medium

    Caster Type

    Swivel

    Wheel

    Diameter

    2 3/8"

    Width

    2 1/16"

    Number of

    2

    Mount Height

    2 5/8"

    Weight Capacity per Caster

    100 lb.

    Hardness

    Durometer 90A

    Frame

    Fabrication

    Molded

    Material

    Plastic

    Color

    Black

    Caster Swivel Construction

    Kingpin

    For Screw Size

    1/8"

    For Surface Type

    Asphalt, Bar Grating, Brick, Carpet, Concrete, Hardwood, Linoleum, Steel, Tile

    For Use With

    Mild Acids, Mild Alkalis, Solvents, Grease, Oil

    Mount Type

    Plate

    Mounting Fasteners Included

    No

    Mounting Holes

    Center-to-Center Length

    1"

    Center-to-Center Width

    1"

    Mounting Plate Material

    Zinc-Plated Steel

    Nonmarking Wheels

    No

    Swivel Bearing

    Type

    Without Bearing

    Tread Style

    Flat

    Wheel Bearing Type

    Without Bearing

    Wheel/Tread Material

    Polyurethane Rubber

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    830220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Also known as twin-wheel casters, these lightweight and economical casters are often used on furniture and displays. The wheels ride directly on the axle.

    The information in this 3-D model is provided for reference only.
