    1.9" Diameter Conveyor Roller

    1/4" Round Axle Diameter, for 27" Between Frame Width

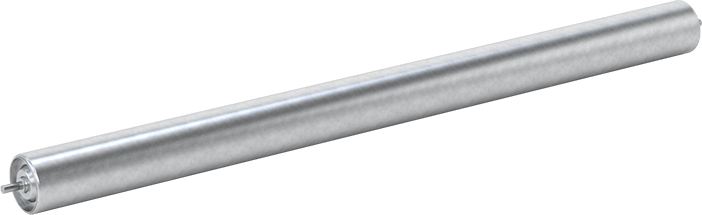

    Image of Product. Front orientation. 1.9" Diameter Conveyor Roller, 1/4" Round Axle Diameter, for 27" Between Frame Width.

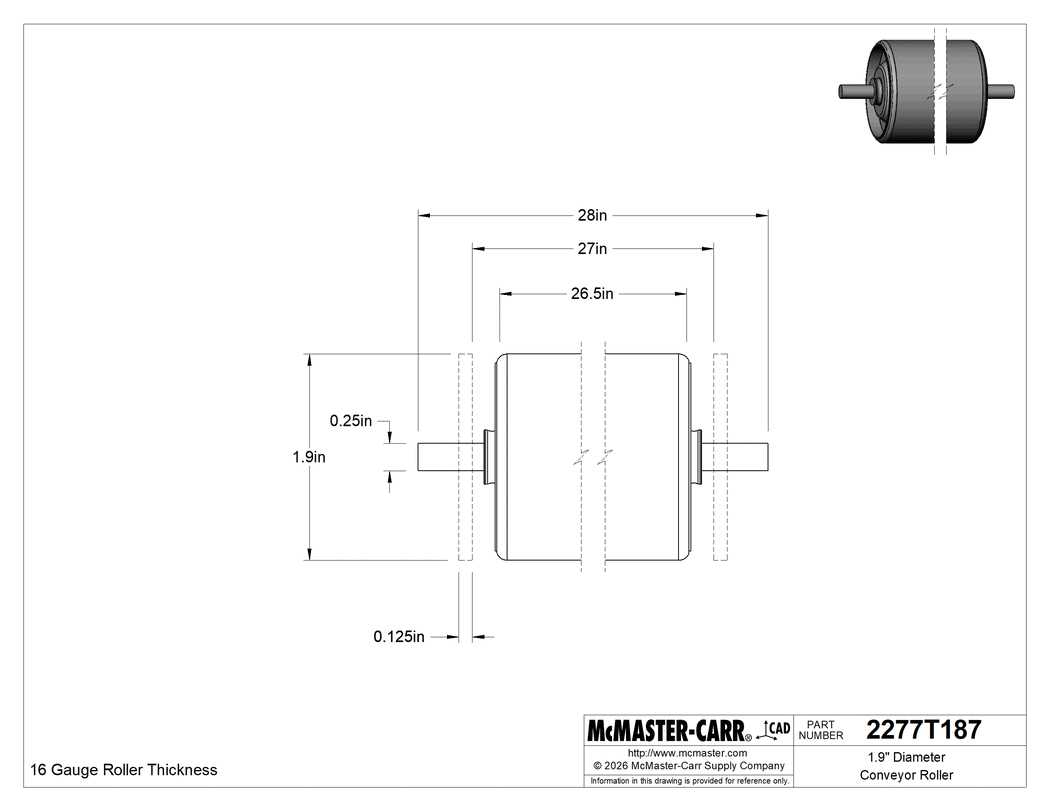

    Technical Drawing of 1.9" Diameter Conveyor Roller, 1/4" Round Axle Diameter, for 27" Between Frame Width.
    Image of Product. Side1 orientation. Contains SizingReference. 1.9" Diameter Conveyor Roller, 1/4" Round Axle Diameter, for 27" Between Frame Width.
    2-D PDF
    000000 each
    2277T187
    In stock
    2277T187
    1-24 each000000
    25-99 each000000
    100 or more000000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Axle Diameter

    1/4"

    Axle Shape

    Round

    Roller

    Diameter

    1.9"

    Width

    26 1/2"

    Material

    Galvanized Steel

    Gauge

    16

    For Between Frame Width

    27"

    Weight Capacity

    125 lb.

    Overall Width

    28"

    Bearing

    Type

    Ball

    Material

    Steel

    Temperature Range

    -15° F to 220° F

    Axle Grip Type

    Spring Loaded

    Ball Bearing Material

    Steel

    Motorized

    No

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    843139.0010

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Replace damaged rollers or use multiple rollers to build a custom conveyor.
