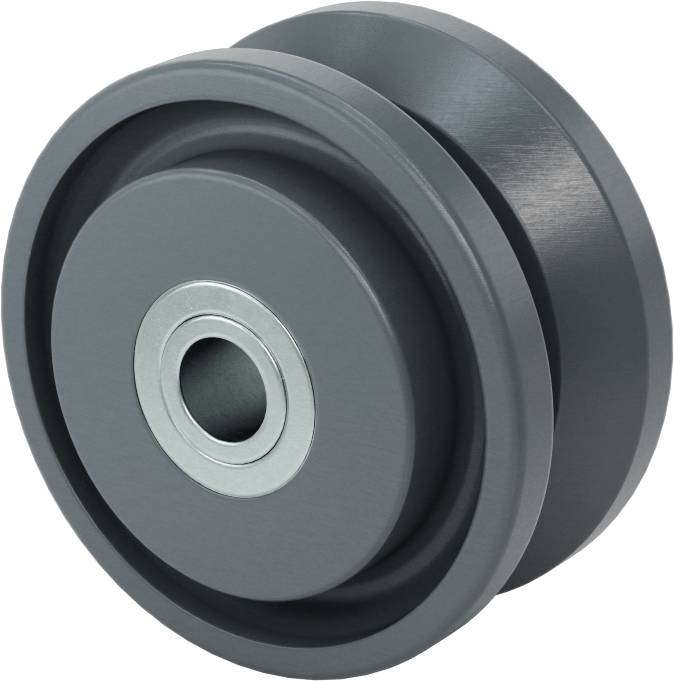

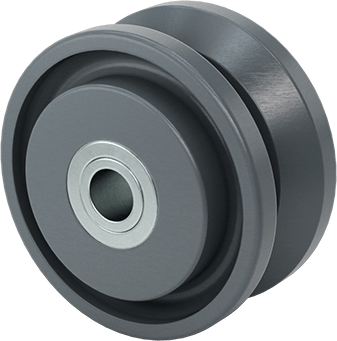

Iron V-Groove Track Wheel
3" Diameter x 1-3/8" Wide

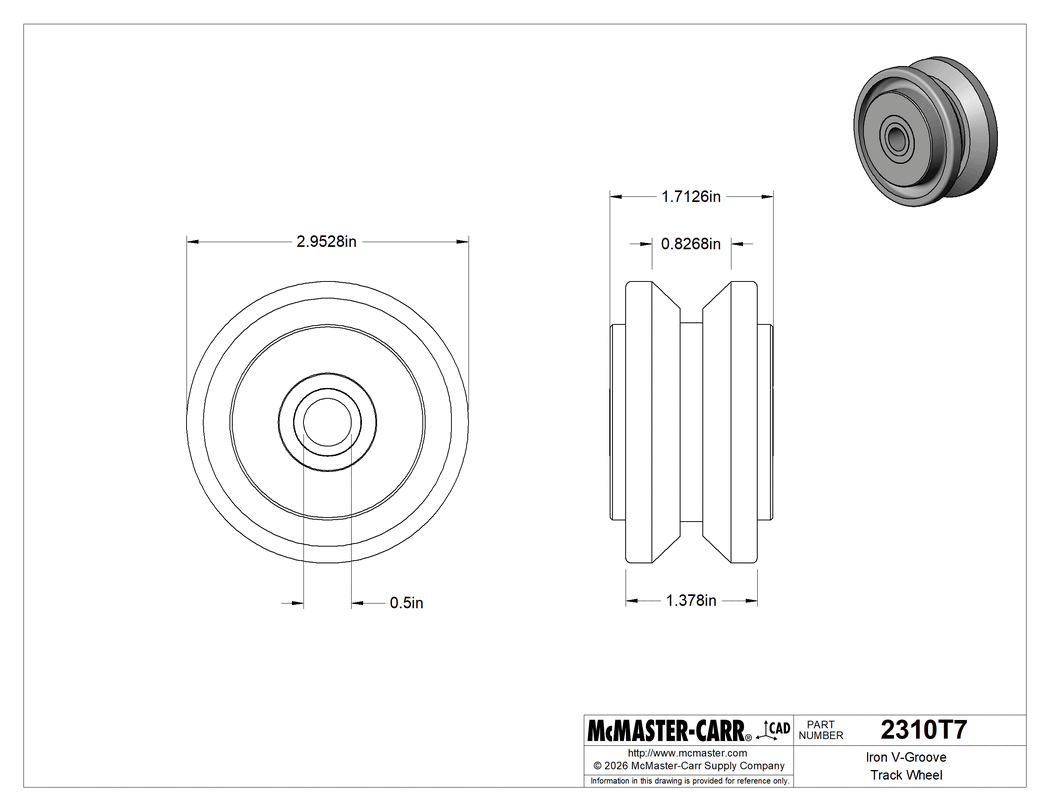

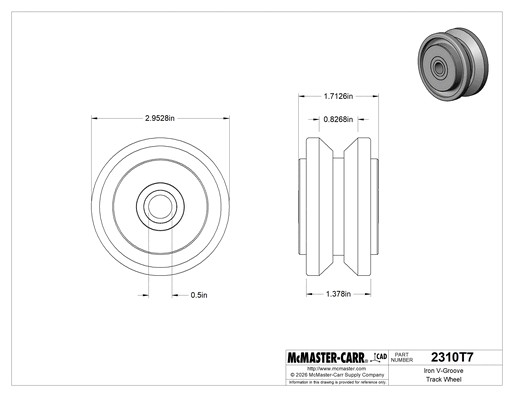

2-D PDF
000000 each
2310T7
In stock
2310T7
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Wheel/Tread Material | Iron |
Hardness Rating | Hard |
Wheel Bearing | |
Seal Type | Open |
Material | Steel |
Type | Roller |
Wheel Type | Solid |
Wheel | |
Diameter | 3" |
Width | 1 3/8" |
Hub Length | 1 11/16" |
Weight Capacity per Wheel | 450 lb. |
Hardness | Not Rated |
Tread Style | V-Groove |
Groove | |
Width | 13/16" |
Angle | 90° |
Clearance | |
On 1 1/4" Track | 7/16" |
On 1 1/2" Track | 5/8" |
Nonmarking Wheels | No |
Wheel Core Style | Solid |
Temperature Range | 5° F to 210° F |
For Axle Diameter | 1/2" |
For Surface Type | Concrete, Steel, Track |
For Use With | Mild Acids, Mild Alkalis, Solvents, Grease, Oil |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These wheels have a 90° V-groove and a flat tread to move your equipment on angle-iron track as well as the floor.
Iron—Metal wheels are rugged and long lasting, and can withstand chemicals, high temperatures, and heavy loads.
With Roller Bearings—Roller bearings provide smoother rolling than sleeve bearings.
The information in this 3-D model is provided for reference only.
