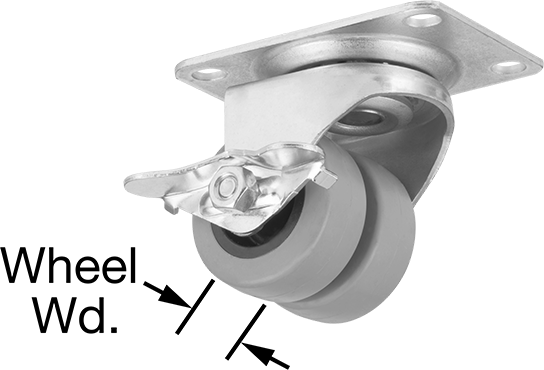

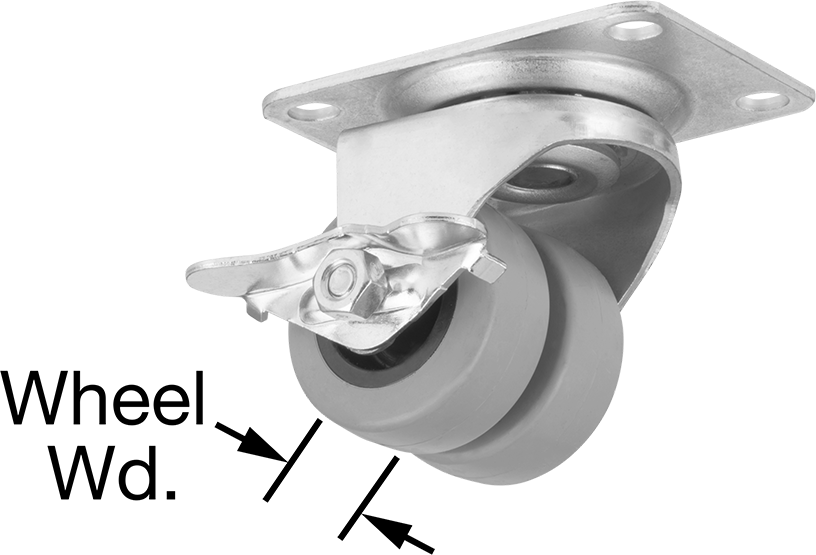

Low-Profile Swivel Caster
with Brake and 2" Diameter Rubber Wheel
Wheel | |
Diameter | 2" |
Width | 13/16" |
Number of | 2 |
Nonmarking Wheels | Yes |
Wheel Color | Gray |
Wheel Type | Tread on Core |
Wheel/Tread Material | Rubber |
Hardness Rating | Medium |
Hardness | Durometer 90A |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake |
Mount Height | 2 13/16" |
Weight Capacity per Caster | 180 lb. |
Tread Style | Flat |
Wheel Bearing Type | Without Bearing |
Mounting Plate | |
Length | 3 3/4" |
Width | 2 5/8" |
Mounting Holes | |
Center-to-Center Length | 3" |
Center-to-Center Width | 1 3/4" |
For Screw Size | 5/16" |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Caster Swivel Construction | Kingpin |
Swivel Bearing | |
Type | Ball |
Seal Type | Open |
Construction | Dual Raceway |
Wheel Core Material | Rubber |
Brake | |
Location | Right Side |
Activation | Foot Pedal |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 830220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Used on hotel bellman's carts, these casters have a compact frame for use on small appliances and furniture and offer better load distribution than single-wheel casters. Their nonmarking rubber wheels protect your floor and rolls over smooth and rough surfaces.
Wheels ride directly on the axle rather than on bearings.
Casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

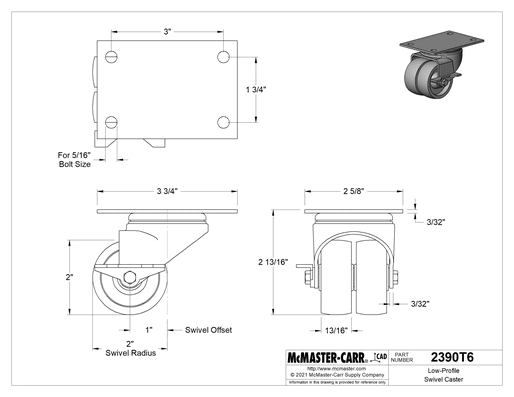

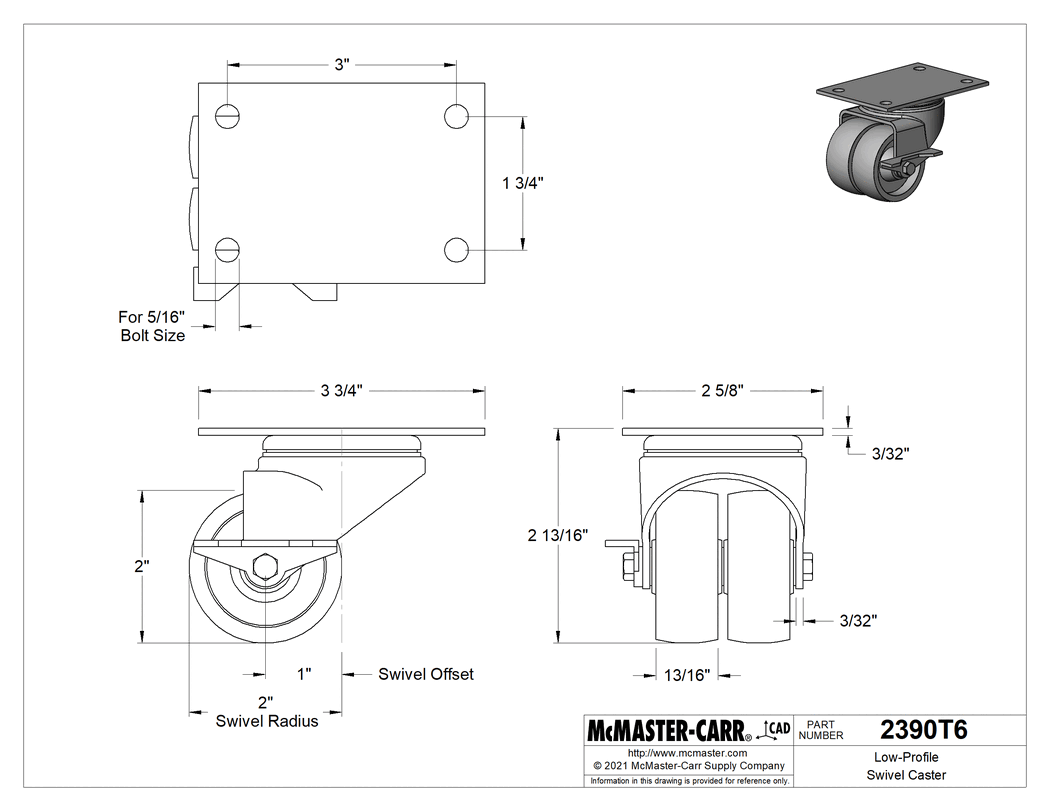

The information in this 3-D model is provided for reference only.
