    Light Duty Furniture Swivel Caster

    2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate

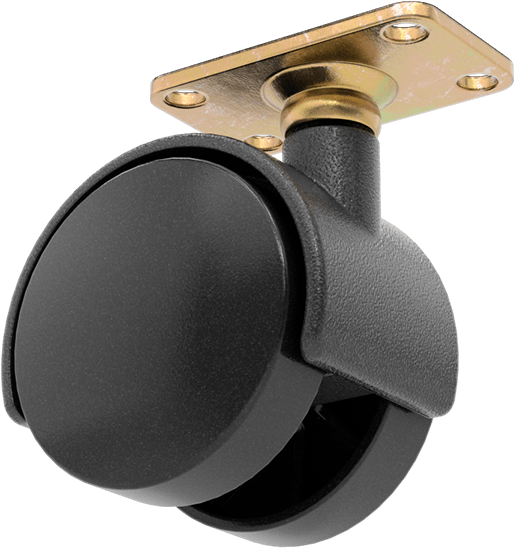

    Image of Product. Front orientation. Light Duty Furniture Swivel Caster, 2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate.

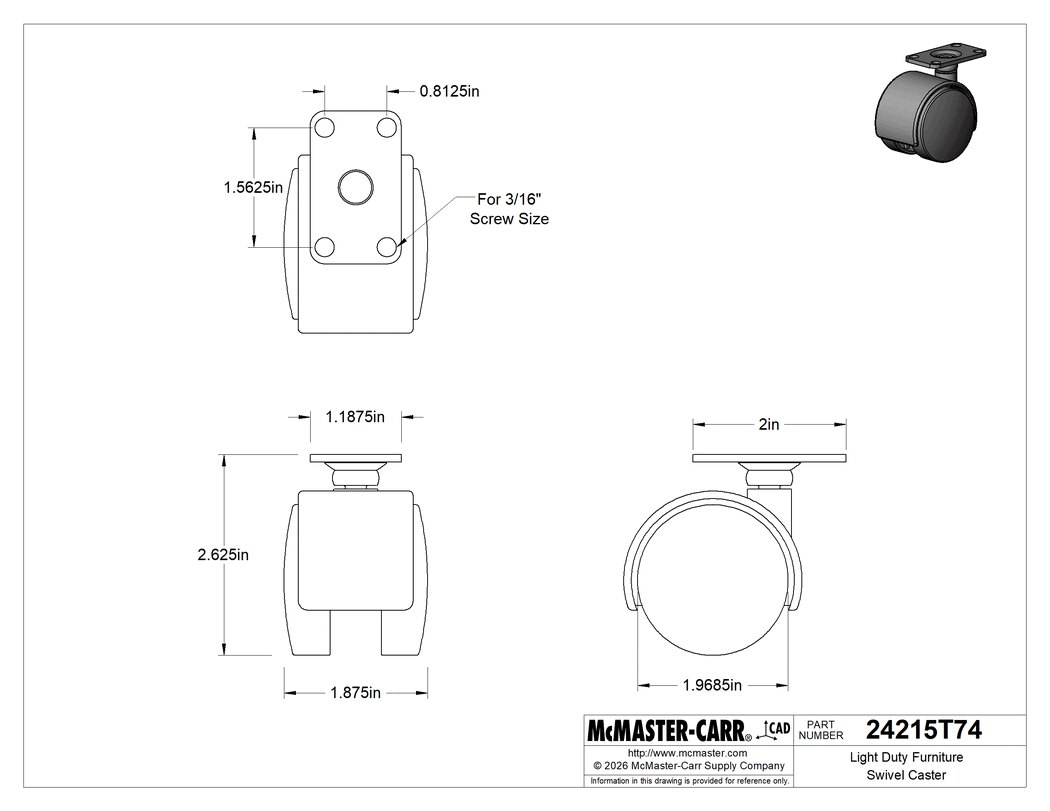

    Technical Drawing of Light Duty Furniture Swivel Caster, 2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate.

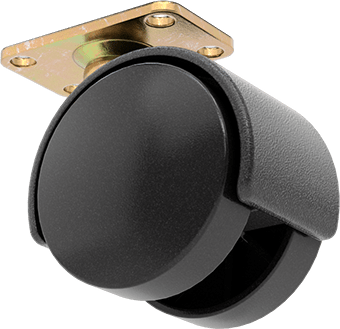

    Image of Product. Back orientation. Light Duty Furniture Swivel Caster, 2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate.

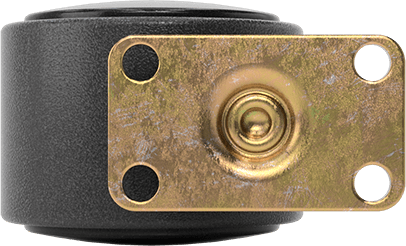

    Image of Product. Top orientation. Light Duty Furniture Swivel Caster, 2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate.
    Image of Product. Side1 orientation. Contains SizingReference. Light Duty Furniture Swivel Caster, 2" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate.
    2-D PDF
    00000 each
    24215T74
    In stock
    24215T74
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mounting Plate

    Length

    2"

    Width

    1 3/16"

    Style

    2

    Wheel

    Diameter

    2"

    Width

    1 7/8"

    Number of

    2

    Nonmarking Wheels

    No

    Wheel Color

    Black

    Wheel Type

    Solid

    Wheel/Tread Material

    Nylon

    Hardness Rating

    Hard

    Hardness

    Durometer 70D

    Caster Type

    Swivel

    Mount Height

    2 5/8"

    Weight Capacity per Caster

    70 lb.

    Tread Style

    Flat

    Wheel Bearing Type

    Without Bearing

    Hood Material

    Plastic

    Mounting Holes

    Center-to-Center Length

    1 9/16"

    Center-to-Center Width

    13/16"

    For Screw Size

    3/16"

    Frame

    Fabrication

    Molded

    Material

    Plastic

    Color

    Black

    Caster Swivel Construction

    Kingpin

    Swivel Bearing Type

    Without Bearing

    For Surface Type

    Asphalt, Brick, Carpet, Concrete, Hardwood, Linoleum, Steel, Tile

    For Use With

    Mild Acids, Mild Alkalis, Solvents, Grease, Oil

    Mount Type

    Plate

    Mounting Fasteners Included

    No

    Mounting Plate Material

    Zinc-Plated Steel

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    830220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Also known as twin-wheel casters, these lightweight and economical casters are often used on furniture and displays. Wheels are impact- and wear-resistant nylon.

    They work well on smooth surfaces.

    The wheels ride directly on the axle rather than on bearings, making these casters an economical choice for equipment not frequently moved.

    The information in this 3-D model is provided for reference only.
