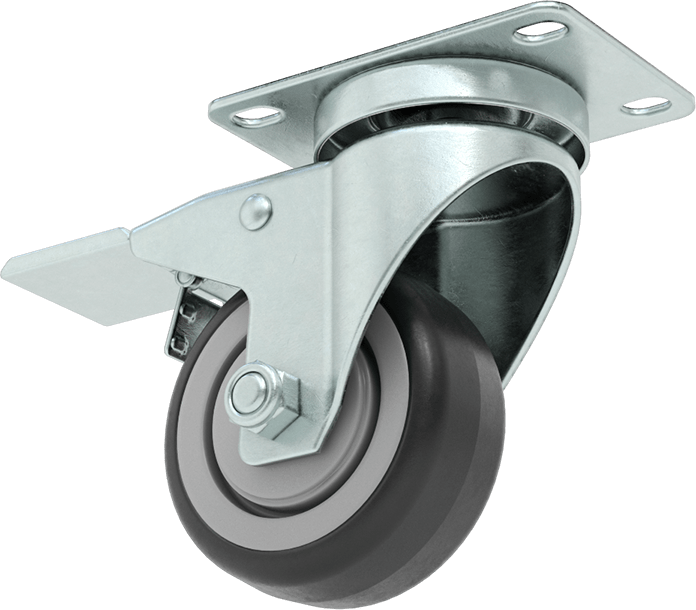

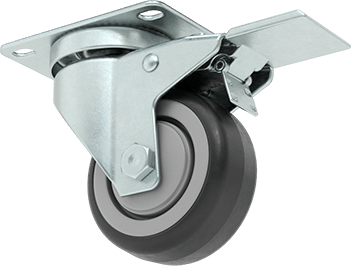

Cardinal Caster
Swivel with Total Lock and 3" Diameter Rubber Wheel
Wheel | |
Diameter | 3" |
Width | 1 1/4" |
Number of | 1 |
Nonmarking Wheels | Yes |
Wheel Color | Gray |
Wheel Type | Tread on Core |
Wheel/Tread Material | Rubber |
Hardness Rating | Soft |
Hardness | Durometer 85A |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake and Swivel Lock (Total Lock) |
Mount Height | 4 1/4" |
Weight Capacity per Caster | 210 lb. |
Tread Style | Flat |
Wheel Bearing | |
Type | Ball |
Material | Steel |
Seal Type | Open |

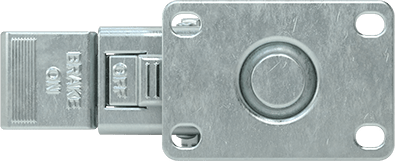

Mounting Plate | |
Length | 3 5/8" |
Width | 2 1/2" |
Mounting Holes | |
Center-to-Center Width | 1 3/4" |
Center-to-Center Length (A) | 3" |
Center-to-Center Length (B) | 2 3/4" |
For Screw Size | 5/16" |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Caster Swivel Construction | Kingpin |
Swivel Bearing | |
Type | Ball |
Seal Type | Shielded |
Construction | Dual Raceway |
Wheel Core Material | Polypropylene |
Brake | |
Location | Face |
Activation | Foot Pedal |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Swivel-Lock Activation | Foot Pedal |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
A shield on the swivel keeps out contaminants for extended service life. They have a soft, cushioning rubber tread for use on smooth and hard surfaces with a hard polypropylene core for strength.
Ball bearings in the wheel provide easy rolling.
Swivel Casters—Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake and Swivel Lock (Total Lock)—Casters with total lock brake the wheel and lock the swivel with one press of the foot pedal.
Shielded Bearing—Shielded bearings resist dust and debris.

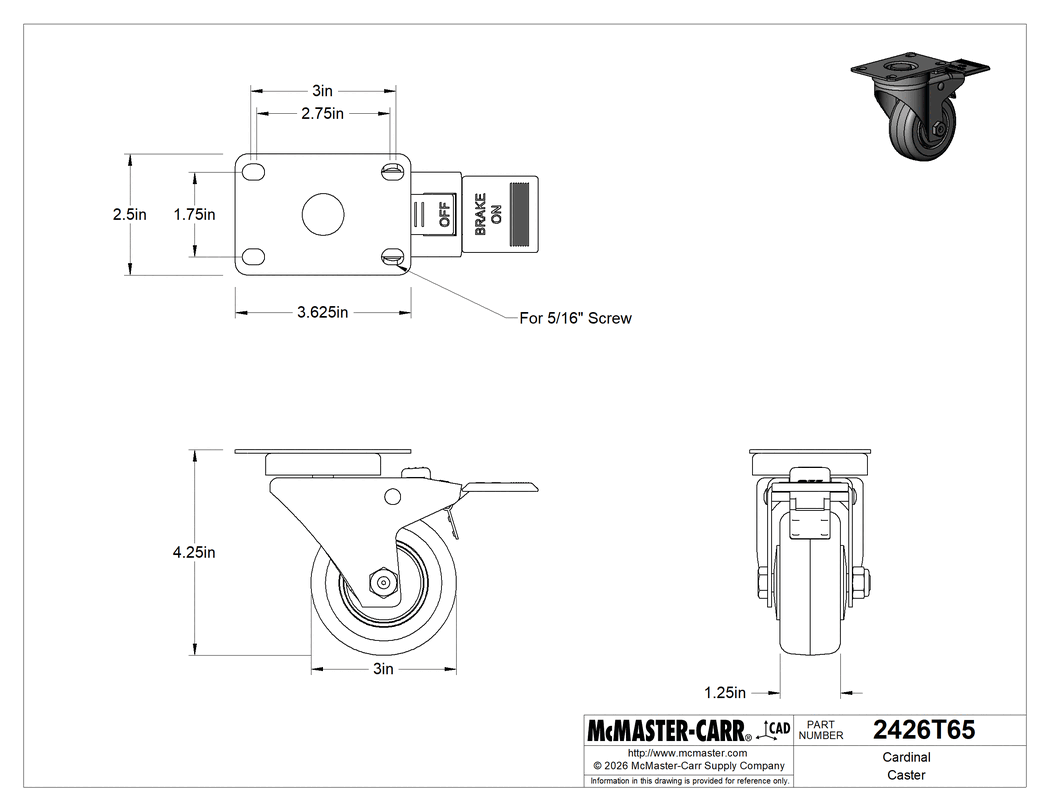

The information in this 3-D model is provided for reference only.
