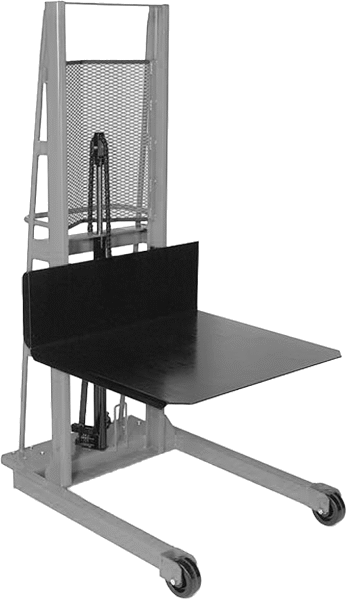

Manual Lift Truck
with 30" Long Platform, Foot Pedal Adjustment, Standard Base
Adjustment | |
Direction | Down, Up |
Mechanism | Foot Pedal |
Base | |
Type | Standard |
Material | Steel |
Overall Weight Capacity | 1,000 lb. |
Platform | |
Style | Solid |
Surface | Smooth |
Profile | Flush |
Height | 5 3/4" to 68" |
Length | 30" |
Width | 32" |
Load Center | 18" |
Overall | |
Length | 44" |
Height | 80" |
For Pallet Width | 31" to 44" |
Handle | |
Height | 41" |
Style | Loop |
Material | Painted Steel |
Base Leg | |
Inside Spread | 25 1/2" |
Outside Spread | 32" |
Wheel Configuration | Two Axle-Mounted Wheels and Two Swivel Casters |
Front Wheel | |
Diameter | 5" |
Material | Phenolic |
Type | Solid |
Back Wheel | |
Diameter | 4" |
Material | Phenolic |
Type | Solid |
Body Material | Steel |
Brake Type | Floor Lock |
Caster Replaceable | Yes |
Elevation per Stroke | 5/8" |
Power Source | Manual |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 842790.0040 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Pump a foot pedal or crank a handle to raise and lower loads with these trucks. The platform supports material directly without an additional pallet and has a back plate to protect the truck. Engage the floor lock or wheel brakes before lifting or lowering a load.
Warning: Never use to lift people.
Standard Base—Trucks with a standard or closed base have wheels in the front and back, so they're easier to steer than trucks with a hand truck base.
Phenolic Wheel—Phenolic wheels are nonmarking and roll best on smooth surfaces but can be noisy.
