    Zinc-Plated Steel Floor Lock with Pedal on Both Sides

    7-1/2" Extended and 6-1/2" Retracted Height

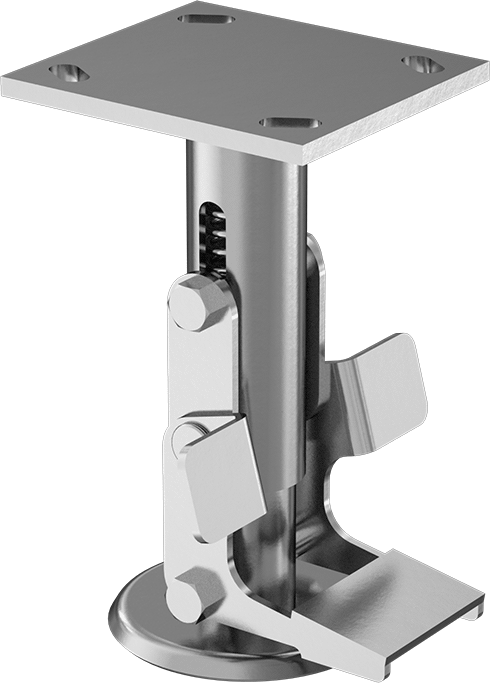

    Image of Product. Front orientation. Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.

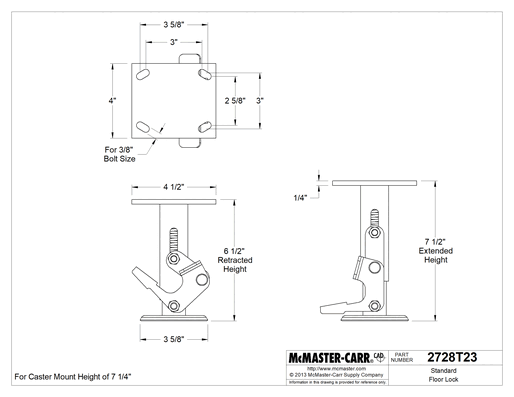

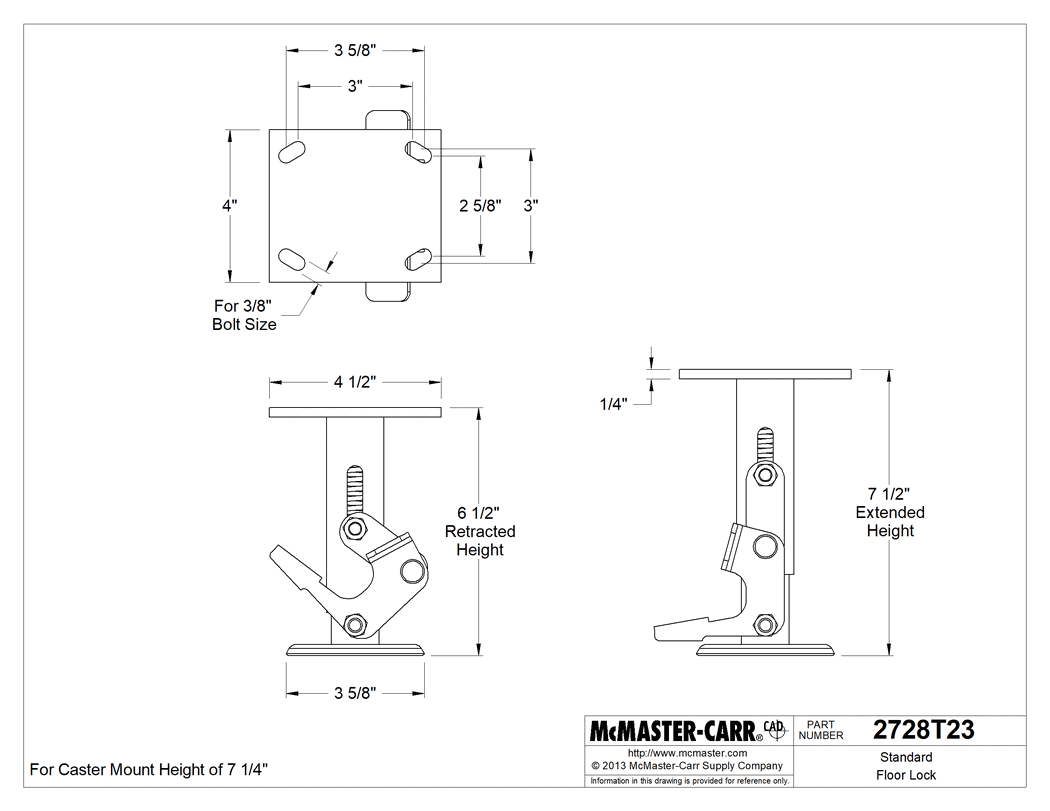

    Technical Drawing of Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.

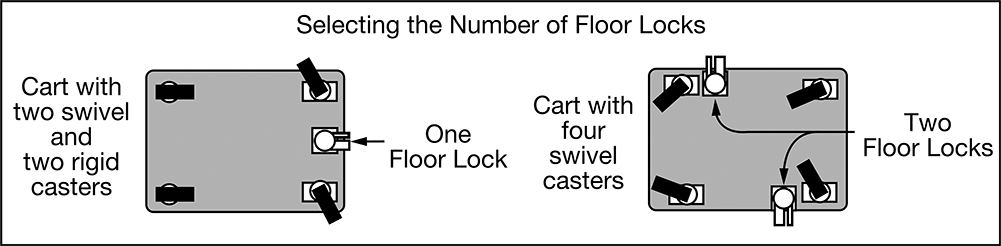

    Image of ProductInUse. Front orientation. Contains Annotated, Border. Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.
    Image of Attribute. Front orientation. Contains Annotated. Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.
    Image of Attribute. Front orientation. Contains Annotated. Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.

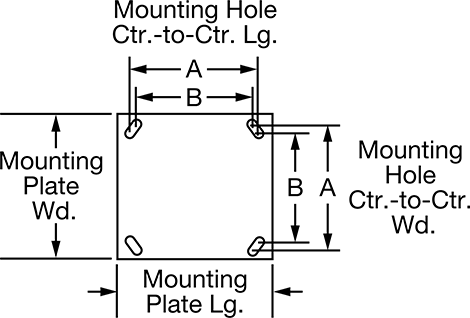

    Image of Attribute. Mounting Plate Style 1. Front orientation. Contains Annotated. Zinc-Plated Steel Floor Lock with Pedal on Both Sides, 7-1/2" Extended and 6-1/2" Retracted Height.
    Mounting Plate Style 1
    2-D PDF
    000000 each
    2728T23
    In stock
    2728T23
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Brake Pedal Location

    Extension

    Bottom

    Retraction

    Both Sides

    Material

    Zinc-Plated Steel

    For Caster Mount Height

    7 1/4"

    Height

    Extended

    7 1/2"

    Retracted

    6 1/2"

    Clearance

    1"

    Mounting Plate

    Style

    1

    Length

    4 1/2"

    Width

    4"

    Mounting Hole Center to Center

    Length (A)

    3 5/8"

    Length (B)

    3"

    Width (A)

    3"

    Width (B)

    2 5/8"

    Mounting Fasteners Included

    No

    For Screw Size

    3/8"

    Mounting Location

    Bottom

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    871690.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Stabilize carts, trucks, workbenches, and other mobile equipment during loading and unloading. Floor locks bolt or weld to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.

    Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.

    The information in this 3-D model is provided for reference only.
