    High-Speed Steel Round-Shank Reamer

    with Straight Flute, 0.7430" Reamer Diameter

    Image of Product. Side1 orientation. High-Speed Steel Round-Shank Reamer, with Straight Flute, 0.7430" Reamer Diameter.

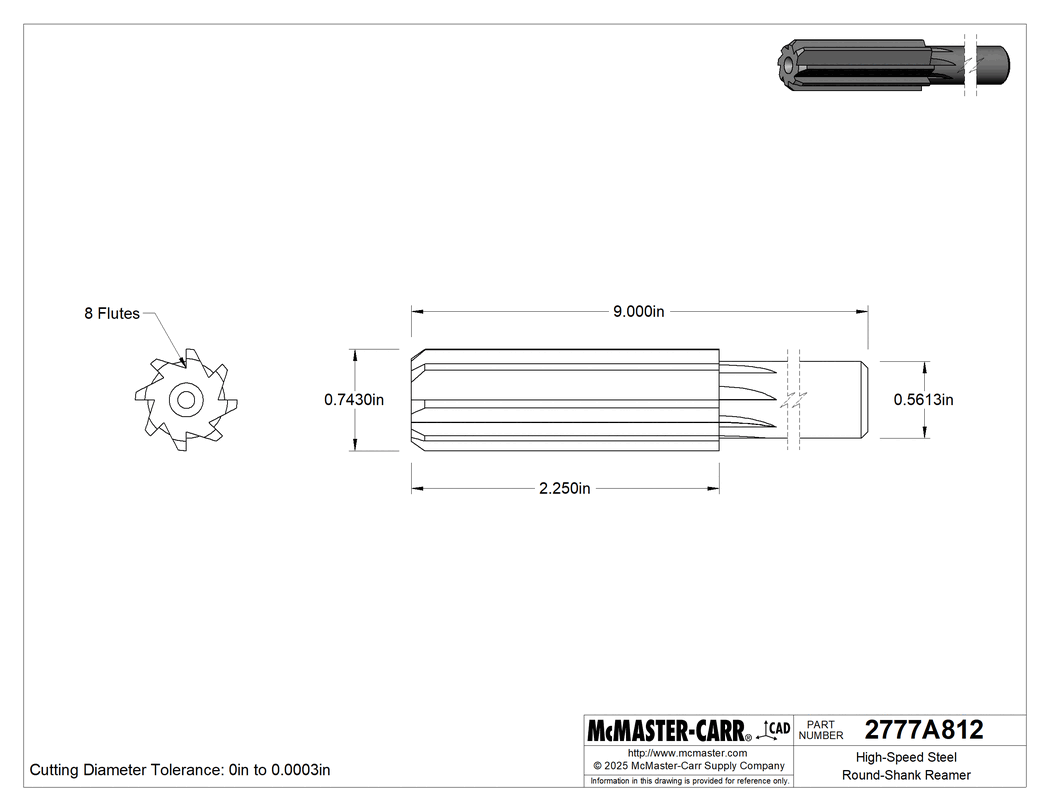

    Technical Drawing of High-Speed Steel Round-Shank Reamer, with Straight Flute, 0.7430" Reamer Diameter.
    Image of Product. Front orientation. High-Speed Steel Round-Shank Reamer, with Straight Flute, 0.7430" Reamer Diameter.
    Image of Product. Side1 orientation. Contains SizingReference. High-Speed Steel Round-Shank Reamer, with Straight Flute, 0.7430" Reamer Diameter.
    2-D PDF
    0000000 each
    2777A812
    In stock
    2777A812
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Sold As

    Individual

    Reamer Type

    Standard

    Shank Type

    Round

    Flute Type

    Straight

    System of Measurement

    Inch

    Reamer Diameter

    0.7430"

    Material

    High-Speed Steel

    Length

    Flute

    2 1/4"

    Overall

    9"

    Number of Flutes

    8

    Cutting Diameter Tolerance

    0" to 0.0003"

    For Use On

    Aluminum, Brass, Bronze, Iron, Plastic, Stainless Steel, Steel

    Reamer Operation

    Machine

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820760.0060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Finish holes to precise inch, metric, wire gauge, or letter sizes with these reamers.

    Round Shank—These reamers fit in the chuck of drill presses, turret lathes, and other machine and power tools, making them the most common shank type.

    Straight Flute—The most common flute style, these reamers are suitable for a wide range of applications, but not recommended for holes with a keyway or other breaks in the surface.

    High-Speed Steel—Durable and wear resistant, these are good for general purpose reaming in most materials.
