Steel Ball Bearing
Trade No. 1621-2RS, Sealed, for 1/2" Shaft Diameter
For Shaft Type | Round |
Bearing Seal Type | Sealed |
Material | Steel |
For Shaft Diameter | 1/2" |
For Housing ID | 1 3/8" |
Width | 7/16" |
Width Tolerance | -0.005" to 0" |
ABEC Rating | Not Rated |
Dynamic Radial Load Capacity | 1,850 lb. |
Maximum Rotation Speed | 5,000 rpm |
Temperature Range | |
Minimum | -20° F |
Max. | 250° F |
Inner Ring Type | Standard |
Bearing Trade Number | 1621-2RS |
Ball Bearing Profile | Standard |
Ball Material | Steel |
Bearing Construction | Single Row |
Bearing Type | Ball |
Cage Material | Nylon |
For Load Direction | Radial |
ID | 0.5" |
ID Tolerance | -0.0005" to 0" |
Lubricant | Grease |
Lubrication | Lubricated |
OD | 1.375" |
OD Tolerance | -0.0005" to 0" |
Radial Clearance | 0.0002" to 0.0012" |
Seal Material | Buna-N |
Shaft Mount Type | Press Fit |
Static Radial Load Capacity | 850 lb. |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5048 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Smoother than smooth—the balls inside these bearings roll nearly friction-free. You’ll often find them on rapidly rotating parts, from the whirring chuck on a power drill to the spinning shaft on an electric motor.
Sealed—The best choice for dirty environments. A barrier seals out dust so it won't gunk up or wear down the balls. However, these bearings retain the most heat since air can't flow through.
Steel—Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.

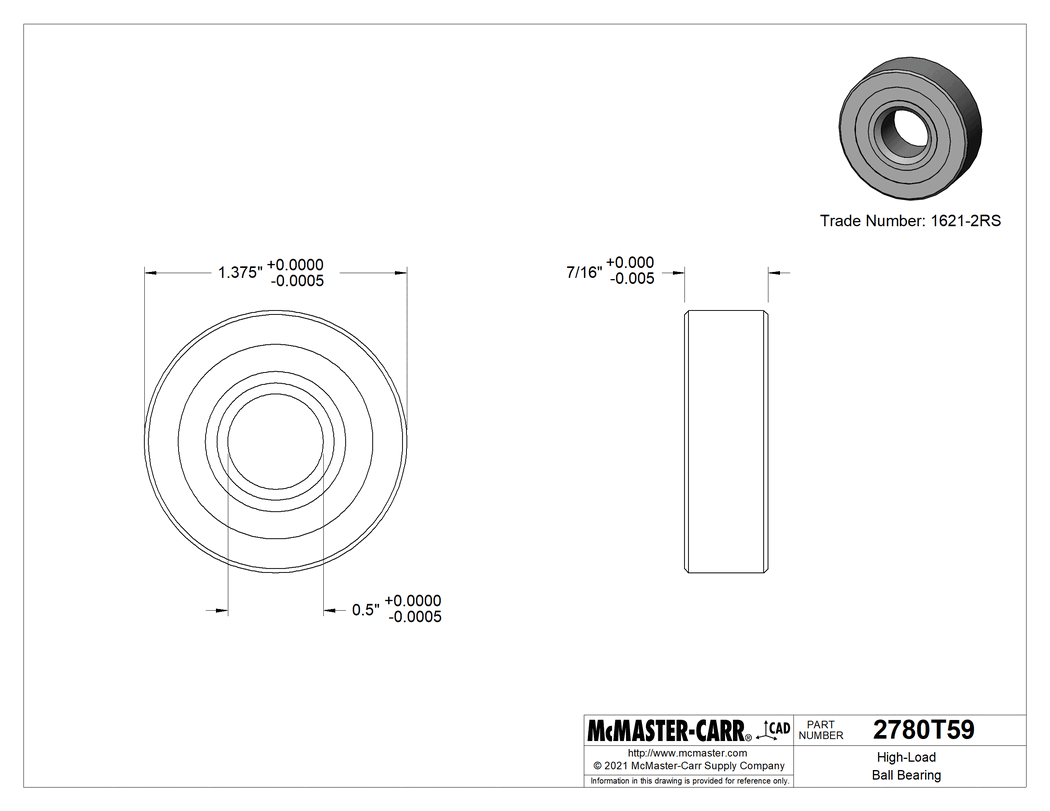

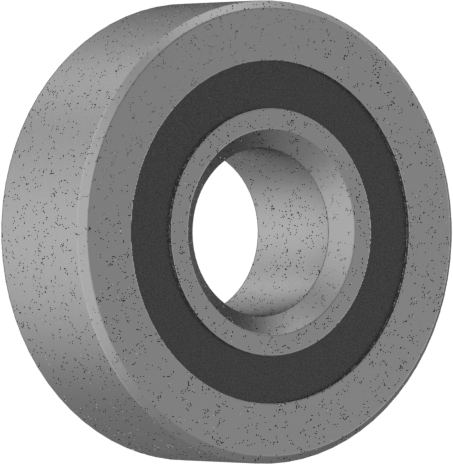

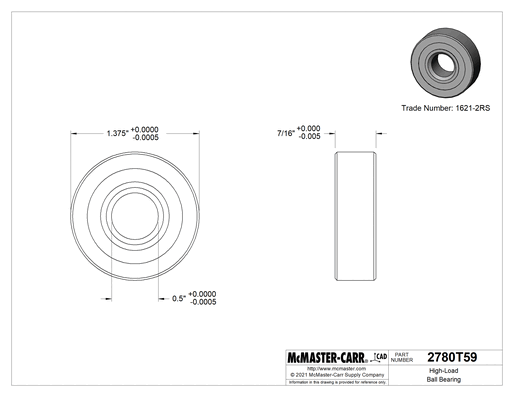

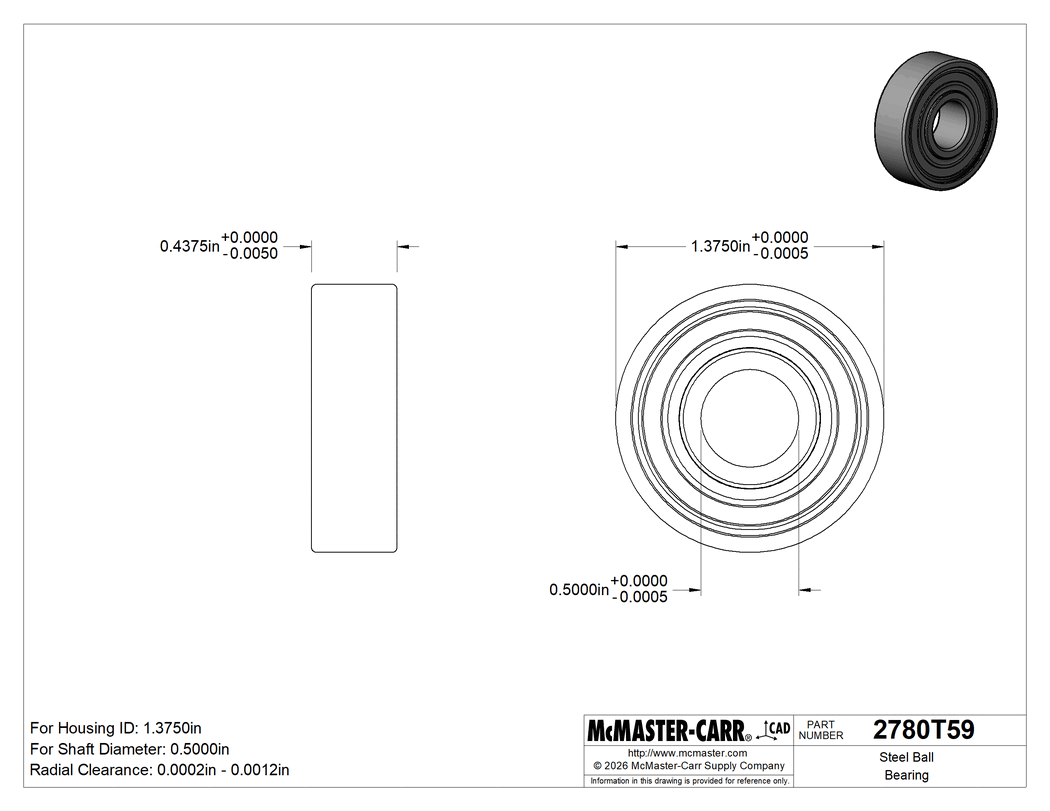

The information in this 3-D model is provided for reference only.
