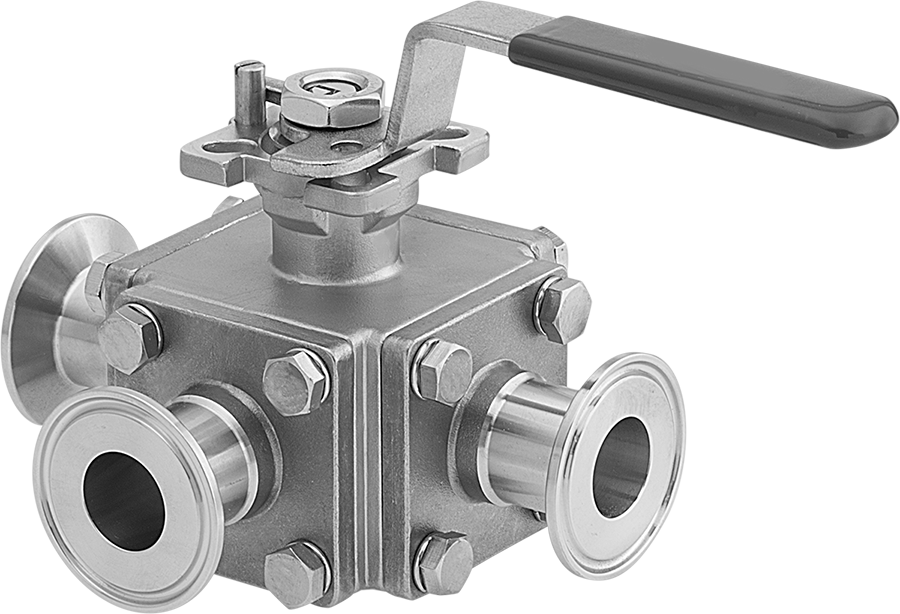

Diverting Valve with Quick-Clamp Fittings
for Food and Beverage, T-Pattern Flow, for 1-3/8" Tube ID
Diverting Valve Flow Pattern | T-Pattern |
Body Material | 316 Stainless Steel |
Ball Material | 316 Stainless Steel |
Inlet Connection Location | Side |
Outlet Connection Location | Side |
Outlet Connection Location | Side |
Fitting Connection | Quick Clamp |
Fitting Connection | Quick Clamp |
Fitting Connection | Quick Clamp |
For Tube | |
ID | 1 3/8" |
OD | 1 1/2" |
Flow Shut-Off | No |
Handle Style | Lever |
Port Type | Full |
Flow Coefficient (Cv) | 80 |
Maximum Pressure @ Temperature | 400 psi @ 225° F |
Valve Type | Ball |
Temperature Range | 0° F to 300° F |
Vacuum Rating | Not Rated |
Seal Material | PTFE |
End-to-End Length | 6 7/8" |
For Use With | Beverage, Food |
Overall | |
Height | 6 1/8" |
Length | 12 11/16" |
O-Ring Material | Fluoroelastomer |
Seat Material | PTFE |
Packing Material | PTFE |
Mounting Position | Any Angle, Horizontal, Vertical |
Actuation | Manual |
Connection Port | Inlet/Outlet |
Connection Port | Inlet/Outlet |
Connection Port | Inlet/Outlet |
Connects to | Tube |
Environment | Food and Beverage |
Fitting Type | Connector |
Number of Flow-Adjustment Positions | 4 |
Number of Ports | 3 |
Shape | Tee |
Valve Function | Diverting |
Valve Operation | Handle |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848180.3070 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With sanitary quick-clamp connections for easy disassembly in systems that require frequent cleaning, these valves are often used to divert flow between ports in food and beverage applications. Any port can be used as an inlet or an outlet. Valves cannot shut off flow. All have a 316 stainless steel body for excellent corrosion resistance. They are full port, so they do not restrict flow.
T-Pattern Flow—Valves with T-pattern flow can direct flow from the inlet port to either port at full capacity or direct flow to both outlet ports simultaneously at reduced capacity.
Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
