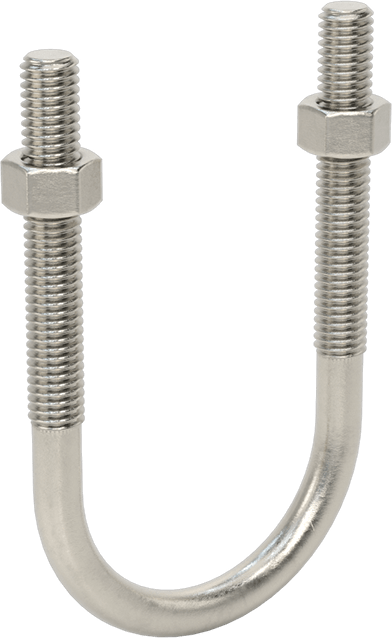

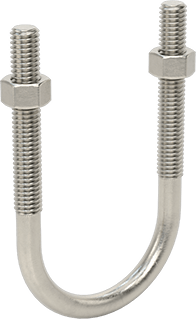

316 Stainless Steel U-Bolt
3/8"-16 Thread Size, 2" ID

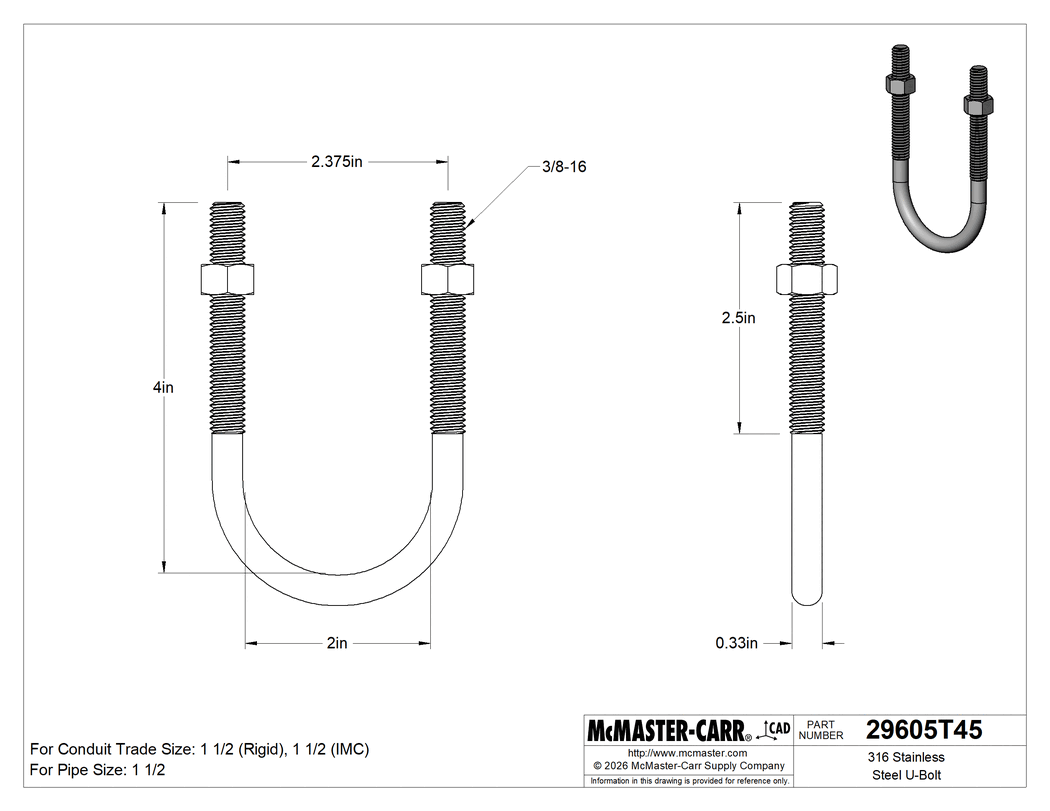

2-D PDF
000000 per pack of 1
29605T45
In stock
29605T45
000000 per pack of 1
Pack of 1
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Includes Mounting Plate | No |
Material | 316 Stainless Steel |
Thread Size | 3/8"-16 |
ID | |
Inch | 2" |
Metric | 51 mm |
For Pipe Size | 1 1/2 |
Height | 4" |
Thread Length | 2 1/2" |
Weight Capacity | 1,200 lb. |
Center-to-Center | 2 3/8" |
Number of Nuts Included | 2 |
For IMC Conduit Trade Size | 1 1/2 |
For Rigid Conduit Trade Size | 1 1/2 |
Leg Diameter | 11/32" |
Mount Type | Threaded |
Nut | |
Type | Hex |
Material | 316 Stainless Steel |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.2000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles.
316 Stainless Steel— 316 stainless steel U-bolts have excellent corrosion and chemical resistance.
The information in this 3-D model is provided for reference only.
