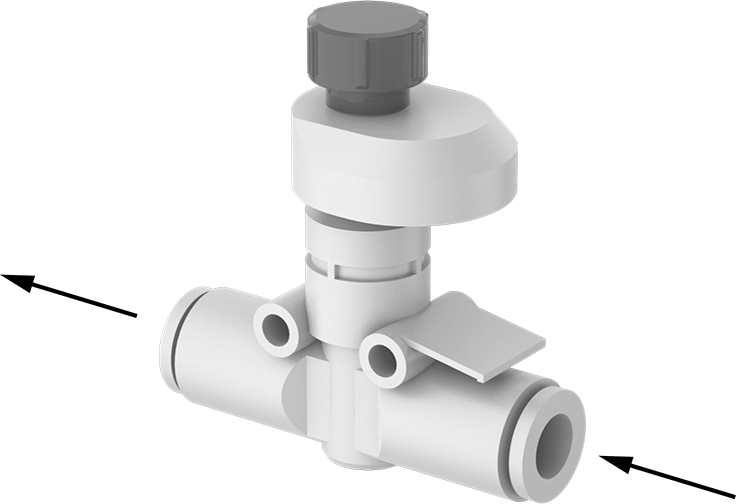

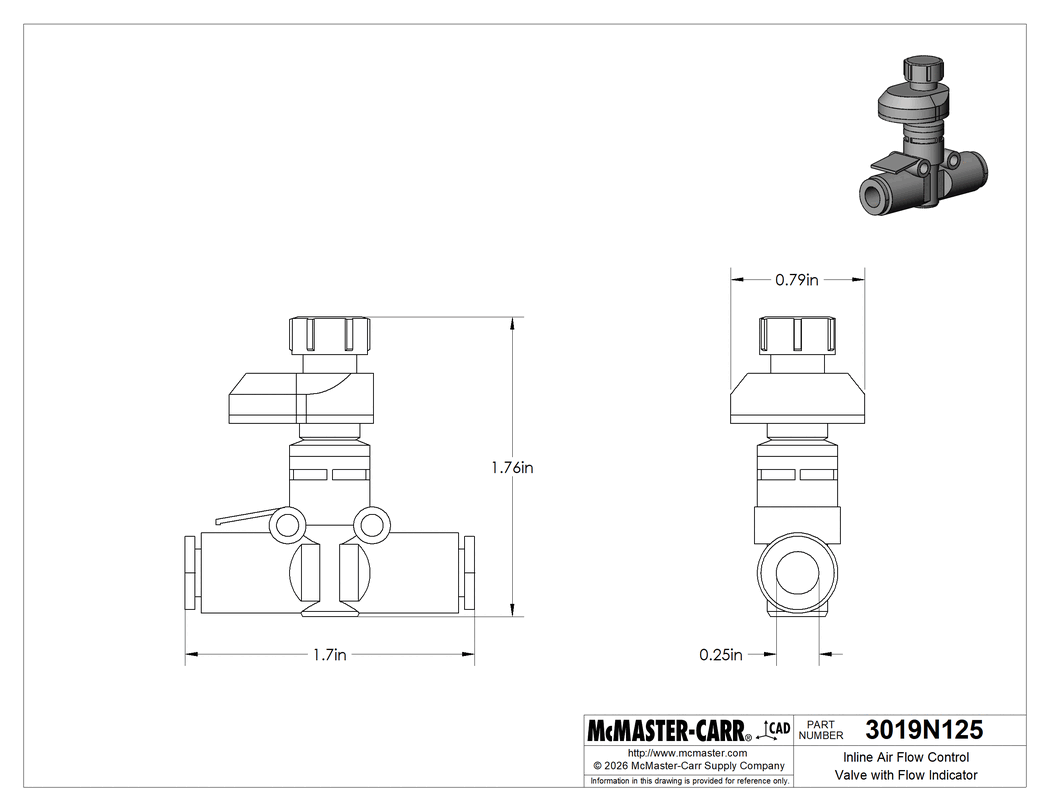

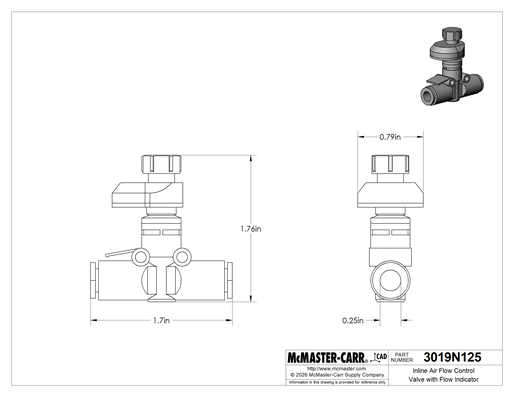

Inline Air Flow Control Valve with Flow Indicator
1/4" Push-to-Connect Female Inlet x Outlet, 0.08 Cv
Inlet | |
Connection Type | Push to Connect |
For Tube OD | 1/4" |
Gender | Female |
Outlet | |
Connection | Push to Connect |
For Tube OD | 1/4" |
Gender | Female |
Body Material | Polybutylene |
Features | Flow Indicator |
Flow Coefficient (Cv) | 0.08 |
Flow Rate @ 73 psi | |
Minimum | 0 scfm |
Maximum | 5.18 scfm |
Maximum Pressure | 145 psi |
Temperature Range | 25° F to 140° F |
Flow Adjustment Mechanism | Dial |
Flow Control Location (ISO Designation) | Exiting Cylinder (Meter Out), Entering Cylinder (Meter In) |
Actuation | Pressure |
Fitting Material | Polybutylene |
Flow Control Type | One Direction |
For Use With | Compressed Air |
Number of Flow Adjustment Increments | 10 |
Number of Ports | |
Flow | 2 |
Inlet | 1 |
Outlet | 1 |
Overall | |
Length | 1 11/16" |
Width | 13/16" |
Height | 1 3/4" |
Shape | Straight |
Valve Function | Flow Adjustment |
Valve Type | Needle |
Country of Origin | India |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848120.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
A flow indicator on these valves provides a relative measure of the air flowing through the valve, from off to full volume, similar to the volume dial on a speaker. The indicator’s numeric increments make it easy to set the valve to the same flow rate with each use. They adjust the volume of airflow to control the speed of air-powered equipment. Valves control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. Typically, valves are installed to control flow as it exits the cylinder (meter out), but they may also be installed to control flow as it enters the cylinder (meter in). Designed to be mounted inline, they can be installed in an easy-to-reach location along your line. For the best control, mount them as close to the cylinder as possible to minimize the length of tubing or piping between the cylinder and the valve.
Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve.
Push-to-Connect Inlet Connection—Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.
Push-to-Connect Outlet Connection—Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.
