Samson Caster with 4-1/2" x 4" Mounting Plate
Swivel with Total Lock and 4" Diameter 60D Durometer Polyurethane Wheel
Nonmarking Wheels | Yes |
Wheel Color | Green |
Wheel Type | Tread on Core |
Hardness Rating | Hard |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake and Swivel Lock (Total Lock) |
Wheel | |
Diameter | 4" |
Width | 1 1/2" |
Number of | 1 |
Mount Height | 5 5/8" |
Weight Capacity per Caster | 600 lb. |
Hardness | Durometer 60D |
Wheel Bearing | |
Type | Roller |
Material | Steel |
Seal Type | Open |
For Screw Size | 3/8" |
Brake | |
Location | Face |
Activation | Foot Pedal |
Caster Swivel Construction | Kingpin |
For Surface Type | Asphalt, Brick, Carpet, Concrete, Hardwood, Linoleum, Steel, Tile |
For Use With | Mild Acids, Mild Alkalis, Solvents, Grease, Oil |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Mount Type | Plate |
Mounting Fasteners Included | No |
Mounting Holes | |
Center-to-Center Length (A) | 3 5/8" |
Center-to-Center Length (B) | 3" |
Center-to-Center Width (A) | 3" |
Center-to-Center Width (B) | 2 5/8" |
Mounting Plate | |
Length | 4 1/2" |
Width | 4" |
Swivel Bearing | |
Type | Ball |
Seal Type | Open |
Construction | Dual Raceway |
Swivel-Lock Activation | Foot Pedal |
Tread Style | Flat |
Wheel Core Material | Aluminum |
Wheel/Tread Material | Polyurethane Rubber |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These are good general purpose casters designed for moderately heavy loads. Wheels have a metal hard core for strength with an abrasion-resistant, nonmarking polyurethane tread. Use them on smooth or rough floors and in areas with debris.
These casters have roller wheel bearings for smooth rolling.
Hard—Hard wheels are impact resistant.
Swivel Casters—Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake and Swivel Lock (Total Lock)—Casters with total lock brake the wheel and lock the swivel with one press of the foot pedal.

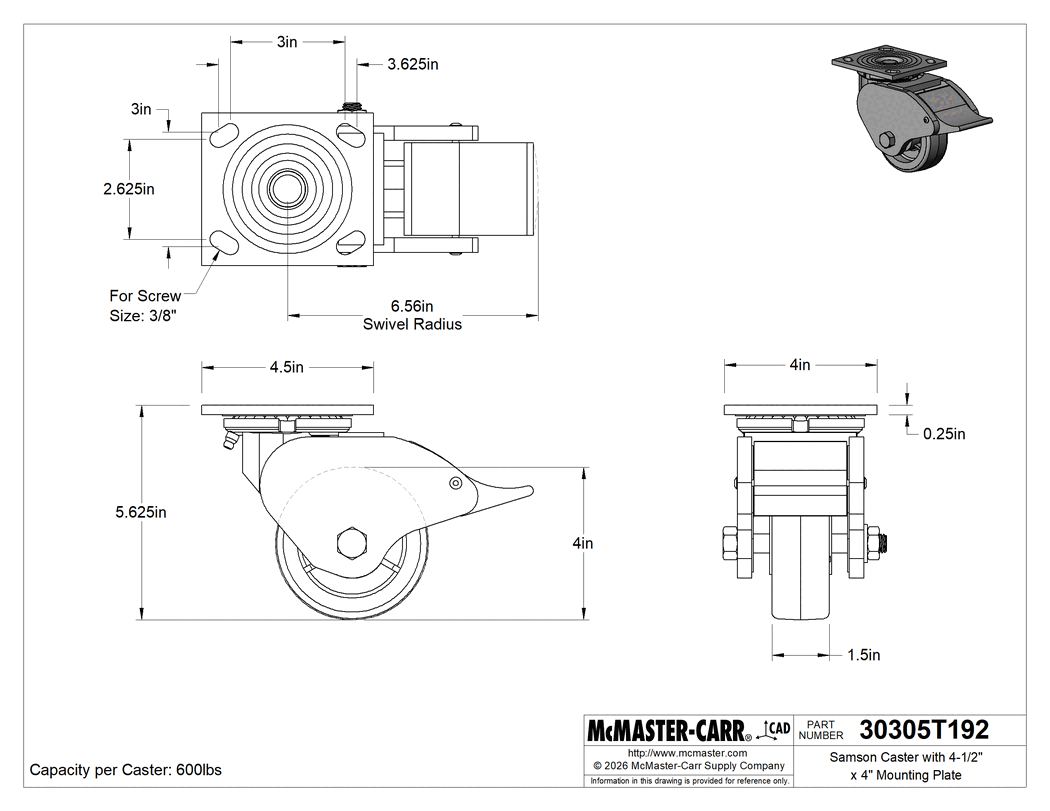

The information in this 3-D model is provided for reference only.
