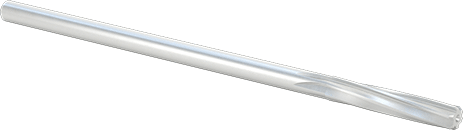

High-Speed Steel Round-Shank Reamer
with Right-Hand Spiral Flute, 0.2188" Reamer Diameter
Sold As | Individual |
Reamer Type | Standard |
Shank Type | Round |
Flute Type | Spiral |
System of Measurement | Inch |
Reamer Diameter | 0.2188" |
Reamer Fractional Size | 7/32" |
Material | High-Speed Steel |
Length | |
Flute | 1 1/4" |
Overall | 5" |
Number of Flutes | 6 |
Spiral Direction | Right Hand |
Cutting Diameter Tolerance | 0" to 0.0002" |
For Use On | Aluminum, Brass, Bronze, Iron, Plastic, Stainless Steel, Steel |
Cutting Direction | Right Hand |
Reamer Operation | Machine |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 820760.0060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Finish holes to precise inch, metric, wire gauge, or letter sizes with these reamers.
Round Shank—These reamers fit in the chuck of drill presses, turret lathes, and other machine and power tools, making them the most common shank type.
Spiral Flute—Since these reamers clear chips better than straight flutes, they leave holes with a smoother finish. They're better for holes with breaks in the surface, such as a keyway, because they cut continuously across the breaks instead of moving in and out.
High-Speed Steel—Durable and wear resistant, these are good for general purpose reaming in most materials.
Right-Hand Spiral—These reamers pull chips upward as they cut, so they're often used in blind holes.
Prepare hole
Align and center

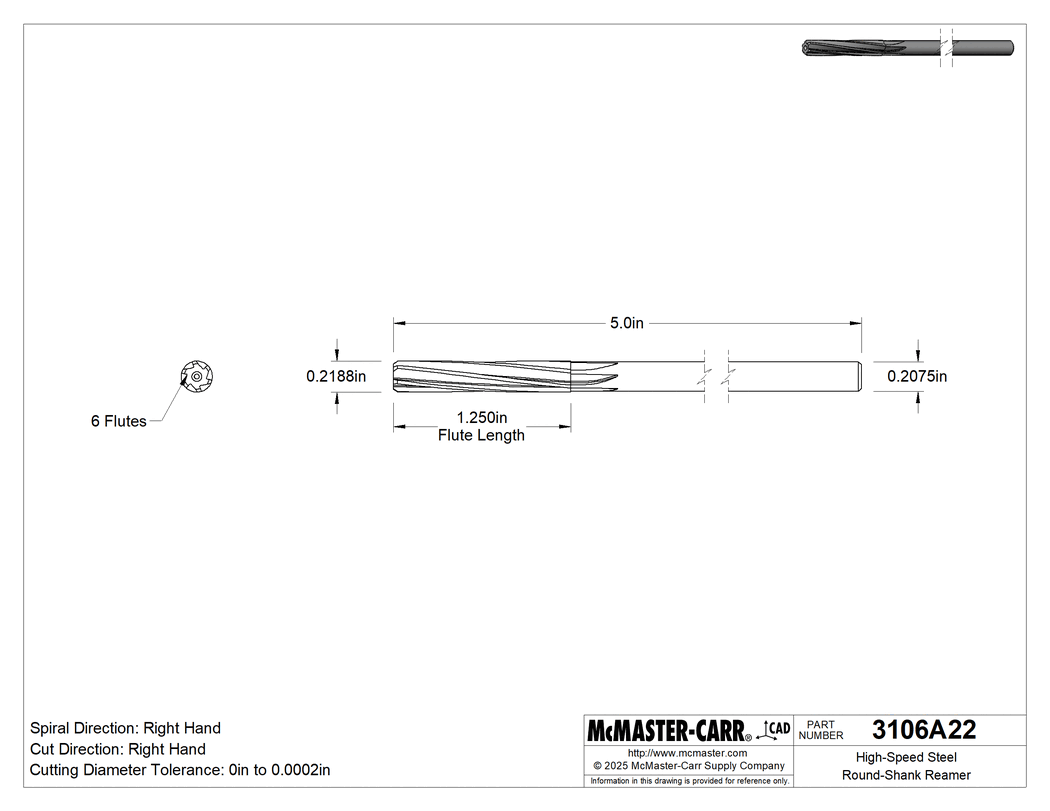

The information in this 3-D model is provided for reference only.
