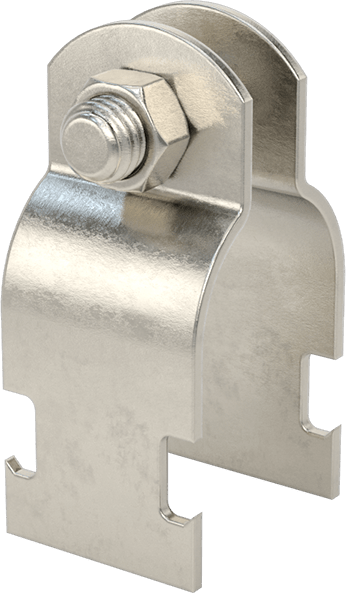

Strut-Mount Metal Routing Clamp
304 Stainless Steel, 1-5/16" ID, 5/64" Thick
Clamp Type | Strap |
Framing Type | Strut Channel |
Strut Channel Framing Component | Routing Clamp |
Material | 304 Stainless Steel |
ID | |
Inch | 1 5/16" |
Metric | 33 mm |
For Pipe Size | 1 |
For Channel Width | 1 5/8" |
Length | 1 7/16" |
Width | 1 1/4" |
Height | 2 7/8" |
Thickness | 5/64" |
Weight Capacity | 600 lb. |
Fasteners Included | Yes |
For IMC Conduit Trade Size | 1 |
For Rigid Conduit Trade Size | 1 |
For Strut Channel Type | Standard, Stacked, Low Profile, High Profile |
Mount Type | Slide In |
Nut Material | 304 Stainless Steel |
Performance | Corrosion Resistant |
Screw Material | 304 Stainless Steel |
System of Measurement | Inch, Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8630 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Run pipe, conduit, and tubing through your facility by attaching it to strut channel. Since you don’t have to drill into beams and walls, it's easy to reconfigure setups as needed. Just slide clamps into the end of channel and tighten the screw.
304 Stainless Steel—The choice for wet and outdoor environments, these resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

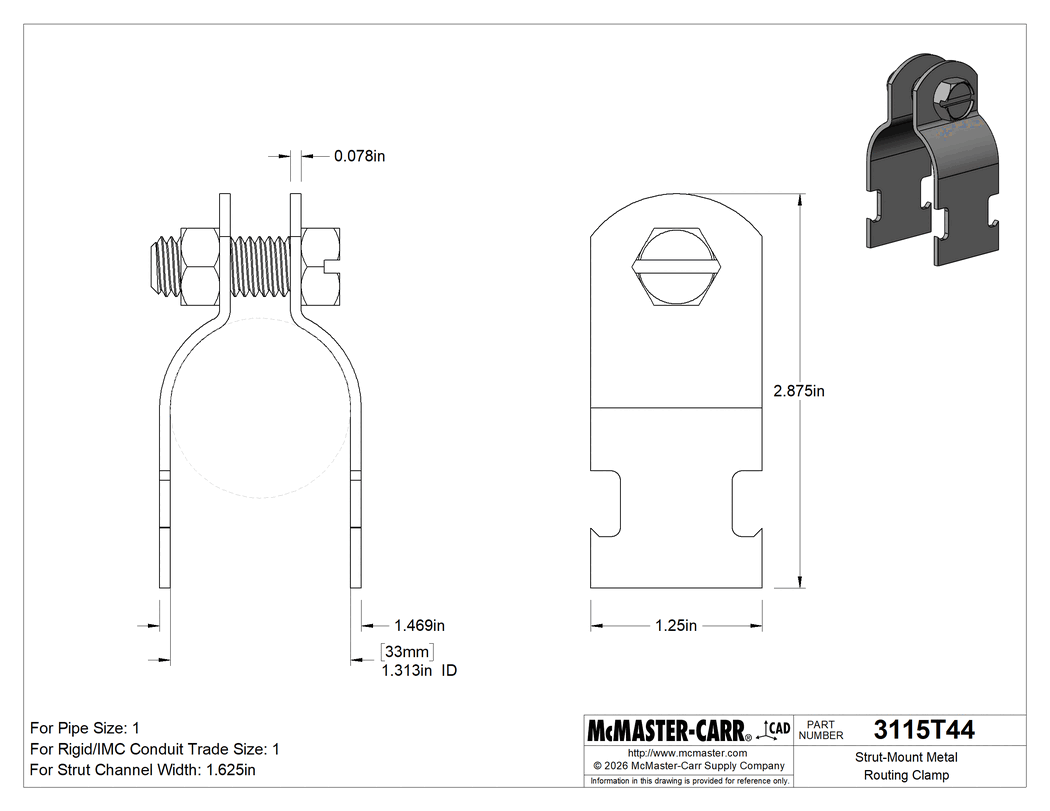

The information in this 3-D model is provided for reference only.
