    Pressure Transmitter

    4-20 mA Output, DIN A Wire Connection, 0-500 PSI

    Image of Product. Top orientation. Pressure Transmitter, 4-20 mA Output, DIN A Wire Connection, 0-500 PSI.

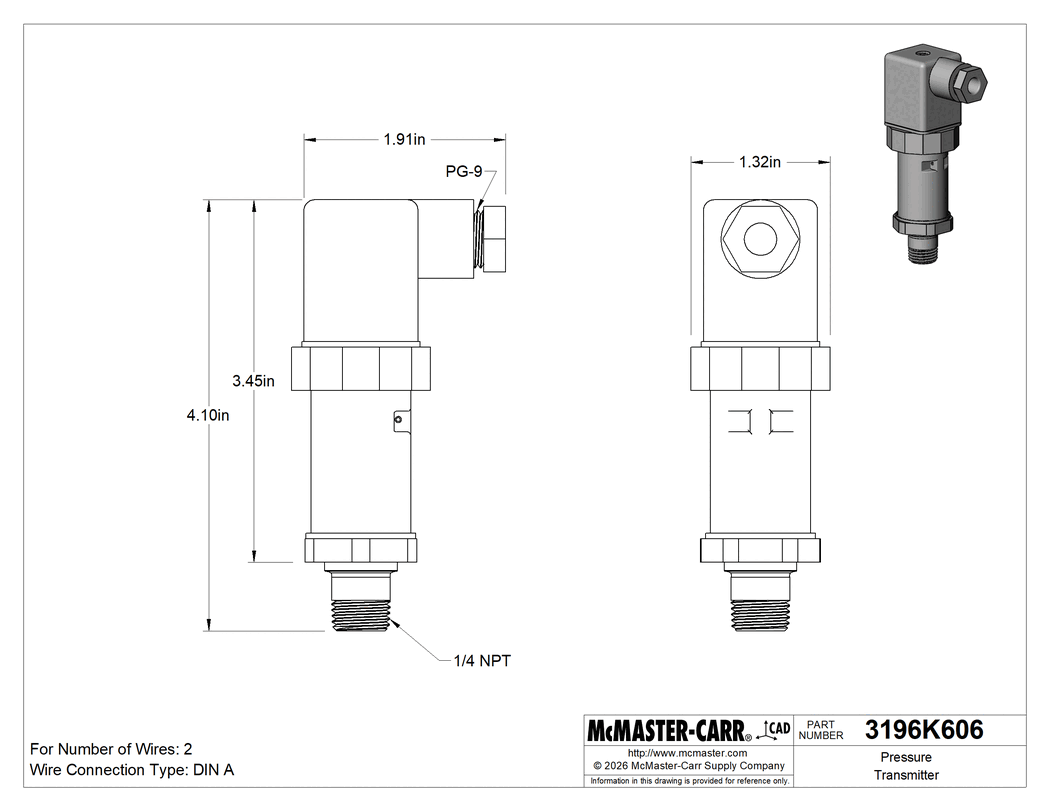

    Technical Drawing of Pressure Transmitter, 4-20 mA Output, DIN A Wire Connection, 0-500 PSI.

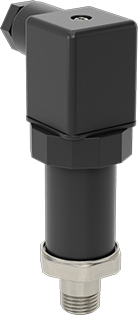

    Image of Product. Bottom orientation. Pressure Transmitter, 4-20 mA Output, DIN A Wire Connection, 0-500 PSI.

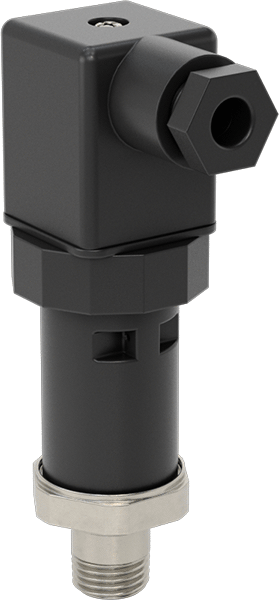

    Image of Product. Side1 orientation. Contains SizingReference. Pressure Transmitter, 4-20 mA Output, DIN A Wire Connection, 0-500 PSI.
    2-D PDF
    0000000 each
    3196K606
    In stock
    3196K606
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Output Analog Signal

    4 mA to 20 mA

    Electrical Connection

    DIN A

    Electrical Connection Type

    Hardwire

    Pipe Size

    1/4

    Thread Type

    NPT

    Gender

    Male

    Fitting Connection

    Threaded

    Connects To

    Pipe

    Pressure Range

    0 psi to 500 psi

    Maximum Continuous Pressure

    500 psi

    Maximum Short-Term Pressure

    1,000 psi

    Input Voltage

    9V DC to 36V DC

    Electrical Connection Thread Size

    PG-9

    Height

    3 7/16"

    Width

    1 5/16"

    Enclosure Rating

    IP65, NEMA 4X

    Certification

    UL Recognized Component, C-UL Recognized Component, CE Marked

    For Use With

    Air
    Argon
    Diesel Fuel
    Gasoline
    Hydraulic Fluid
    Nitrogen
    Water

    Accuracy

    ±1.0%

    Housing Material

    Glass-Filled Nylon

    Connection Material

    304 Stainless Steel

    Temperature Range

    -40° F to 255° F

    Electrical Connection Thread Type

    PG

    Environment

    Corrosive, Dusty, Outdoor, Washdown, Wet

    For Number of Wires

    2

    Measurement Unit

    Pounds per Square Inch

    Measures

    Pressure

    Response Time

    0.001 sec.

    UL File Number

    E363562

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    902620.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Remotely monitor pressure in general purpose applications such as pumping and compressing systems. These transmitters, also known as transducers, convert pressure to an electrical signal that can be interpreted by receiving devices, such as remote displays, programmable logic controllers, and motor speed controls. For your receiving device to interpret the signal from the transmitter, you will need to calibrate it for the transmitter's pressure range and output signal. As pressure increases, the output signal from the transmitter will increase. Transmitters will only provide accurate readings within the rated pressure range.

    Transmitters are rated NEMA 4X and IP65 or IP67 and are good for washdown and corrosive environments.

    4 mA to 20 mA Output Signal—Transmitters with output current connect using two wires. The same wire is used to send a signal to the receiver and to power the transmitter. Current doesn’t lose signal over long distances and isn’t affected by electrical interference from other devices.
