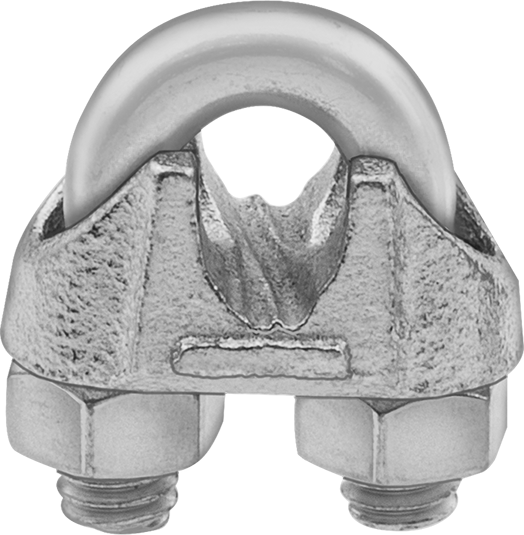

18-8 Stainless Steel Cast Wire Rope Clamp
for 1/4" Rope Diameter - Not for Lifting
Material | 18-8 Stainless Steel |
For Wire Rope | |
Diameter | 1/4" |
Construction | 1 × 19 Strand Core |
Number of Clamps Required | 2 |
Rope Turnback | 4 3/4" |
Clamp | |
Width | 1 1/16" |
Height | 1 3/8" |
Thickness | 7/8" |
Fabrication | Cast |
Required Torque | 8 ft·lbf |
Rope Capacity Adjustment Factor | 80% |
Application | Not for Lifting |
Attachment Type | Loop |
Fitting Type | Rope Clamp |
Required Installation Tool | Torque Wrench |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use in noncritical applications, such as fencing, where the strength of a forged clamp is not required. Install clamps so the saddle is on the long (live) end and the U-bolt is on the short (dead) end. They’re also known as wire rope clips.
Warning: Test all assemblies for required strength before use. Do not use with coated rope unless the coating is removed.
18-8 Stainless Steel—18-8 stainless steel clamps are more corrosion resistant than galvanized clamps.
