    Harsh Environment Mini Connector

    Socket with Internal Thread, 4 Poles, 12 Feet Long Cable

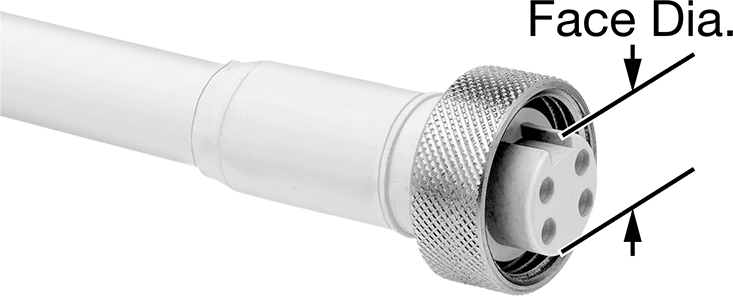

    Image of Product. Front orientation. Contains Annotated. Harsh Environment Mini Connector, Socket with Internal Thread, 4 Poles, 12 Feet Long Cable.

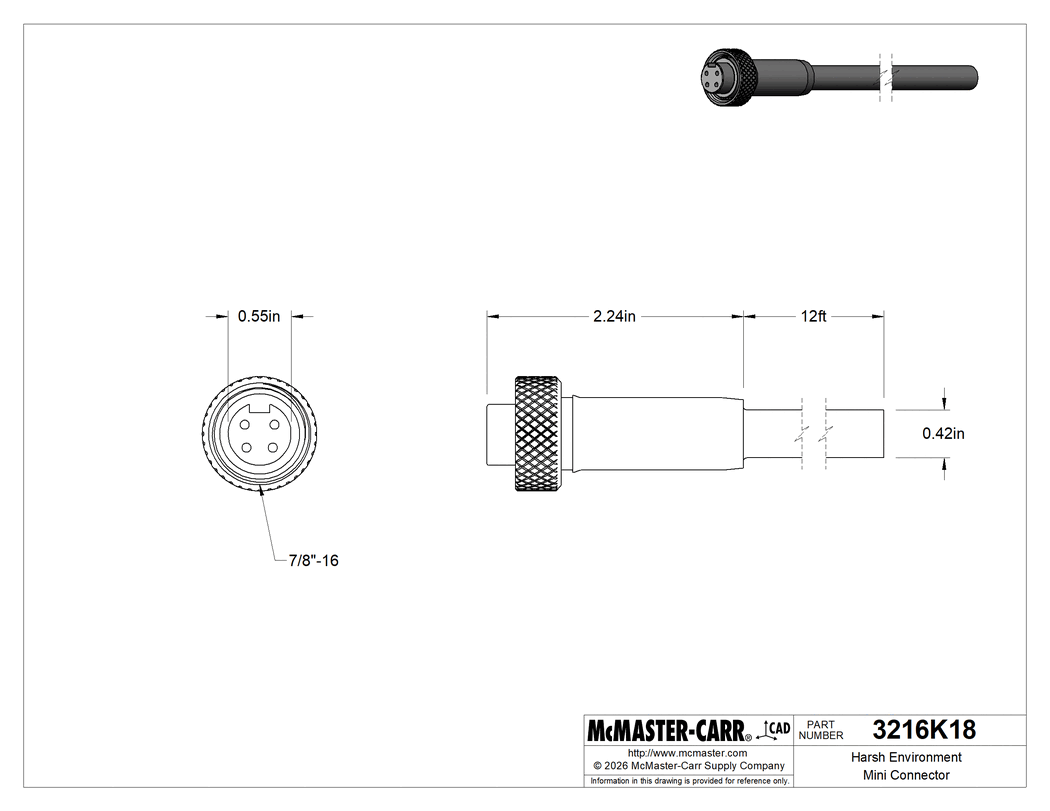

    Technical Drawing of Harsh Environment Mini Connector, Socket with Internal Thread, 4 Poles, 12 Feet Long Cable.
    Image of Specification. Front orientation. Harsh Environment Mini Connector, Socket with Internal Thread, 4 Poles, 12 Feet Long Cable.
    Image of Specification. Front orientation. Contains Annotated. Harsh Environment Mini Connector, Socket with Internal Thread, 4 Poles, 12 Feet Long Cable.
    2-D PDF
    000000 each
    3216K18
    In stock
    3216K18
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Socket

    Electrical Connection

    M22

    End Shape

    Straight

    Gender

    Female

    Housing Connection Method

    Screw Together

    Housing Thread Location

    Internal

    Housing Thread Size

    7/8"-16

    Housing Thread Type

    UNS

    Wire Connection

    Wire Leads

    Cable Lead Length

    12 ft.

    Number of Poles

    4

    Face Diameter

    0.55"

    Current

    10 amp

    Voltage

    600V AC/600V DC

    Wire Lead Gauge (AWG)

    16

    Cable OD

    0.42"

    Cable Outer Jacket Material

    TPE

    Color

    Yellow

    Housing Material

    Plastic

    Maximum Temperature

    190° F

    Enclosure Rating

    IP67, NEMA 6P

    Certification

    UL Recognized Component, C-UL Recognized Component

    Cable Color

    Yellow

    Environment

    Corrosive, Dusty, Harsh, Outdoor, Submersible, Washdown, Wet

    Signal Type

    Control, Power

    Wire Lead Color

    Black, Green, Red, White

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    853669.4020

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Often used for automated systems, motors, and pumps in tough industrial areas such as near welding and metal machining, these cords carry higher current than M5, M8, and M12 cords. The TPE cord insulation won’t pit or crack from water, chemicals, oil, coolant, or weld slag. The cable is also flexible enough to use in applications that require motion, like robotics. A threaded housing securely mates with other mini connections and won’t shake loose from vibration. They have a standard pole layout and housing thread size to reduce the chance you’ll mis-mate connectors. These cords are unshielded, so choose them when signal interference is not a concern.

    When mated, these cords meet IP67 and NEMA 6P for protection against dust, washdowns, temporary submersion, and weather.
