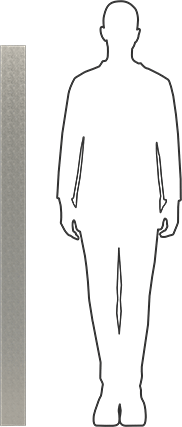

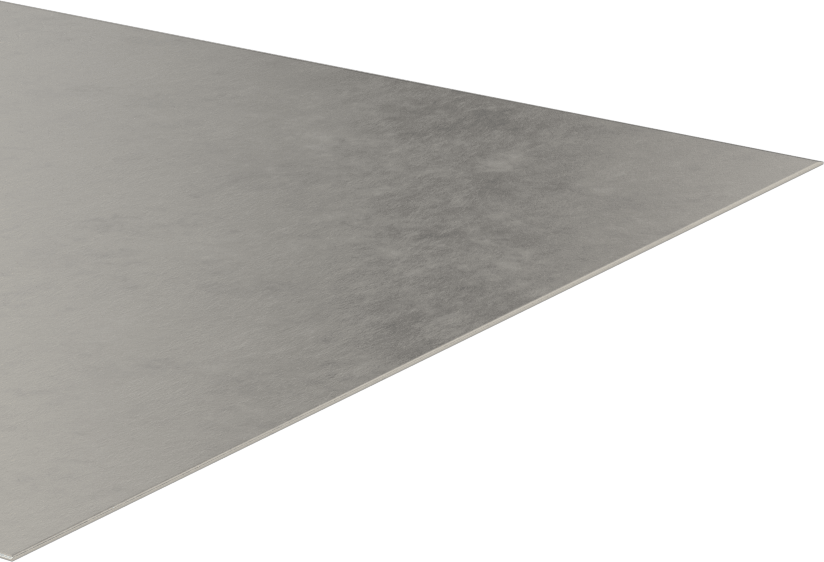

High-Strength 17-4 PH Stainless Steel Strip
4" x 60", 0.008" Thick
Material | 17-4 PH Stainless Steel |
Thickness | 0.008" |
Thickness Tolerance | -0.0004" to 0.0004" |
Width | 4" |
Width Tolerance | -0.01" to 0.01" |
Length | 60" |
Length Tolerance | -0.015" to 0.015" |
Fabrication | Cold Worked |
Hardness | Rockwell C30 (Hard) |
Maximum Hardness After Heat Treatment | Rockwell C48 |
Specifications Met | ASTM A693 |
Appearance | Plain |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Elongation | 10% |
Flatness Tolerance | Not Rated |
Heat Treatable | Yes |
Heat Treatment | Annealed |
Shape | Foil, Strip |
Tolerance Rating | Standard |
Magnetic Properties | Magnetic |
Material Composition | |
Carbon | 0% to 0.07% |
Chromium | 15% to 17.5% |
Columbium | 0% to 0.45% |
Copper | 0% to 5% |
Iron | 68.99% to 82% |
Manganese | 0% to 1% |
Molybdenum | 0% to 0.5% |
Nickel | 3% to 5% |
Phosphorus | 0% to 0.04% |
Silicon | 0% to 1% |
Sulfur | 0% to 0.005% |
Tantalum | 0% to 0.45% |
Maximum Temperature | 1,100° F |
Minimum Temperature | Not Rated |
Performance | Corrosion Resistant, Chemical Resistant, Extreme Strength, Wear Resistant, Heat Treatable |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Yield Strength | 145,000 psi |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7008), Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 722090.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
17-4 PH Stainless Steel—17-4 PH has almost double the strength of 304 and roughly the same corrosion resistance. It is also known as 630 stainless steel. This material maintains its corrosion resistance in temperatures up to 1100° F.

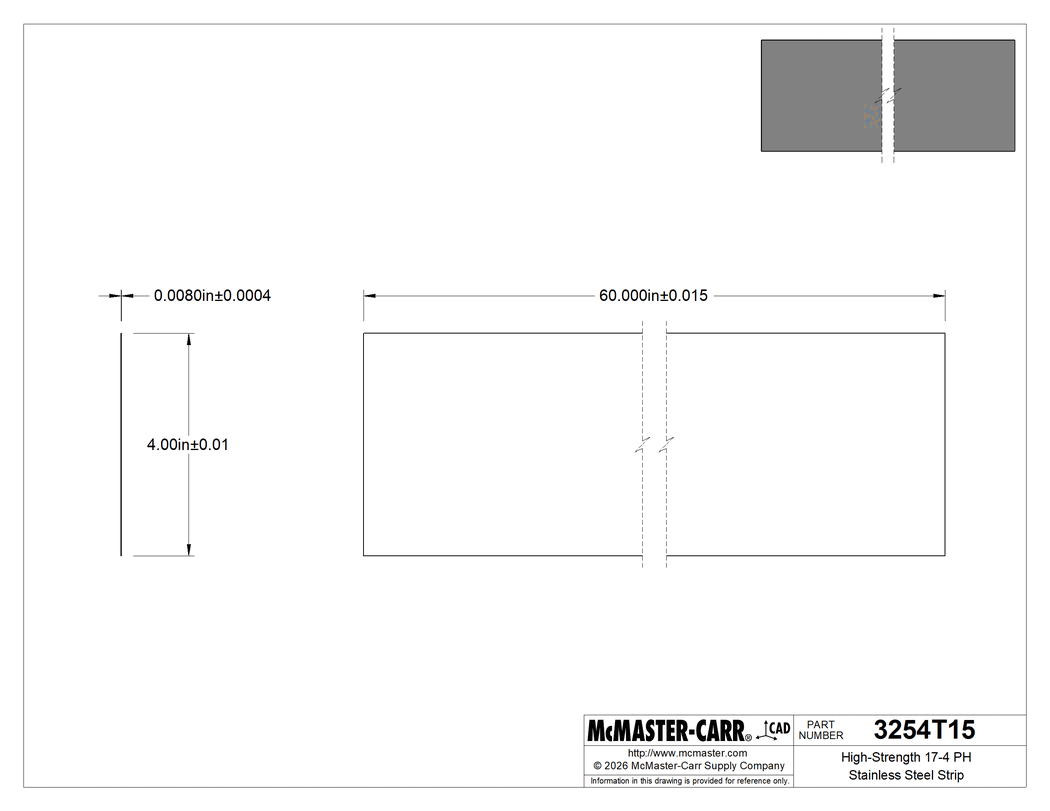

The information in this 3-D model is provided for reference only.
