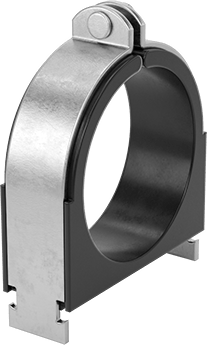

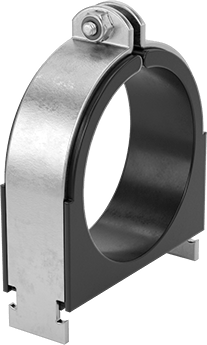

Strut-Mount Vibration-Damping Routing Clamp
with TPE Rubber Cushion, 316 Stainless Steel, 3-5/8" ID
Clamp Type | Strap |
Framing Type | Strut Channel |
Strut Channel Framing Component | Routing Clamp |
Material | 316 Stainless Steel |
Cushion Material | TPE |
ID | |
Inch | 3 5/8" |
Metric | 92 mm |
For Pipe Size | 3 |
For Channel Width | 1 5/8" |
Length | 4 1/2" |
Width | 1 1/4" |
Height | 5 5/8" |
Center Height | 2 1/16" |
Thickness | 1/8" |
Weight Capacity | Not Rated |
Temperature | -50° F to 270° F |
Flammability Rating | UL 2043 |
Cushion Color | Black |
Fasteners Included | Yes |
For Copper Tube Size | 3 1/2 |
For EMT Conduit Trade Size | 3 |
For Rigid Conduit Trade Size | 3 |
For Strut Channel Type | Standard, Stacked, Low Profile, High Profile |
Mount Type | Slide In |
Nut Material | 316 Stainless Steel |
Performance | Corrosion Resistant, Low Smoke, Vibration Damping |
Screw Material | 316 Stainless Steel |
System of Measurement | Inch, Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8630 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Absorb shock and muffle noise from rattling pipes. The cushion inside these clamps reduces vibration to extend the life of your pipe, tubing, and conduit. Slide clamps into your strut channel and tighten the nut to secure. Since you don’t have to drill into beams and walls, it's easy to reconfigure setups as needed.
316 Stainless Steel—The choice for wet environments, these clamps resist rust.
Flammability Rating—UL 2043 certified to generate minimal smoke in the event of a fire. These are a good choice for spaces that could spread smoke through your HVAC system, such as air intakes and ducts.

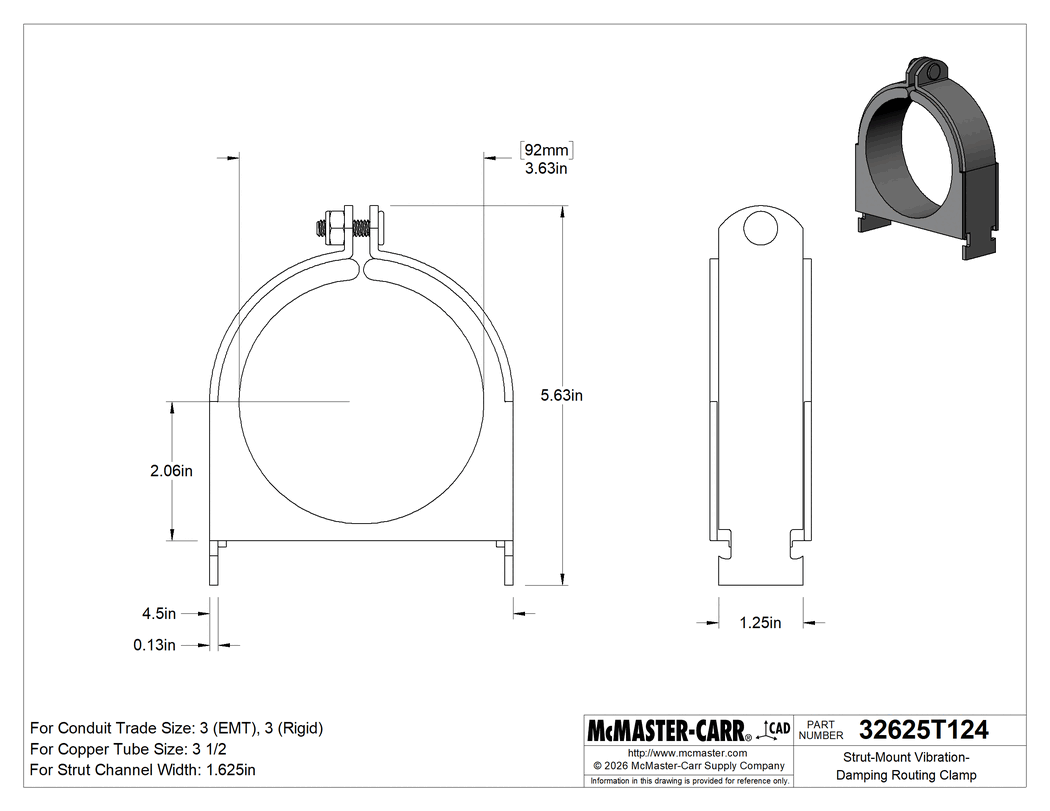

The information in this 3-D model is provided for reference only.
