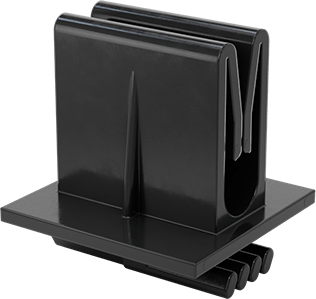

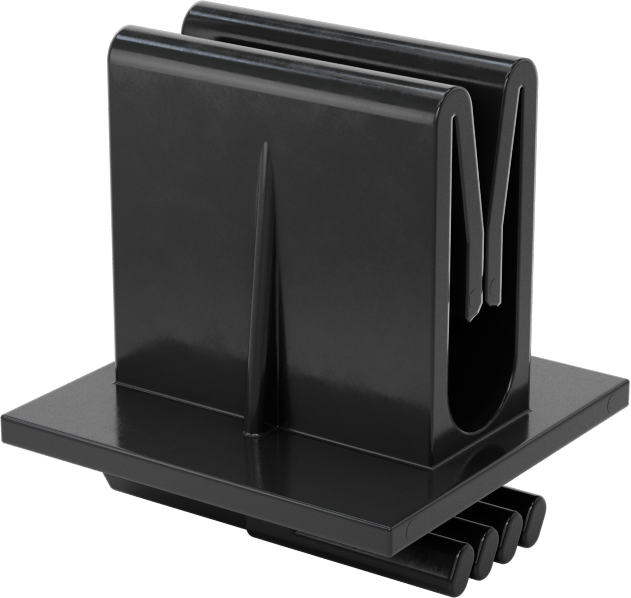

Strut-Mount Vibration-Damping Routing Clamp
TPE Rubber, 3/8" ID

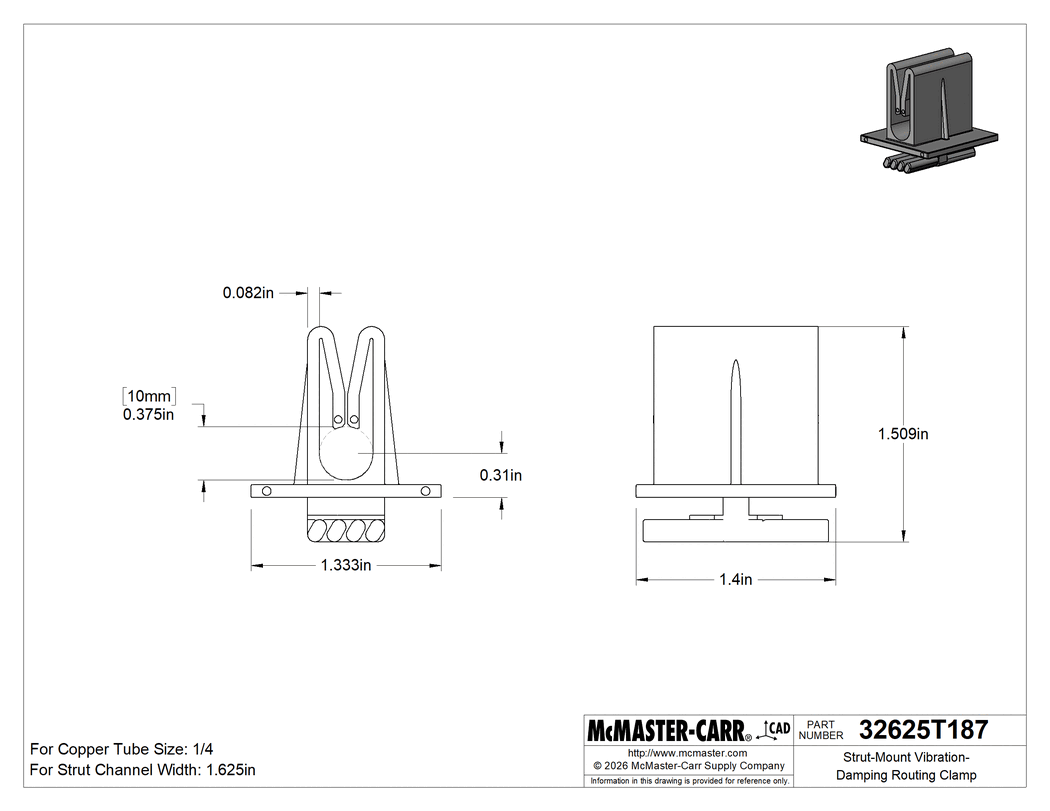

2-D PDF
00000 each
32625T187
In stock
32625T187
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Clamp Type | Snap In |
Framing Type | Strut Channel |
Strut Channel Framing Component | Routing Clamp |
Material | TPE |
Color | Black |
ID | |
Inch | 3/8" |
Metric | 10 mm |
For Channel Width | 1 5/8" |
Length | 1 5/16" |
Width | 1 3/8" |
Height | 1 1/2" |
Center Height | 5/16" |
Thickness | 5/64" |
Weight Capacity | 75 lb. |
Temperature | -50° F to 275° F |
For Copper Tube Size | 1/4 |
For Strut Channel Type | Standard, Stacked, Low Profile, High Profile |
Mount Type | Slide In |
Performance | Vibration Damping |
Specs. Met | UL 2034 |
System of Measurement | Inch, Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8630 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Install these clamps once, then snap pipes in and out without having to loosen any fasteners. Clamps are made of flexible TPE rubber that absorbs vibration to extend the life of your pipe, tube, and conduit. More economical than our other routing clamps, use them for drain lines or light duty runs of pipe and tubing for air.
Compatible Products for This Strut Channel Routing Clamp
The information in this 3-D model is provided for reference only.
