    Steel Sight for Clear Liquid

    1-1/2 NPT Male

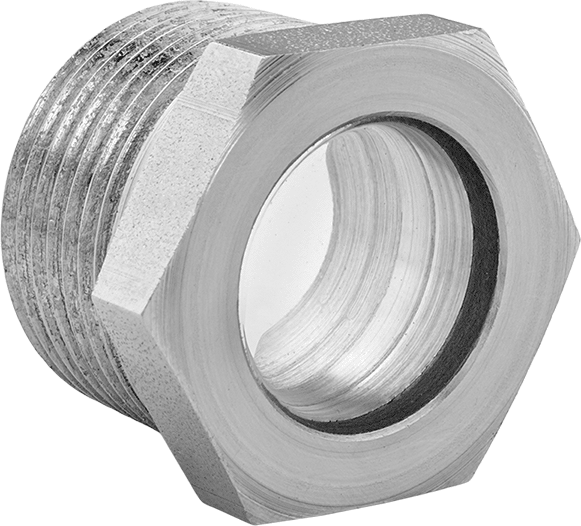

    Image of Product. Front orientation. Steel Sight for Clear Liquid, 1-1/2 NPT Male.

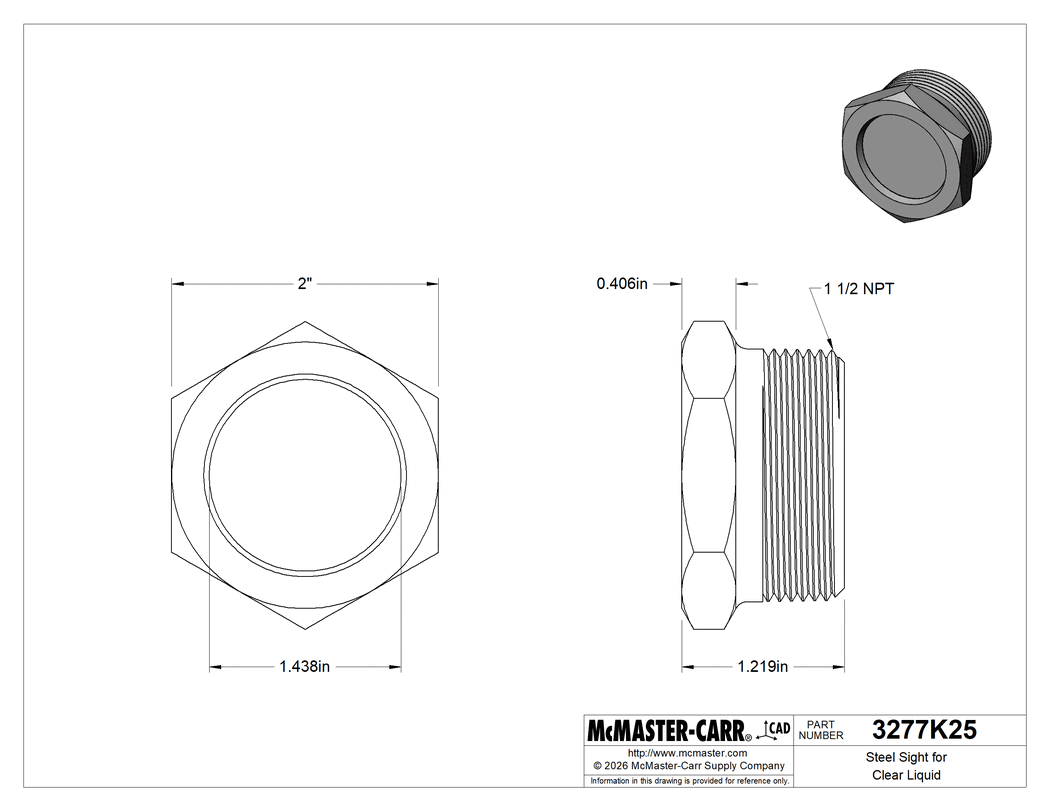

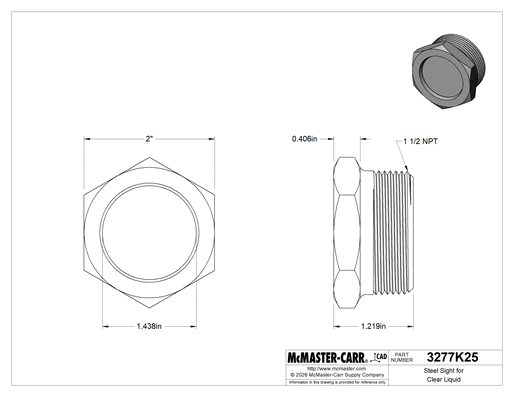

    Technical Drawing of Steel Sight for Clear Liquid, 1-1/2 NPT Male.
    2-D PDF
    000000 each
    3277K25
    In stock
    3277K25
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Steel

    Window

    Diameter

    1 1/2"

    Material

    Glass

    Thread Type

    NPT

    Gender

    Male

    Features

    Fused Window

    For Liquid Appearance

    Clear

    Pipe Size

    1 1/2

    Hex Size

    2"

    Maximum Pressure @ Temperature

    125 psi @ 70° F

    Temperature Range

    -40° F to 250° F

    For Use With

    Water, Hydraulic Fluid, Diesel Fuel

    Connection

    Connects To

    Pipe

    Fitting Connection

    Threaded

    Mount Type

    Screw In

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    702000.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These sights have a glass window. Screw them into threaded holes on tanks, gear cases, bearing housings, and mixers to see inside.

    The information in this 3-D model is provided for reference only.
