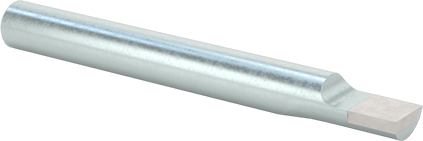

Boring Lathe Tool
Round Shank, 3/8" Minimum Hole Diameter, 3-1/2" Overall Length
Cut Type | Boring |
Cutting Direction | Neutral |
Material | Micrograin Carbide |
Shank | |
Material | Steel |
Type | Round |
Diameter | 3/8" |
Minimum Hole Diameter | 3/8" |
Maximum Hole Depth | 2 1/2" |
Overall Length | 3 1/2" |
Side Cutting Edge Angle | 0° |
End Cutting Edge Angle | 0° |
Tip | |
Width | 3/8" |
Length | 3/8" |
Thickness | 3/32" |
For Use On | Aluminum, Brass, Bronze, Nickel, Stainless Steel, Steel, Titanium |
Manufacturer | Micro 100 |
Back Rake Angle | 0° |
End Relief Angle | 6° |
Side Rake Angle | 0° |
Side Relief Angle | 10° |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820760.0060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The long steel shank on these tools can reach farther inside the workpiece than standard boring tools and can be cut to length depending on the depth of the hole. Use them to enlarge existing holes to precise diameters.
Neutral Cutting Direction— Neutral tools can be used when the workpiece is rotating in either direction.
Micrograin Carbide—Tips are micrograin carbide, which outperform C2 and C6 carbide tips when cutting difficult-to-machine metal, such as stainless steel or titanium. They provide a good finish on most materials.

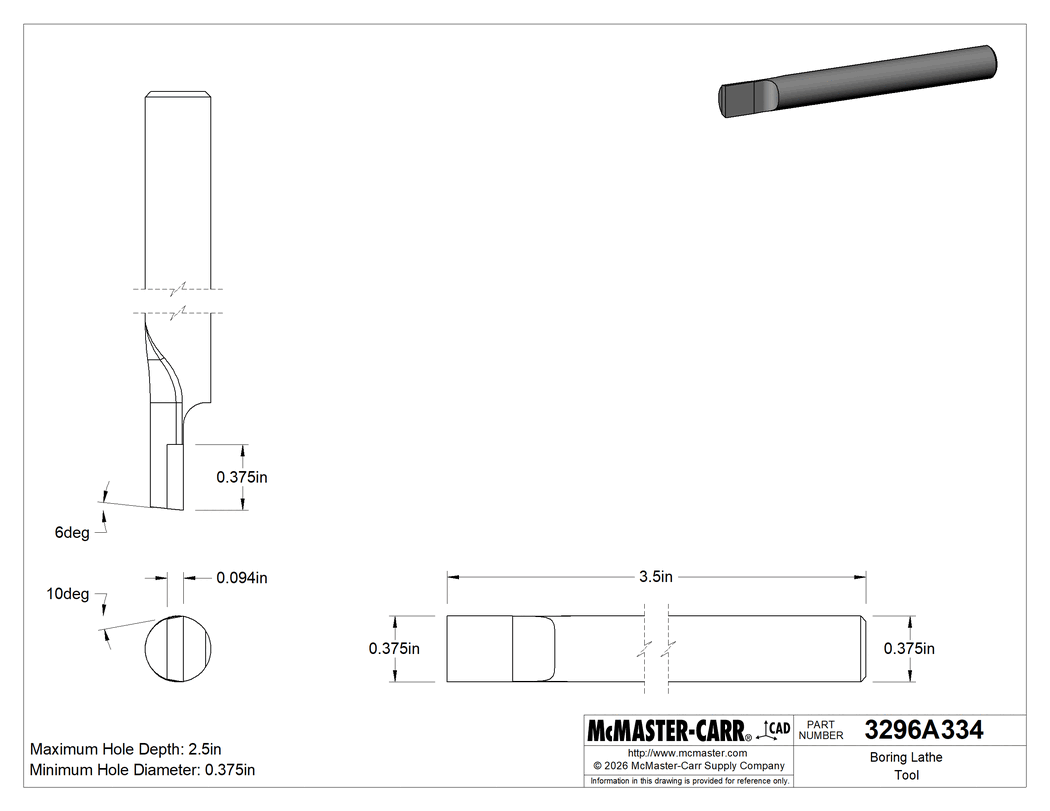

The information in this 3-D model is provided for reference only.
