    Strut Channel Bracket

    Triple 90 Degree, Galvanized Steel, 9-5/32" Length

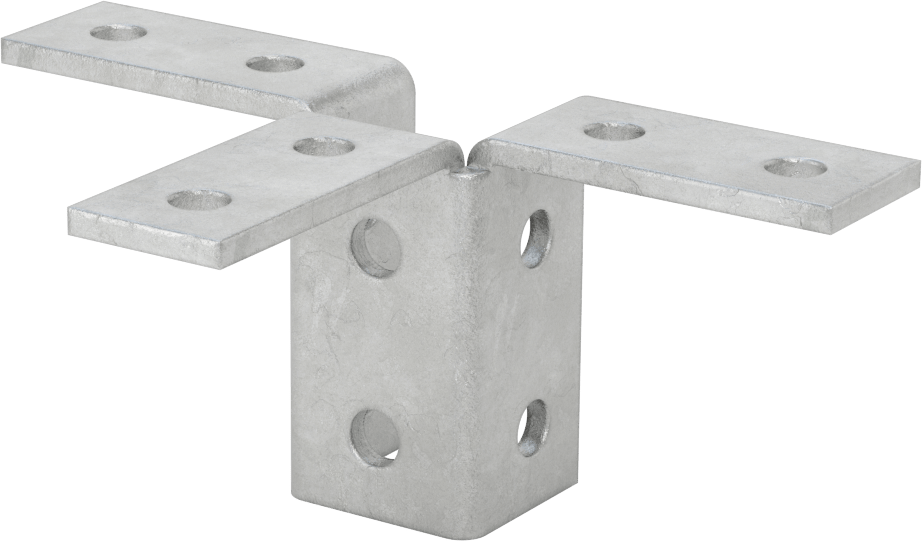

    Image of Product. Front orientation. Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .

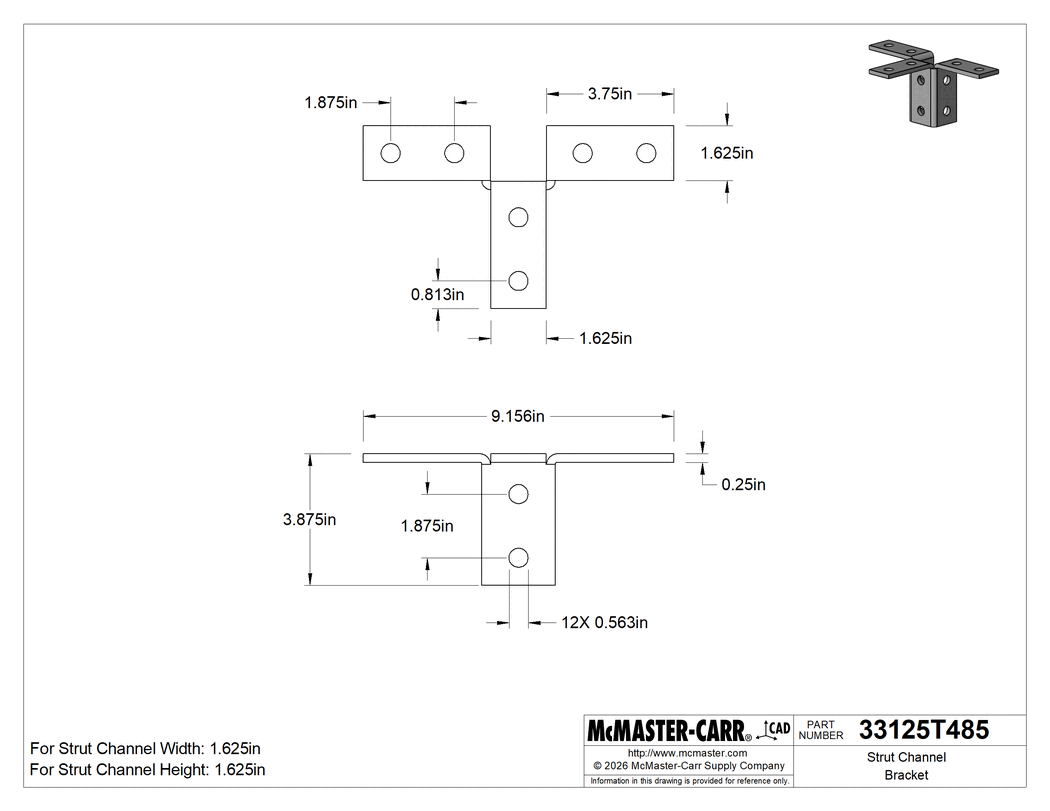

    Technical Drawing of Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .

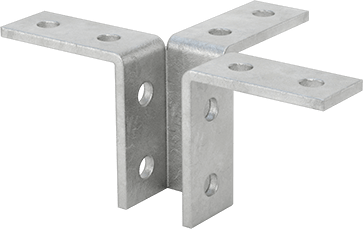

    Image of Product. Back orientation. Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .

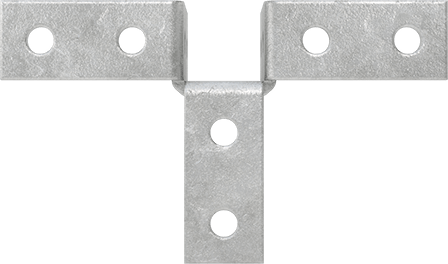

    Image of Product. Top orientation. Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .

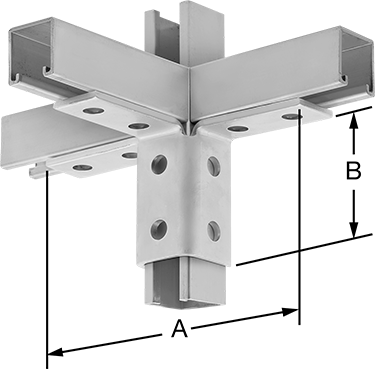

    Image of ProductInUse. Front orientation. Contains Annotated. Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .
    Image of Product. Side1 orientation. Contains SizingReference. Strut Channel Bracket, Triple 90 Degree, Galvanized Steel, 9-5/32" Length .
    2-D PDF
    000000 each
    33125T485
    In stock
    33125T485
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Bracket Type

    Wraparound

    Framing Type

    Strut Channel

    Strut Channel Framing Component

    Bracket

    For Channel

    Height

    1 5/8"

    Width

    1 5/8"

    Material

    Galvanized Steel

    Shape

    90° Angle

    Length

    (A)

    9 5/32"

    (B)

    3 7/8"

    Thickness

    1/4"

    Hole Diameter

    9/16"

    Fasteners Included

    No

    For Strut Channel Type

    Standard

    Performance

    Corrosion Resistant

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    732690.8695

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    For the strongest connections, these brackets surround strut channel on three sides. They reduce the likelihood of bending, twisting, and swaying at joints.

    Galvanized Steel—An economical alternative to stainless steel, these withstand wet and outdoor environments. However, they won't hold up to salt water and chemicals.
