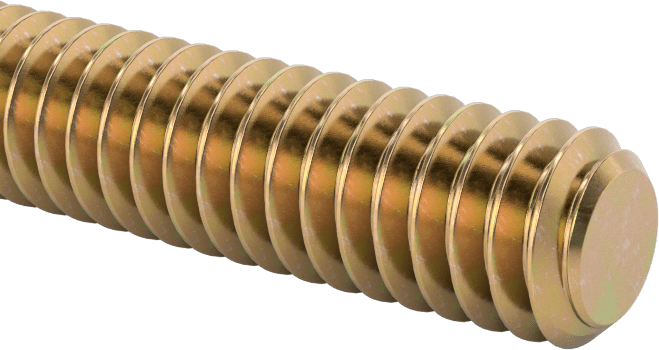

High-Strength Steel Threaded Rod
Zinc-Yellow-Chromate Plated, 1/4"-20 Thread Size, 2 Feet Long
Thread Direction | Right Hand |
Fastener Strength Rating | High |
Thread Size | 1/4"-20 |
Length | 2 ft. |
Tensile Strength | 150,000 psi |
Fastener Strength Grade/Class | ASTM Grade BD |
Hardness | Rockwell C33 |
Specifications Met | ASTM A354 Grade BD |
Finish | Zinc Yellow-Chromate Plated |
Material | Steel |
System of Measurement | Inch |
Thread Fit | Unified Standard Class 2A |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | China |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Anchor, connect, or hang components in a wide variety of applications, from mounting I-beams to suspending light fixtures.
High-Strength Steel—With a tensile strength of 150,000 psi, these rods are strong enough to stabilize steel frameworks and structural supports, such as I-beams. They are about 25% stronger than medium-strength steel rods. To avoid stripped threads during installation, make sure your nuts are also high-strength steel.
Zinc-Yellow-Chromate-Plated Steel—The most common choice for areas with occasional exposure to moisture.

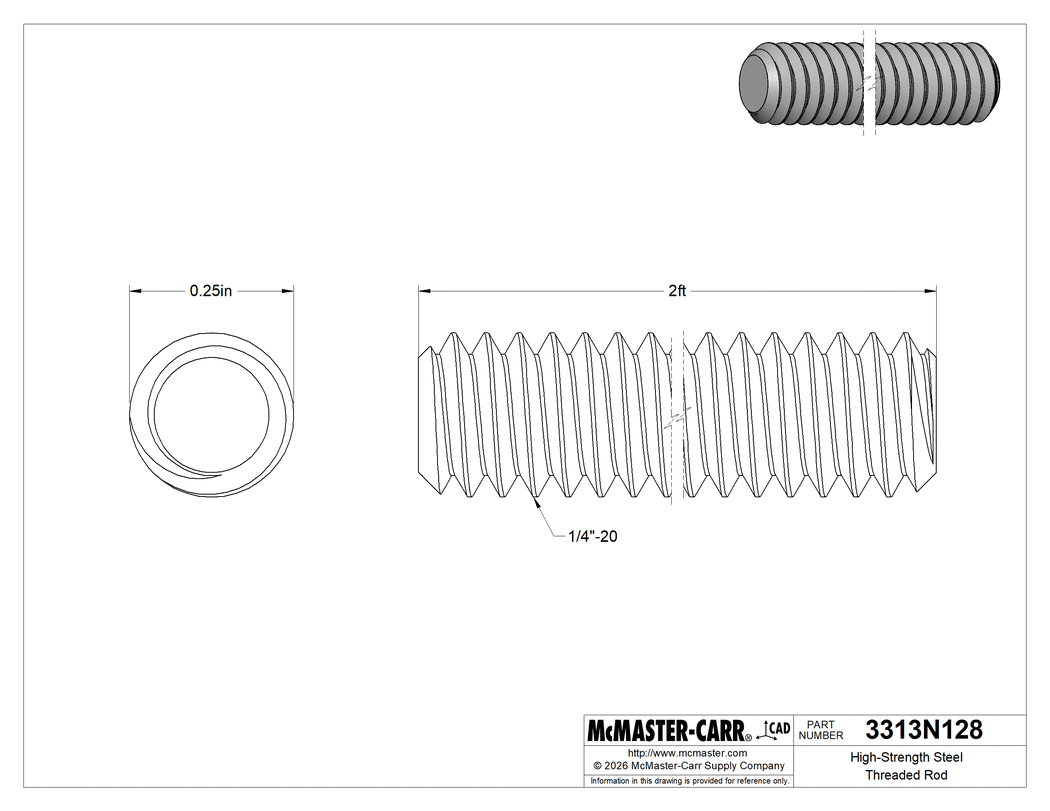

The information in this 3-D model is provided for reference only.
