    Carbide-Tipped Lathe Tool

    Neutral, C5 Carbide, E-4 Tool Bit Code, 1/4" Square Shank

    Image of Product. Top orientation. Carbide-Tipped Lathe Tool, Neutral, C5 Carbide, E-4 Tool Bit Code, 1/4" Square Shank.

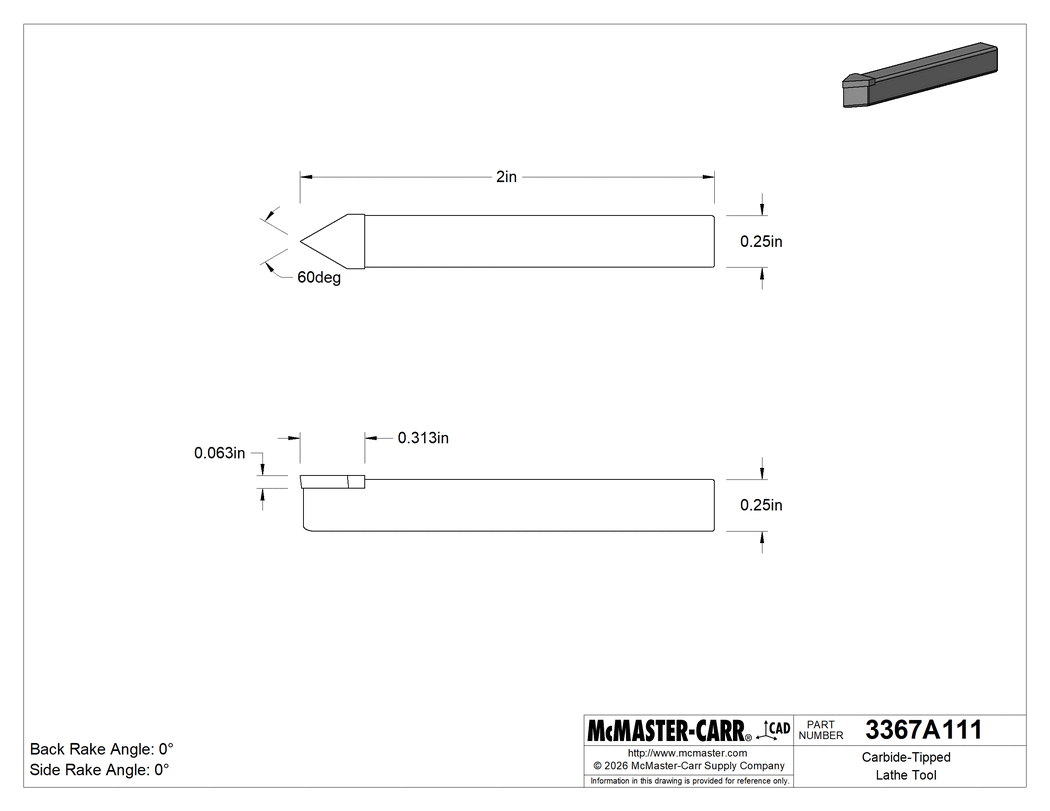

    Technical Drawing of Carbide-Tipped Lathe Tool, Neutral, C5 Carbide, E-4 Tool Bit Code, 1/4" Square Shank.

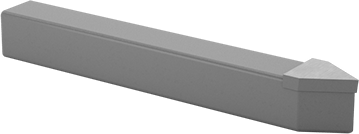

    Image of Product. Front orientation. Carbide-Tipped Lathe Tool, Neutral, C5 Carbide, E-4 Tool Bit Code, 1/4" Square Shank.

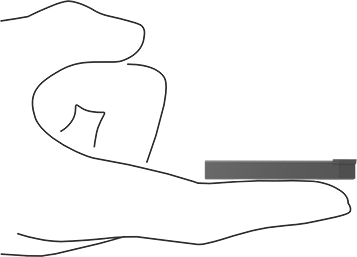

    Image of Product. Side1 orientation. Contains SizingReference. Carbide-Tipped Lathe Tool, Neutral, C5 Carbide, E-4 Tool Bit Code, 1/4" Square Shank.
    2-D PDF
    00000 each
    3367A111
    In stock
    3367A111
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Cut Type

    External Threading

    Cutting Direction

    Neutral

    Material

    C5 Carbide

    Tool Bit

    Style

    E

    Code

    E-4

    Shank

    Material

    Steel

    Type

    Square

    Width

    1/4"

    Height

    1/4"

    Thread

    Direction

    Left Hand, Right Hand

    Type

    UNC, UNF, UNS

    Shape

    V

    Overall Length

    2"

    Nose Angle

    60°

    Tip

    Length

    5/16"

    Thickness

    1/16"

    For Use On

    Aluminum, Brass, Bronze, Cast Iron, Nickel, Stainless Steel, Steel, Titanium

    Back Rake Angle

    0°

    Side Rake Angle

    0°

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820780.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    The carbide tip brazed onto the ground steel shank of these tools is more wear resistant than high-speed steel tips. Right-handed tools cut from right to left, left-handed tools cut from left to right, and neutral tools can cut in either direction.

    C5 Carbide—C5 carbide tips perform better than C2 carbide tips when making cuts in steel, stainless steel, and cast iron. Harder than C6 carbide tips, they also handle higher speeds when cutting steel.

    The information in this 3-D model is provided for reference only.
