    Heavy Duty Sieve

    20 Mesh Size

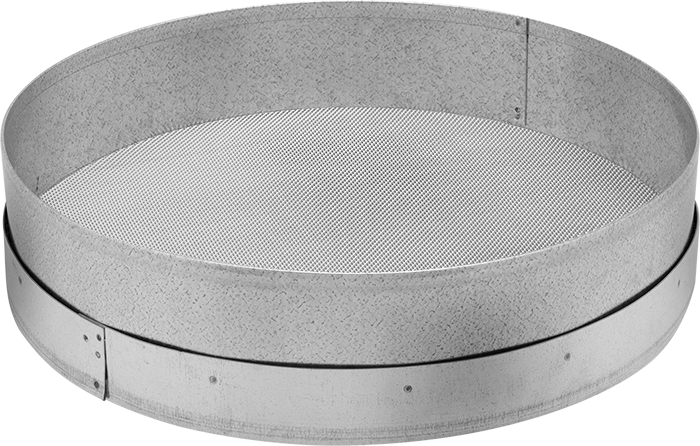

    Image of Product. Front orientation. Heavy Duty Sieve, 20 Mesh Size.

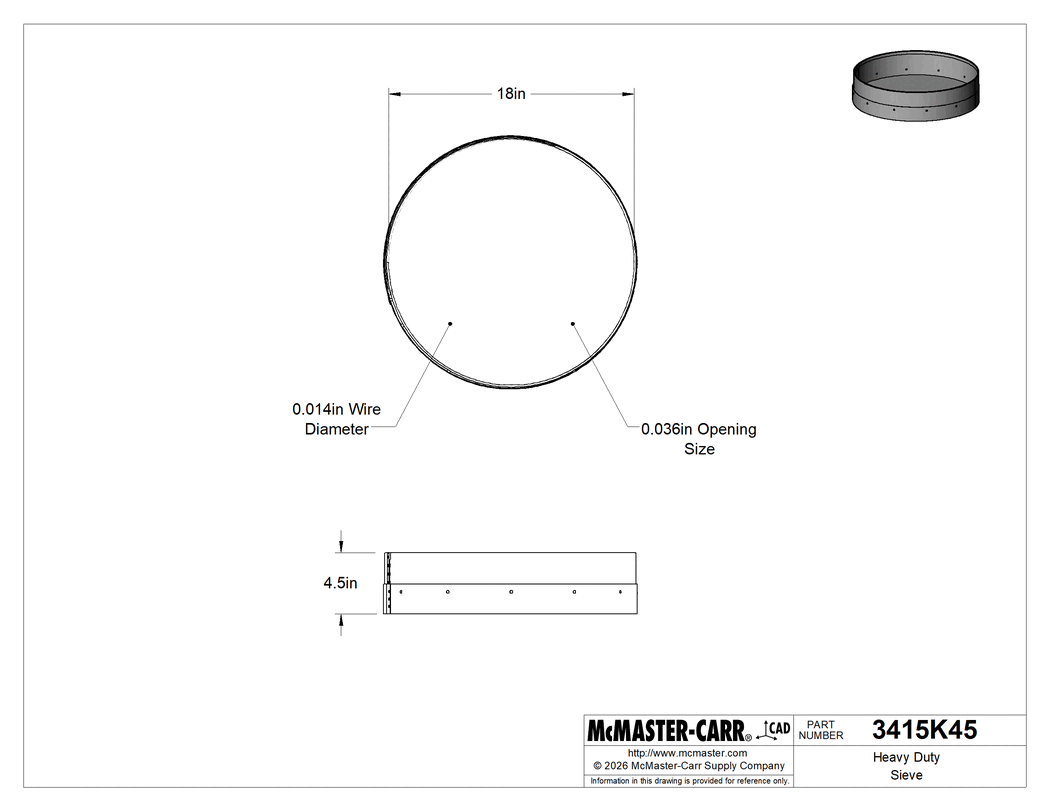

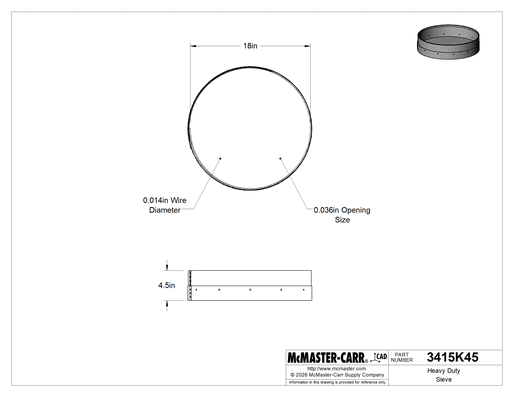

    Technical Drawing of Heavy Duty Sieve, 20 Mesh Size.
    2-D PDF
    0000000 each
    3415K45
    In stock
    3415K45
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Diameter

    18"

    Depth

    4 1/2"

    Frame Material

    Galvanized Steel

    Screen Material

    304 Stainless Steel

    Mesh Size

    20 × 20

    Opening Size

    0.036"

    Wire Diameter

    0.014"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    960400.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Separate abrasive materials such as sand, gravel, and asphalt.

    The information in this 3-D model is provided for reference only.
