    Fixed Setpoint Pressure Switch

    Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint

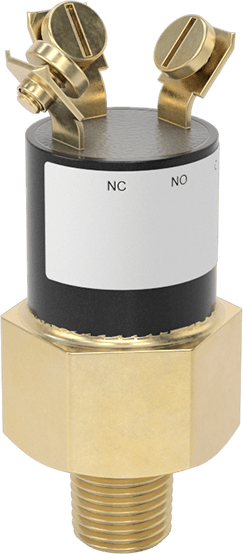

    Image of Product. Top orientation. Fixed Setpoint Pressure Switch, Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint.

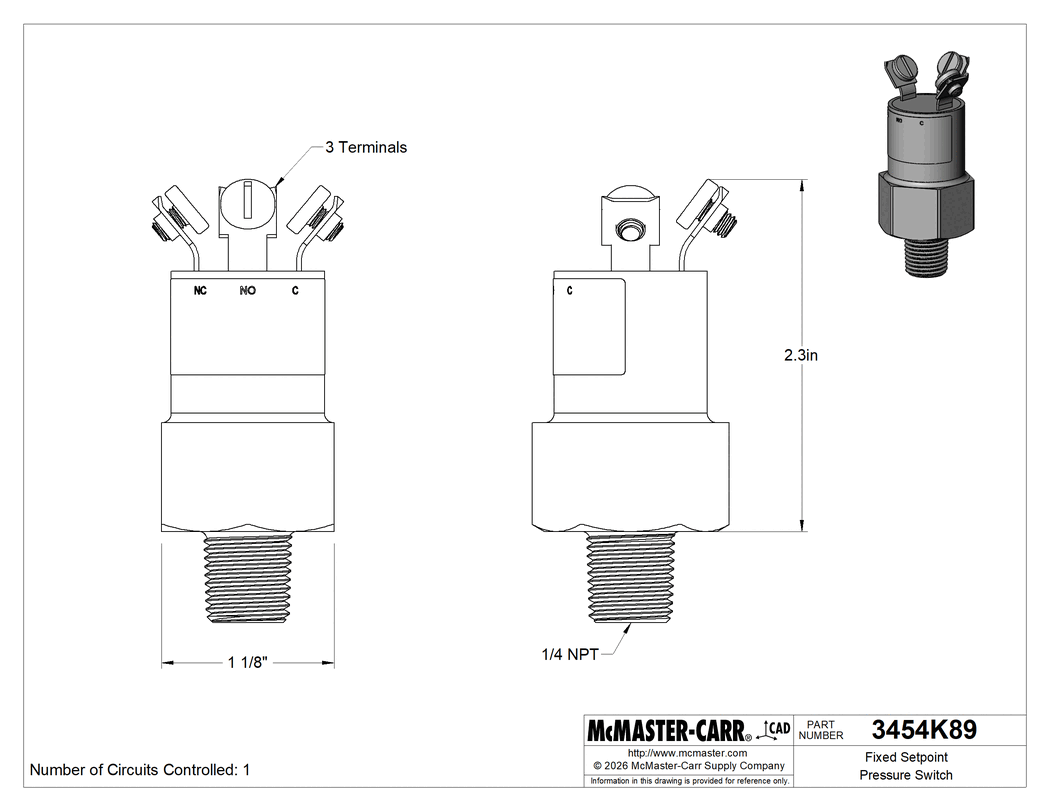

    Technical Drawing of Fixed Setpoint Pressure Switch, Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint.
    Image of Product. Bottom orientation. Fixed Setpoint Pressure Switch, Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint.
    Image of Product. Top orientation. Fixed Setpoint Pressure Switch, Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint.
    Image of Product. Side1 orientation. Contains SizingReference. Fixed Setpoint Pressure Switch, Screw Terminals, 1/4 NPT Male Connection, 50 PSI Setpoint.
    2-D PDF
    000000 each
    3454K89
    In stock
    3454K89
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Wire Connection

    Screw Terminal

    Pipe Size

    1/4

    Thread Type

    NPT

    Gender

    Male

    Connects To

    Pipe

    Pressure Set Point

    50 psi

    Approximate Reset Point

    42 psi

    Maximum Continuous Pressure

    2,000 psi

    Maximum Short-Term Pressure

    6,000 psi

    Accuracy

    ±5%

    Maximum Switching Current @ Voltage

    10 amp @ 125V AC
    10 amp @ 250V AC
    5 amp @ 30V DC

    Process Temperature Range

    -20° F to 220° F

    Connection Material

    Brass

    For Use With

    Air, Diesel Fuel, Hydraulic Fluid, Water

    Enclosure Rating

    NEMA 4, NEMA 13

    Certification

    C-UL Recognized Component, CE Marked, UL Recognized Component

    Environment

    Corrosive, Dusty, Oily, Outdoor, Washdown, Wet

    Fitting Connection

    Threaded

    Height

    2 5/16"

    Material

    Housing

    Brass

    Gasket

    Buna-N

    Measurement Unit

    Pounds per Square Inch

    Number of Circuits Controlled

    1

    Number of Terminals

    3

    Operates On

    Pressure

    Operation Type

    Mechanical

    Set Point Adjustability

    Fixed

    Switch Designation

    SPDT

    Switch Starting Position

    1 Off, 1 On

    Environment Temperature

    0° F to 220° F

    Width

    1 1/8"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    853650.9065

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Prevent changes to the set pressure that activates equipment—these switches come ready to use at your preferred setpoint. Often used to turn equipment on and off when a set pressure is reached, they can also be used to activate automated controls or signal alarms. They’re single pole, double throw (SPDT) and can either turn one device from off to on (normally open) or on to off (normally closed).

    NEMA 4 and 13 rated, they seal out dirt, oil, and water from washdowns. These switches are also UL and C-UL recognized components and are CE marked, so they meet American, Canadian, and European safety standards.

    The information in this 3-D model is provided for reference only.
