    Torque Gauge for Torque-Limiting Power Tools

    with NIST Certificate, ISO 17025

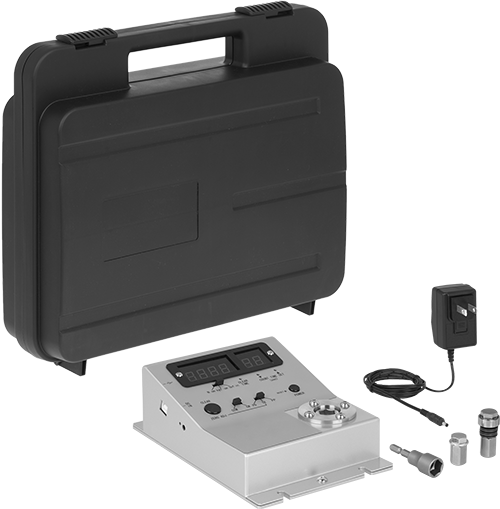

    Image of Product. Front orientation. Torque Gauge for Torque-Limiting Power Tools, with NIST Certificate, ISO 17025.

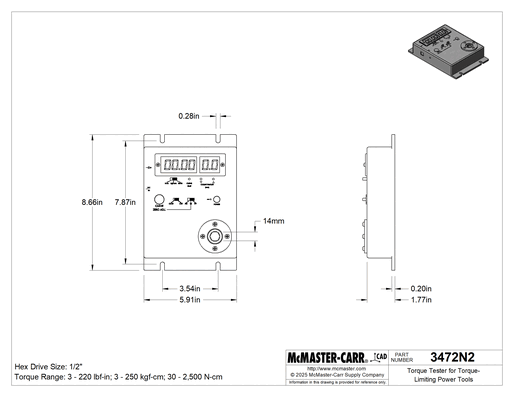

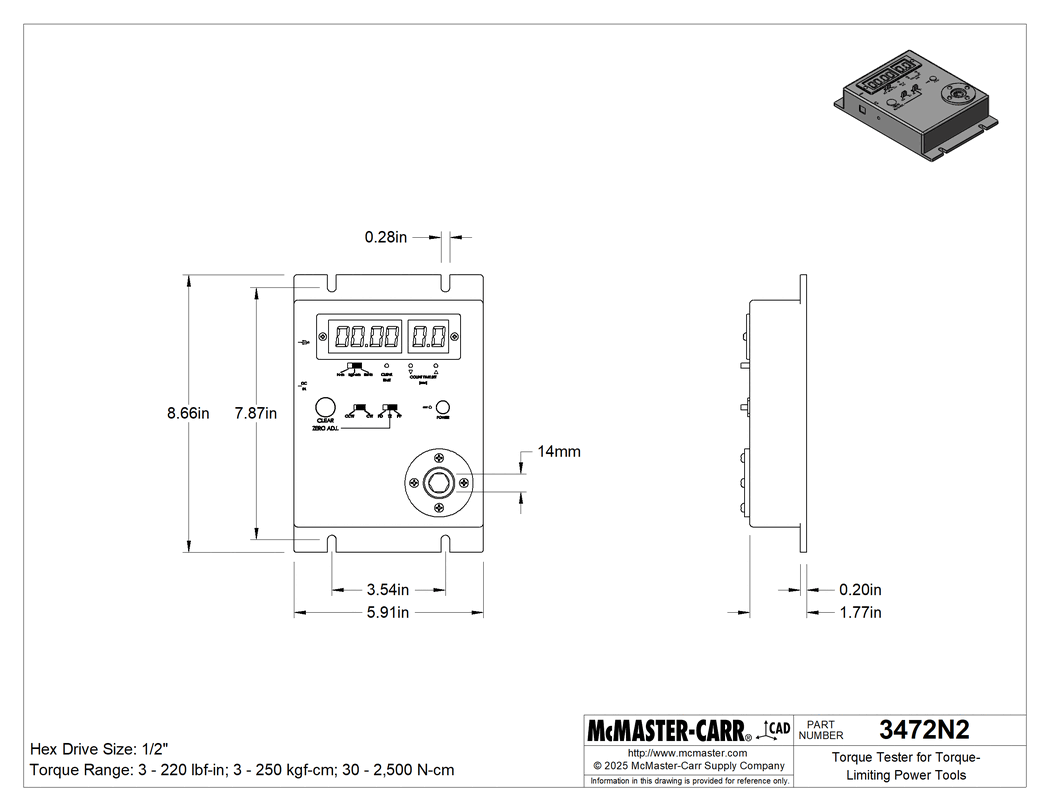

    Technical Drawing of Torque Gauge for Torque-Limiting Power Tools, with NIST Certificate, ISO 17025.

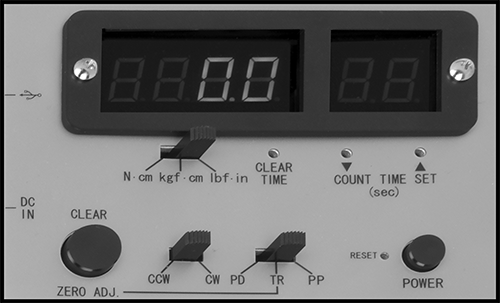

    Image of Product. LED Display. Top orientation. ZoomedIn view. Contains Inset, Border. Torque Gauge for Torque-Limiting Power Tools, with NIST Certificate, ISO 17025.
    LED Display

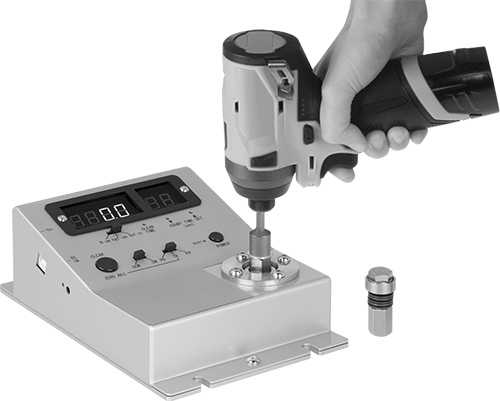

    Image of ProductInUse. Front orientation. Torque Gauge for Torque-Limiting Power Tools, with NIST Certificate, ISO 17025.
    2-D PDF
    000000000 each
    3472N2
    In stock
    3472N2
    000000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Certificate Type

    Calibration Certificate Traceable to NIST

    Specifications Met

    ISO/IEC 17025

    Unit of Measure

    in·lbf, kgf-cm, N-cm

    Joint Hex Head Width

    14 mm

    Torque Range

    3 to 220 in·lbf
    3 to 250 kgf-cm
    30 to 2,500 N-cm

    Graduations

    0.1 in·lbf
    0.001 kgf-cm
    1 N-cm

    Torque-Measuring Direction

    Clockwise and Counterclockwise

    Accuracy

    Clockwise

    ±0.5%

    Counterclockwise

    ±0.5%

    Height

    3"

    Width

    6"

    Depth

    8 1/2"

    Material

    Steel

    Battery Type

    Rechargeable

    Charger

    Connection

    Straight Blade

    Number of Blades

    2

    Display Type

    LED

    Cannot Be Sold To

    California, Oregon

    Includes

    1 Drive Adapter (3/8" Hex Shank), 2 Joints (Flexible and Rigid), Carrying Case

    Battery Charging Time

    8 hr.

    Battery Life

    8 hr.

    Data Connection

    USB-A

    Hex Drive Size

    1/2"

    Operating Mode

    Peak, Peak Down, Real Time

    Power Source

    Battery

    Country of Origin

    Japan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    903180.8080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    Related Products

    Cords

    Data Acquisition Software

    Calibrate torque-limiting power tools such as air-powered and impact drivers. These gauges check clockwise and counterclockwise torque, so fasteners do not fail because they were too loose or over-tightened and deformed. They record the first time your maximum torque is reached (peak down), the maximum torque (peak), and torque as it's measured (real-time). Use the flexible or rigid joints to connect your tools to these gauges to simulate your fastening application.

    These gauges have a calibration certificate with test data traceable to NIST, so they meet standards for accuracy. For the most accurate performance, the maximum torque you're applying should fall near the middle of the gauge's torque range.

    Connect to computers, laptops, or tablets that run on Microsoft Windows with a USB cable and analyze results with data acquisition software (both sold separately).

    ISO/IEC 17025—Gauges that meet ISO/IEC 17025 have been checked in a laboratory that was evaluated for accuracy.

    Cannot Be Sold To—Torque Gauges cannot be sold to the listed areas due to energy efficiency regulations.

    Data Acquisition Software—Use data acquisition software and a USB cord (sold separately) to analyze results and connect to computers, laptops, or tablets that run on Microsoft Windows.
