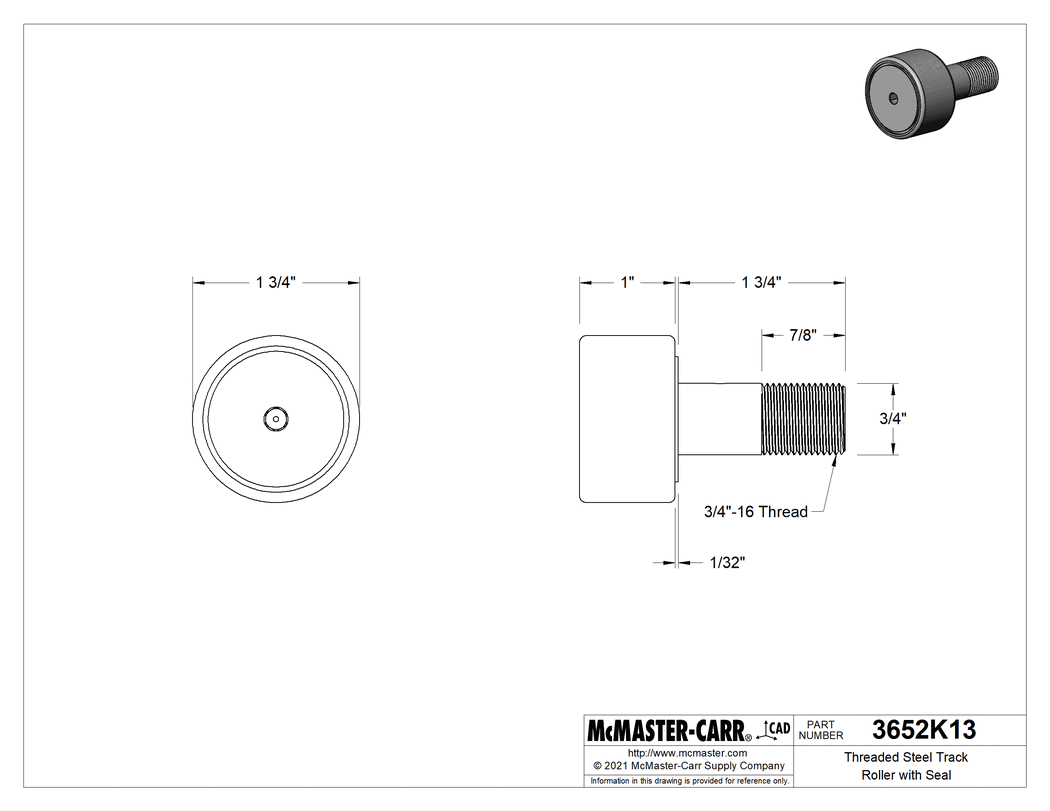

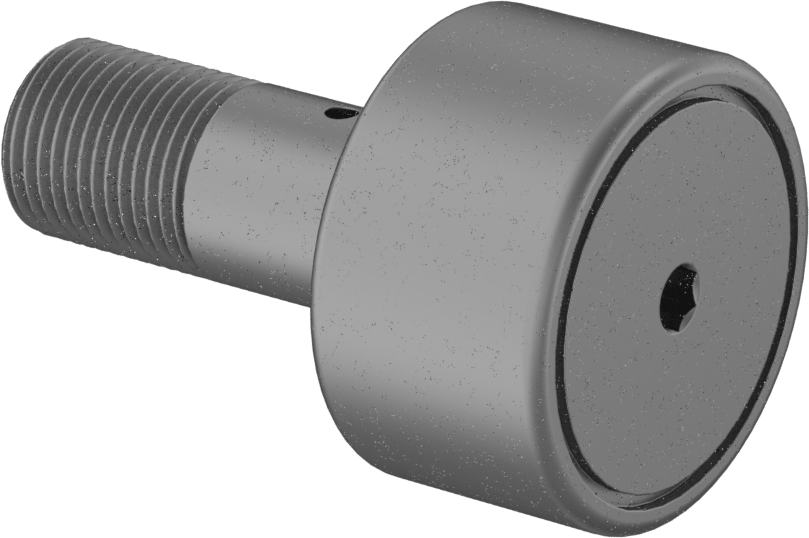

Threaded Steel Track Roller with Seal
Flat, 1-3/4" Roller Diameter, 1" Roller Width, 3/4" Stud Diameter
2-D PDF
000000 each
3652K13
In stock
3652K13
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Roller Material | Steel |
Roller Profile | Flat |
With Seal | Yes |
Drive Style | Hex |
Drive Location | Roller Head |
Roller | |
Diameter | 1 3/4" |
Width | 1" |
Stud | |
Diameter | 3/4" |
Length | 1 3/4" |
Thread | |
Size | 3/4"-16 |
Length | 7/8" |
Shoulder | |
Diameter | 1 3/64" |
Length | 1/32" |
Maximum Rotation Speed | 2,600 rpm |
Load Capacity | |
Static Radial | 12,000 lb. |
Dynamic Radial | 6,400 lb. |
Maximum Temperature | 250° F |
Roller Bearing Type | Needle |
Includes | Mounting Hardware |
For Load Direction | Radial |
Guide Roller Type | Track |
Lubricant | NLGI Grade 2 Extreme-Pressure Lithium Grease |
Lubricant Type | Grease |
Lubrication | Lubricated |
Lubrication Method | Filled |
Lubrication Port Location | Stud End, Stud Side, Roller Head |
Roller Mount Type | Threaded Stud |
Stud Material | Steel |
Track Roller Type | Round |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848240.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Also known as cam followers, track rollers support loads while guiding and positioning work. Thread the stud directly into a component or secure with a nut for through-hole mounting.
With Seal—Rollers with seal have end seals to protect rolling elements from dirt and contamination.
The information in this 3-D model is provided for reference only.
