    Low-Carbon Steel Rod

    1/4" Diameter, Cold Worked

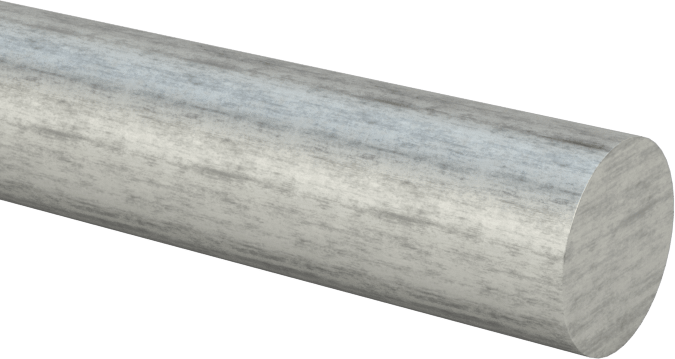

    Image of Product. Front orientation. Low-Carbon Steel Rod, 1/4" Diameter, Cold Worked.

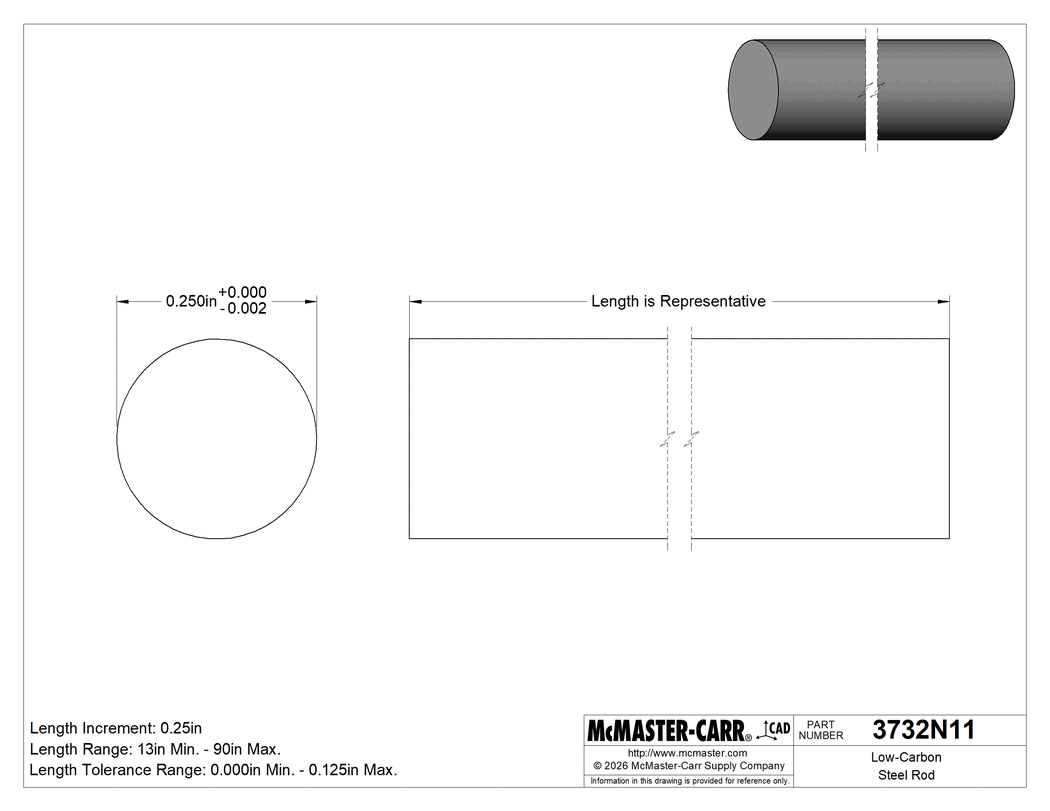

    Technical Drawing of Low-Carbon Steel Rod, 1/4" Diameter, Cold Worked.

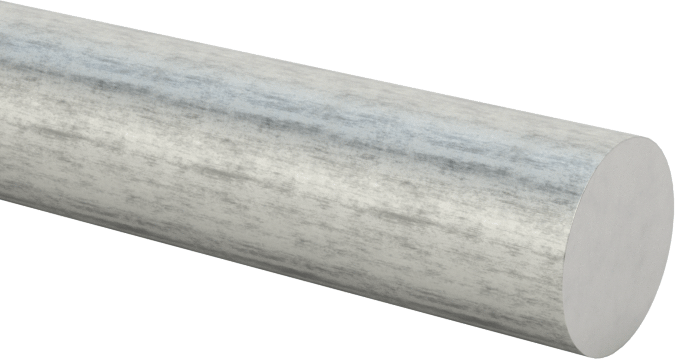

    Image of Product. Side1 orientation. Contains SizingReference. Low-Carbon Steel Rod, 1/4" Diameter, Cold Worked.
    2-D PDF
    00000 per in.
    3732N11
    Choose a Length between 13" and 90" in 1/4" increments.
    Ships in 1-2 weeks
    3732N11
    00000 per in.
    Each
    Ships in 1-2 weeks
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Diameter

    1/4"

    Diameter Tolerance

    -0.002" to 0"

    Fabrication

    Cold Worked

    Yield Strength

    54,000 psi

    Hardness

    Rockwell B70

    Hardness Rating

    Medium

    Maximum Hardness After Heat Treatment

    Rockwell C60

    Specifications Met

    ASTM A108

    Appearance

    Plain

    Application

    Multipurpose

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Coefficient of Thermal Expansion

    7.1 × 10^-6

    Elongation

    Not Rated

    Heat Treatable

    Yes

    Material

    Low-Carbon Steel

    Tolerance Rating

    Undersized

    Length Tolerance

    0" to 1/8"

    Length Tolerance Type

    Plus

    Material Composition

    Carbon

    0.13% to 0.20%

    Iron

    Remainder

    Manganese

    0.30% to 0.90%

    Phosphorus

    0.04% Max.

    Silicon

    0.15% to 0.30%

    Sulfur

    0.50% Max.

    Maximum Temperature

    Not Rated

    Minimum Temperature

    Not Rated

    Performance

    High Strength, Formable, Machinable, Ultra Weldable, Made-to-Order

    Shape

    Rod

    Steel Grade

    1018 Low-Carbon Steel

    Straightness Tolerance

    Not Rated

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Country of Origin

    United States, Italy

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    721550.0015

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    When an off-the-shelf size won't do, we'll get you the exact dimensions you need.

    Also known as mild steel, low-carbon steel is easy to machine, form, and weld. It's widely fabricated into low-strength fasteners, pins, and axles. You can surface harden this material for added wear resistance.
