    Vibration-&Corrosion-Resistant Gauge with Single Scale

    Vacuum, 2.5" Dial, Center Back Connection, 30 to 0 in. of Hg

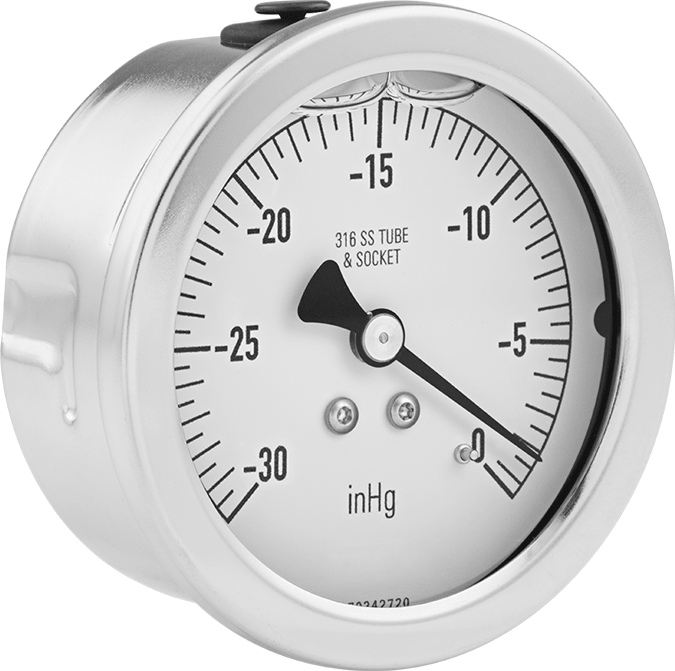

    Image of Product. Front orientation. Vibration-&Corrosion-Resistant Gauge with Single Scale, Vacuum, 2.5" Dial, Center Back Connection, 30 to 0 in. of Hg.

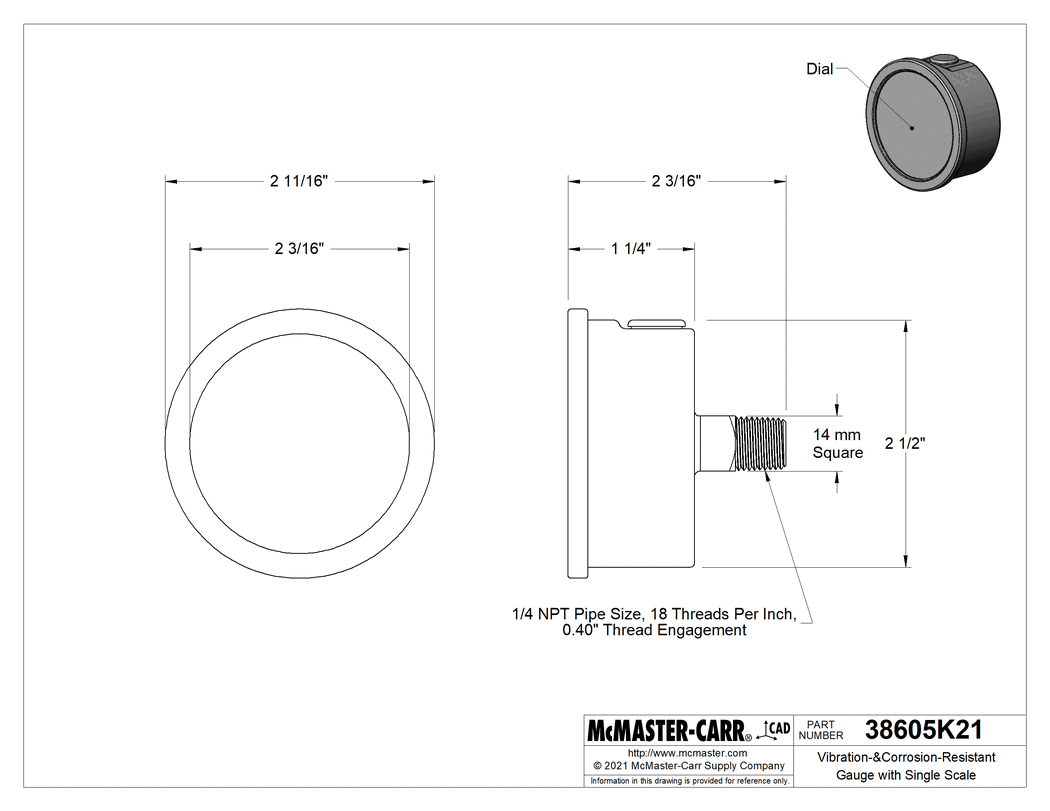

    Technical Drawing of Vibration-&Corrosion-Resistant Gauge with Single Scale, Vacuum, 2.5" Dial, Center Back Connection, 30 to 0 in. of Hg.
    Image of Attribute. Center-Back Connection. Front orientation. Vibration-&Corrosion-Resistant Gauge with Single Scale, Vacuum, 2.5" Dial, Center Back Connection, 30 to 0 in. of Hg.
    Center-Back Connection
    2-D PDF
    0000000 each
    38605K21
    In stock
    38605K21
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Case Material

    304 Stainless Steel

    Connection Material

    316 Stainless Steel

    Scale Type

    Single

    Measurement Unit

    Inches of Mercury

    Thread Type

    NPT

    Gender

    Male

    Fitting Connection

    Threaded

    Connects To

    Pipe

    Connection Location

    Center Back

    Dial Diameter

    2 1/2"

    Pipe Size

    1/4

    Environment Temperature Range

    -40° F to 140° F

    Process Temperature Range

    -40° F to 210° F

    Liquid Type

    Glycerin

    Available Vacuum Ranges

    Vacuum Range

    -30 in. Hg to 0 in. Hg

    Graduations

    0.5 in. Hg

    Pressure Numeric Increments

    5 in. Hg

    For Use With

    Air

    Accuracy

    ±1.5% Full Scale (Not Rated)

    Dial Type

    Liquid Filled

    Display Type

    Dial

    Lens Material

    Nylon

    Measures

    Vacuum

    Performance

    Corrosion Resistant, Vibration Resistant

    Country of Origin

    Poland

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    902620.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Designed for harsh environments prone to vibration, these gauges pair a corrosion-resistant 304 stainless steel case with a glycerin-filled dial to reduce needle flutter. Use them with vacuum pumps, packaging equipment, and in suction lines to measure and display vacuum.

    The information in this 3-D model is provided for reference only.
