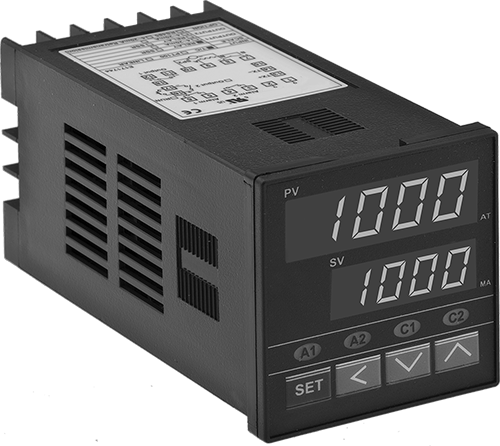

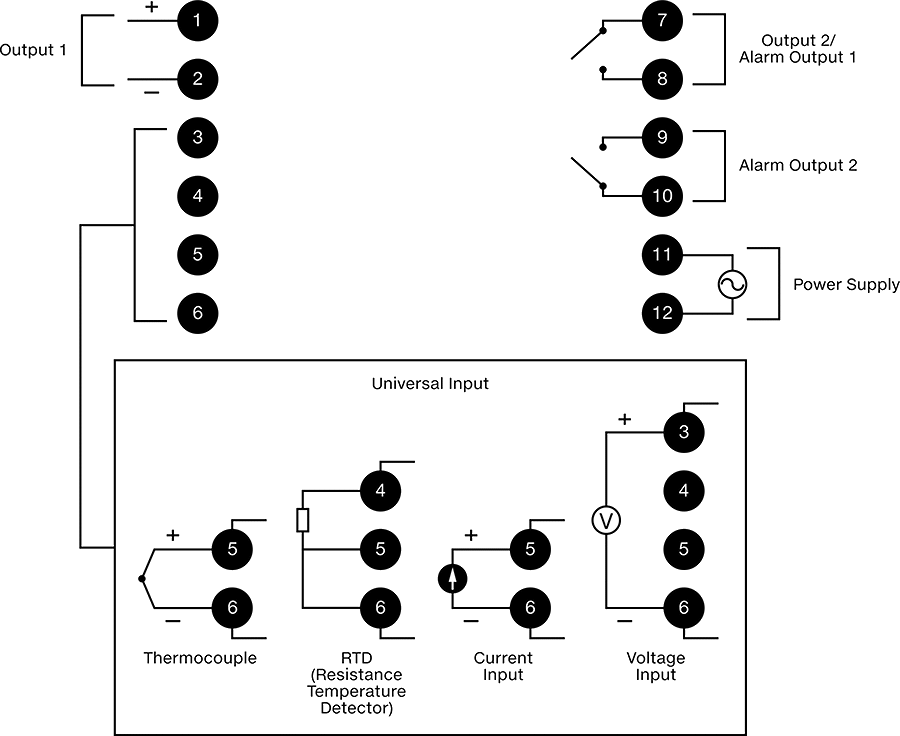

Autotuning Temperature Controller
with Solid State Relay Heat Output, 1/16 DIN, 3 Outputs
Controller Output Type | Solid State Relay |
For DIN Panel Cutout Size | 1/16 |
For Panel Cutout | |
Height | 1 3/4" |
Width | 1 3/4" |
For Thermocouple Probe Type | B, E, J, K, L, N, R, S, T |
Total Number of Outputs | 3 |
Output Type | Heating—1 14V DC Solid State Relay |
Mechanical Relay | |
Switch Designation | SPST-NO |
Maximum Switching Current @ Voltage | 2 amp @ 240V AC |
Output Voltage | 240V AC |
Switch Starting Position | 1 Off |
For Probe Type | Thermocouple, RTD |
Reset Type | Automatic |
Input Voltage Range | 90V AC to 250V AC |
Height | 1 7/8" |
Width | 1 7/8" |
Depth | 2 3/8" |
Enclosure Rating | IP20, IP50 |
Actuation Point Adjustability | Adjustable |
Adjustment Method | Keypad |
Certification | C-UL Listed, CE Marked, UL Listed |
Control Type | Proportional-Integral-Derivative |
Digit Height | 9/16", 1" |
Display Type | LCD |
Electrical Connection Type | Hardwire |
Electrical Phase | Single |
Environment | Dusty |
For RTD Probe Resistance | 100 ohm |
Frequency | 60 Hz |
Housing Material | Plastic |
Measurement Unit | Celsius, Fahrenheit |
Mounting Location | Panel |
Number of Actuation Points | 1 |
Resolution | 0.1 |
RTD Probe Connection | Wire Leads |
Switch Starting Position - 3 | 1 Off |
Temperature Accuracy | |
RTD Probe | ±0.7° F |
Type J Probe | ±3.6° F |
Type K Probe | ±3.6° F |
Type T Probe | ±3.6° F |
Temperature Range | |
RTD Probe | -345° F to 1,290° F |
Type J Probe | -180° F to 1,830° F |
Type K Probe | -325° F to 2,495° F |
Type T Probe | -415° F to 750° F |
Maximum Operating Temperature | 120° F |
Thermocouple Probe Connection | Wire Leads |
UL File Number | E244198 |
Wire Connection | Screw Terminal |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a) |
Schedule B Number | 853710.9060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Ideal in systems with rapid, unpredictable, or complex temperature changes, these controllers turn heating equipment on and off using a proportional-integral-derivative (PID) control algorithm to make fine adjustments, giving you the most precise and stable temperature control. They work similarly to proportional controllers but gather more variables to calculate the most effective way to return to the target temperature and avoid overshooting. They also have fuzzy logic to learn your system's behavior and compensate as needed. Use the autotuning function to have the controller cycle and identify the ideal PID variables for your system. You can also manually select the PID variables. These controllers read temperature with a highly sensitive thermocouple or RTD probe (both not included) in critical process applications. Since they reset automatically, they switch off and on again as the temperature fluctuates. All fit into instrument panels with DIN cutouts. Use the keypad to adjust the actuation point, reset point, other settings.
All meet American, Canadian, and European safety standards.
Solid State Relay Output—Solid state relay outputs send a pulse signal to directly control an external solid state relay (not included). They have a longer service life than mechanical and signal relays. Use them for more precise and rapid control switching than mechanical relays.
For Alarming—Alarm outputs can also be configured to actuate simple devices.
IP20 Enclosure Rating—IP20 rated controllers prevent objects about the size of a finger from coming into contact with a live circuit. IP50 rated controllers protect against dust.
IP50 Enclosure Rating—IP20 rated controllers prevent objects about the size of a finger from coming into contact with a live circuit. IP50 rated controllers protect against dust.
