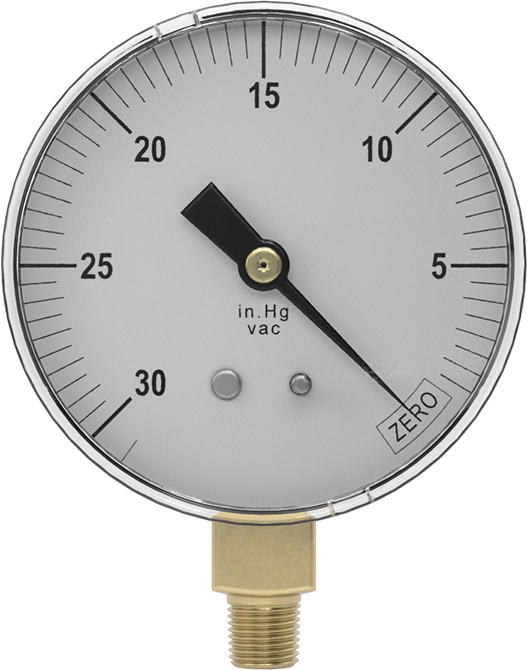

Vacuum Gauge with Steel Case
1 Scale, 2.5" Dial, 1/8 NPT Male Bottom Connection, NIST Certificate

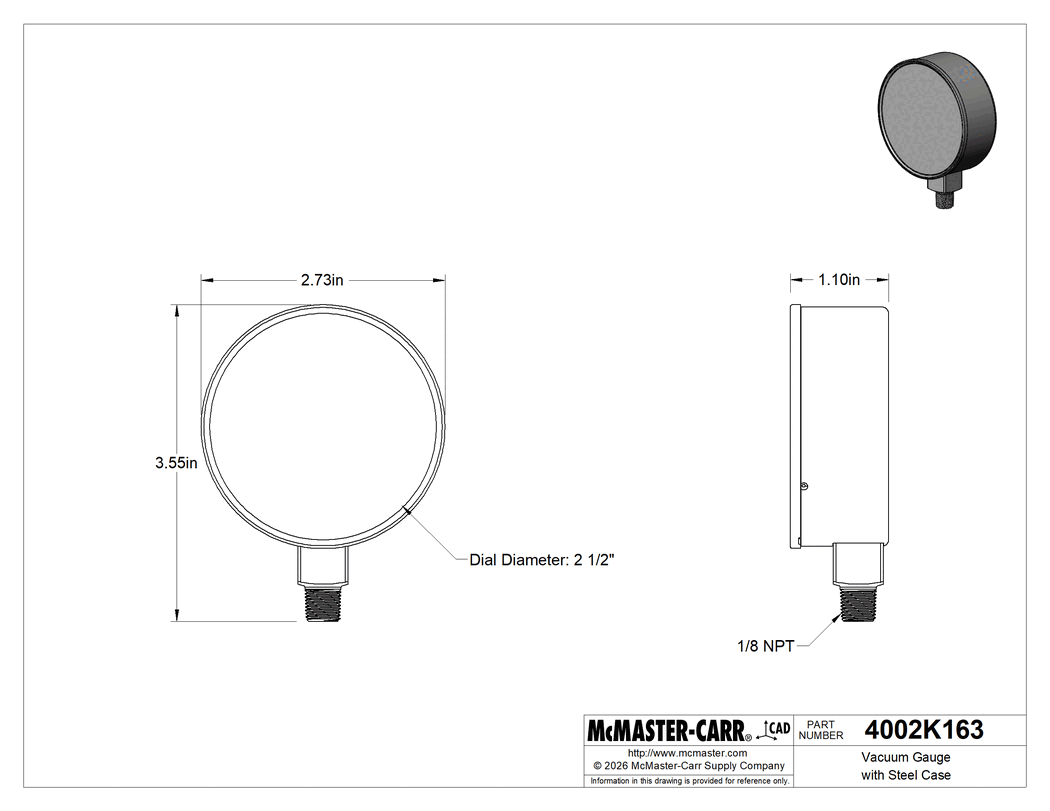

2-D PDF
000000 each
4002K163
In stock
4002K163
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Case Material | Painted Steel |
Connection Material | Brass |
Scale Type | Single |
Measurement Unit | Inches of Mercury |
Thread Type | NPT |
Gender | Male |
Certificate Type | Calibration Certificate Traceable to NIST |
Fitting Connection | Threaded |
Connects To | Pipe |
Connection Location | Bottom |
Dial Diameter | 2 1/2" |
Pipe Size | 1/8 |
Environment Temperature Range | -40° F to 150° F |
Process Temperature Range | -40° F to 150° F |
Case Color | Black |
Available Vacuum Ranges | |
Vacuum Range | -30 in. Hg to 0 in. Hg |
Graduations | 0.5 in. Hg |
Pressure Numeric Increments | 5 in. Hg |
For Use With | Air |
Accuracy | ±2% Midscale (Grade B) |
Dial Type | Dry |
Display Type | Dial |
Lens Material | Polycarbonate |
Measures | Vacuum |
Country of Origin | Brazil |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 902620.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use these gauges with vacuum pumps, packaging equipment, and in suction lines to measure and display vacuum.
Painted Steel Case—Gauges with a steel case are more impact resistant than gauges with an ABS case.
The information in this 3-D model is provided for reference only.
