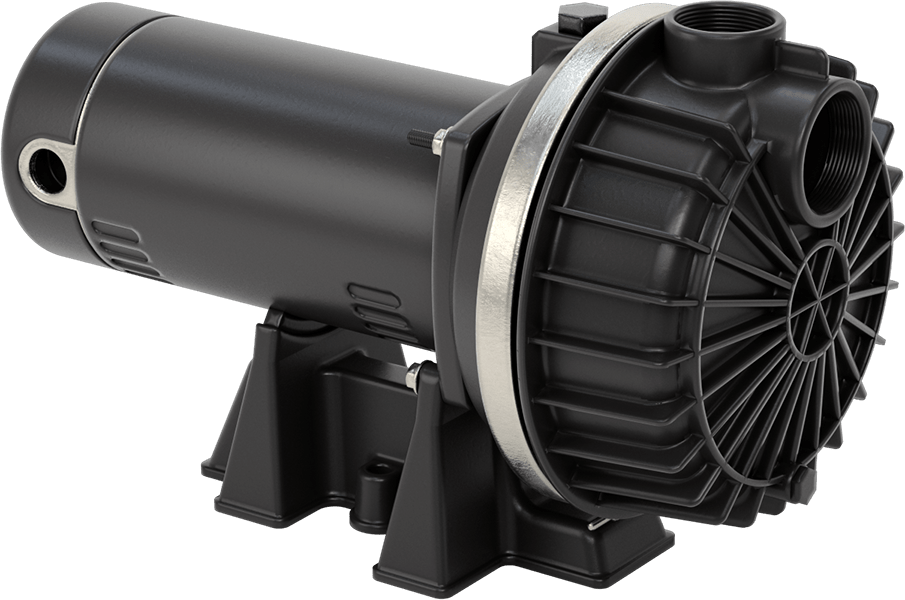

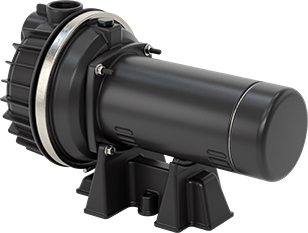

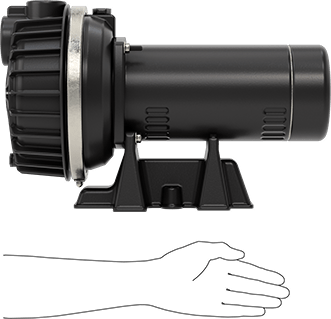

Circulation Pump for Water Sprinkler
1 hp
Voltage | 120V AC/240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Viscosity | 1 cP |
Maximum Flow Rate | 56 gpm |
Flow Rate | |
@ 30 Feet of Head | 53 gpm |
@ 40 Feet of Head | 50 gpm |
@ 50 Feet of Head | 46 gpm |
@ 60 Feet of Head | 43 gpm |
@ 70 Feet of Head | 37 gpm |
@ 80 Feet of Head | 33 gpm |
@ 90 Feet of Head | 25 gpm |
Maximum Feet of Head | 108 ft. |
Maximum Pressure | 60 psi |
Temperature | |
Minimum | 40° F |
Maximum | 140° F |
Power | 1 hp |
Current | 14.8 amp/7.4 amp |
Intake | |
Location | Front |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 2 Female NPT |
Discharge | |
Location | Top |
Connection Port | Pipe |
Connection | Threaded |
Connection Type | 1 1/2 Female NPT |
Overall | |
Length | 18 5/8" |
Width | 10 3/16" |
Height | 11 7/8" |
Certification | CSA Certified |
Chemical Resistance (Excellent) | Water |
Duty Cycle | Continuous |
For Use With | Water |
Frequency | 60 Hz |
Housing Material | Polypropylene |
Impeller Material | Noryl PPO |
Maximum Solids Diameter | Not Rated |
Motor Enclosure Type | Open Dripproof (ODP) |
Number of Mounting Holes | 2 |
Optimal Operating Point @ Feet of Head | 36 gpm @ 77 ft. |
Optimal Operating Range @ ft. of Head | 16 gpm to 53 gpm @ 99 ft. of head to 30 ft. of head |
Power Source | Electric |
Priming Type | Initial Fill |
Pump Style | Circulating |
Pump Type | Centrifugal |
Runs Dry | No |
Self-Priming Height | 5 ft. to 25 ft. |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wire Connection | Screw Terminal |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 8(b) |
Schedule B Number | 841370.2005 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These pumps have high flow rates for irrigation and landscaping. The open dripproof (ODP) motor is for use in clean, dry, and well-ventilated environments. Pumps are self-priming after you fill the pump chamber with liquid. As liquid in the chamber is expelled, a suction force is created which allows the pump to draw liquid upward. They can be mounted up to 25 ft. above your liquid source.
Note: Pumps must be filled with liquid before use. They need a constant flow of liquid and cannot run dry. If flow control is needed, place valves or reducers on the discharge side; never restrict the inlet of a pump with a valve or reducer.

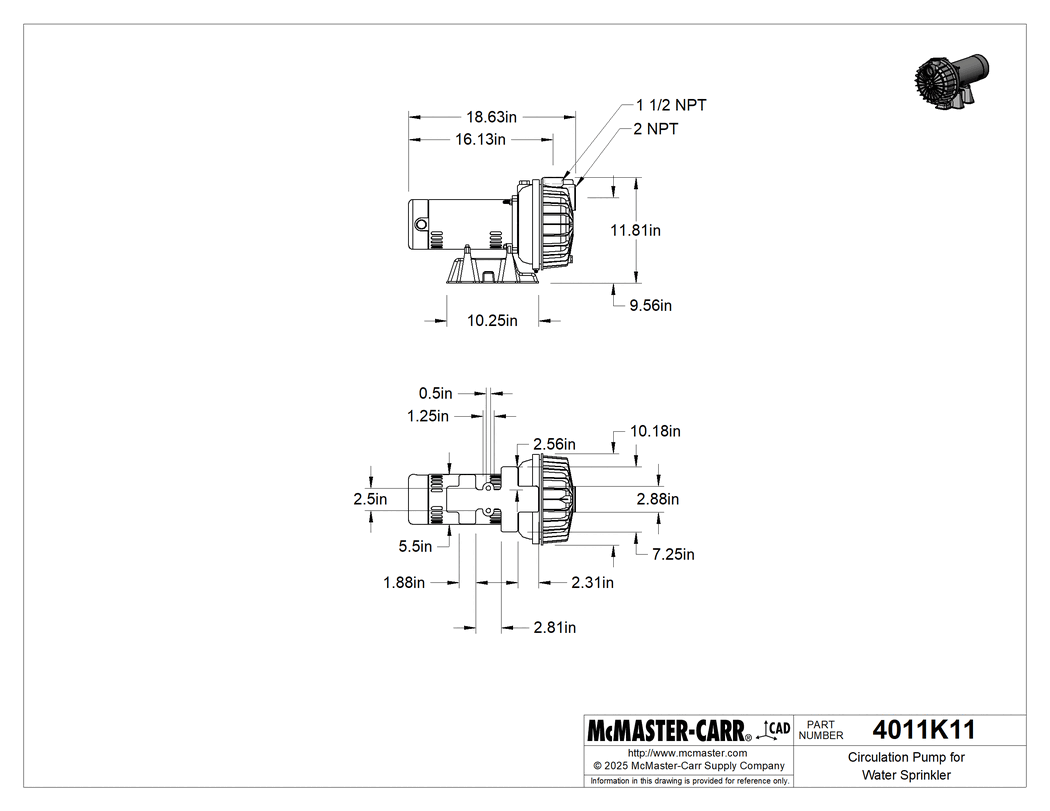

The information in this 3-D model is provided for reference only.
