    Weather-Resistant EPDM Push-and-Stay Bumpers

    for 9/32" ID, 3/8" Ridge Diameter, 9/16" OD

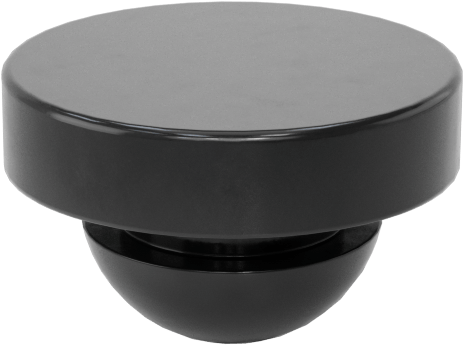

    Image of Product. Bottom orientation. Weather-Resistant EPDM Push-and-Stay Bumpers, for 9/32" ID, 3/8" Ridge Diameter, 9/16" OD.

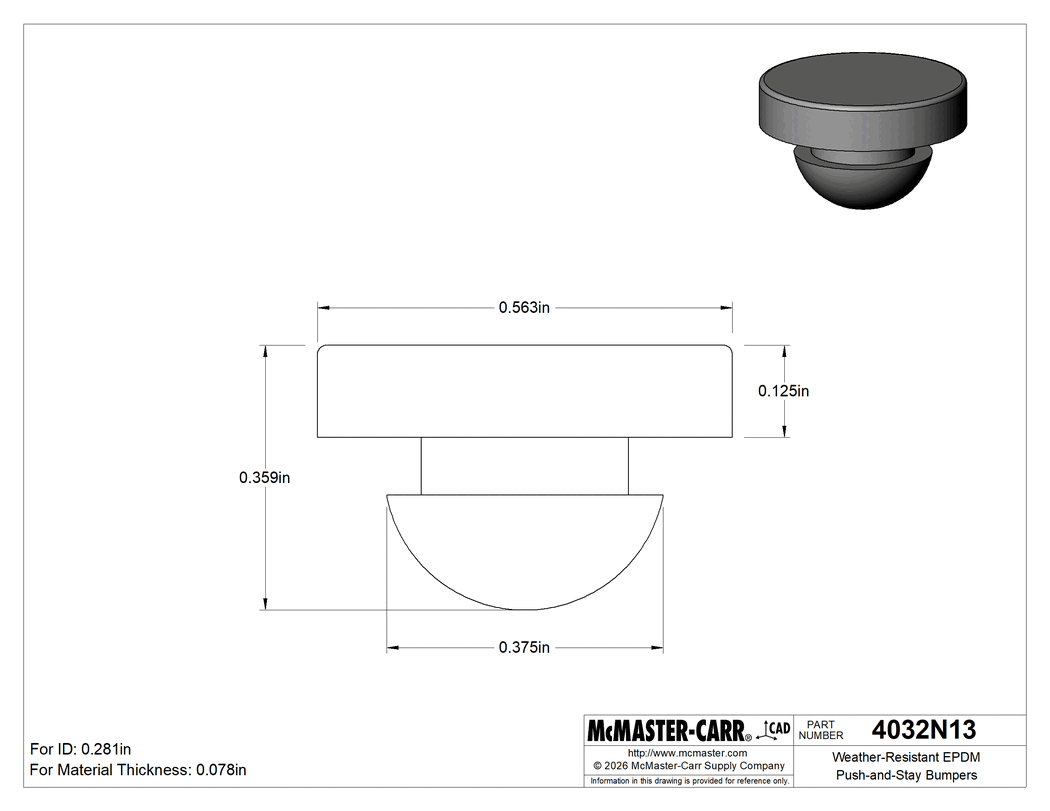

    Technical Drawing of Weather-Resistant EPDM Push-and-Stay Bumpers, for 9/32" ID, 3/8" Ridge Diameter, 9/16" OD.
    Image of Product. Bottom orientation. Weather-Resistant EPDM Push-and-Stay Bumpers, for 9/32" ID, 3/8" Ridge Diameter, 9/16" OD.

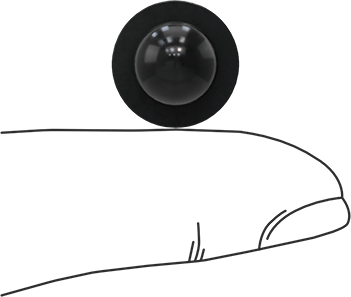

    Image of Product. Side1 orientation. Contains SizingReference. Weather-Resistant EPDM Push-and-Stay Bumpers, for 9/32" ID, 3/8" Ridge Diameter, 9/16" OD.
    2-D PDF
    000000 per pack of 50
    4032N13
    In stock
    4032N13
    000000 per pack of 50
    Pack of 50
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    EPDM

    Style

    1

    For ID

    9/32"

    Ridge Diameter

    3/8"

    For Material Thickness

    5/64"

    OD

    9/16"

    Height

    1/8"

    Hardness

    Durometer 60A

    Hardness Rating

    Medium Hard

    Color

    Black

    Temperature

    -60° F to 300° F

    Nonmarking

    No

    For Use Outdoors

    Yes

    Environment

    Outdoor

    Mount Type

    Push In

    Performance

    Abrasion Resistant, High Temperature, Weather Resistant, Stay Put

    Shape

    Round

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    401699.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With a ridge on the stem, these bumpers grip tighter than other push-in bumpers, so they won't pop out from vibration and sudden bumps. They act as both bumper and plug, protecting equipment from impact while sealing off holes from dirt, dust, and water. From electronics feet to spacers, they have a wide variety of uses. Just push them into a hole for quick installation.

    Weather-Resistant EPDM—The best choice for outdoor use, these bumpers withstand long-term exposure to sunlight, rain, and ozone.

    Hardness Rating—The harder the bumper, the better it withstands impact and abrasion over time. The softer the bumper, the more cushioning it provides for objects made of glass, soft metal, and other fragile materials. Bumpers with a medium rating offer a balance of impact resistance and cushioning.
