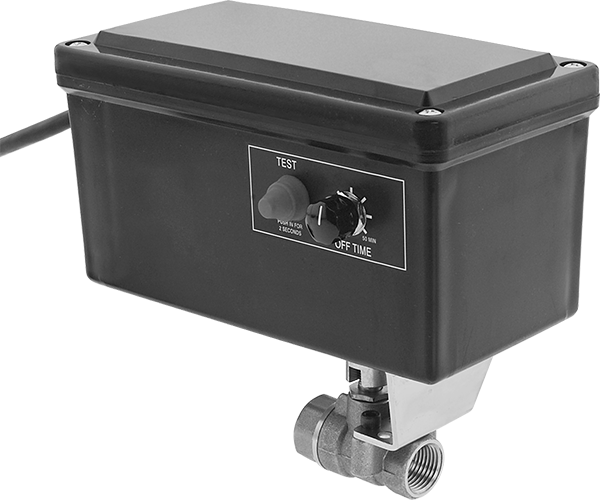

Timer-Operated Compressed Air Drain Valve
High-Pressure, 316 Stainless Steel Housing, NEMA 4x, 1/2 NPT Female
Housing Material | 316 Stainless Steel |
Enclosure Rating | NEMA 4X |
Power Source | Electric |
Voltage | 120V AC |
Number of Blades | 3 |
Electrical Connection Type | Plug In |
Inlet | |
Connection | Threaded |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Female |
Outlet | |
Connection | Threaded |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Female |
Discharge Capacity | 1.25 gpm |
Maximum Pressure | 2,000 psi |
Overall | |
Height | 7" |
Width | 7 5/8" |
Depth | 4" |
Cycle Interval Time | 1 min. to 50 min. |
Drain Time | 12 sec. |
Maximum Temperature | 180° F |
Actuation | Timer |
Cord Length | 8 ft. |
Drain Location | Internal |
Electrical Connection | Straight Blade |
Environment | Corrosive, Dusty, Outdoor, Washdown, Wet |
Performance | High Pressure |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848180.3025 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
These withstand at least double the pressure of our other timer-operated drain valves. Set the electronic timer to open automatically at your specified time interval. These drain valves are excellent for compressed air systems with high oil content because they resist clogging when water, oil, and sediment combine to form sludge. Install drain valves after separators, dryers, filters, and aftercoolers to collect and remove water from your air line.
NEMA 4X Enclosure Rating—Drain valves that meet NEMA 4X are rated for protection from dirt, washdowns, and corrosion.

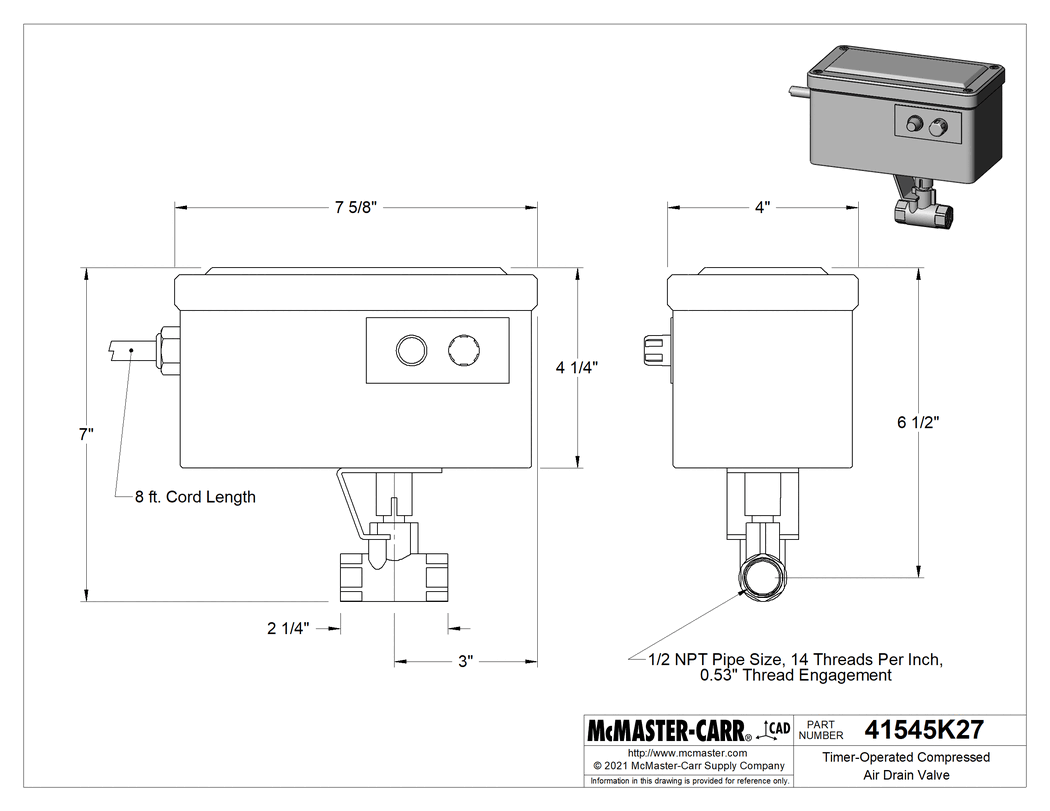

The information in this 3-D model is provided for reference only.
