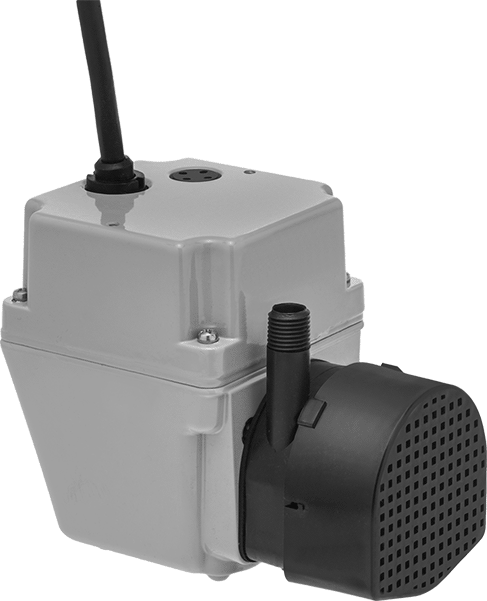

Submersible Pump for Water
Impact-Resistant/Open-Air, 240V AC, 21 Maximum Feet of Head
Style | B |
Voltage | 240V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Hardwire |
Maximum Flow Rate | |
@ 1 Foot of Head | 10 gpm |
@ 5 Feet of Head | 8.6 gpm |
@ 10 Feet of Head | 6.9 gpm |
Maximum Feet of Head | 21 ft. |
Temperature Range | 35° F to 120° F |
Power | 1/15 hp |
Current | 1.4 amp |
Intake | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Female |
Discharge | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Male |
Cord Length | 12 ft. |
Overall | |
Height | 5 1/2" |
Width | 4 1/2" |
Depth | 7" |
Features | Removable Intake Screen |
Duty Cycle | Continuous |
For Use With | Water |
Frequency | 60 Hz |
Housing Material | Epoxy-Coated Aluminum |
Performance | Impact Resistant |
Power Source | Electric |
Pump Activation Type | Plug In |
Pump Style | Circulating |
Pump Type | Submersible |
Wire Connection | Wire Leads |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2004 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Protected from impact by a durable epoxy-coated aluminum housing, these pumps can be submerged or connected remotely to a pipe in your line. Use to circulate water in small tanks, cooling baths, fountains, and other low-flow applications. Plug in to activate. Do not run dry. Not for use with salt water or flammable liquids.
Hardwire—Hardwire pumps must be wired to a plug (not included).
