    Flow Sight for Water and Oil

    Bronze Body, 1 NPT Female

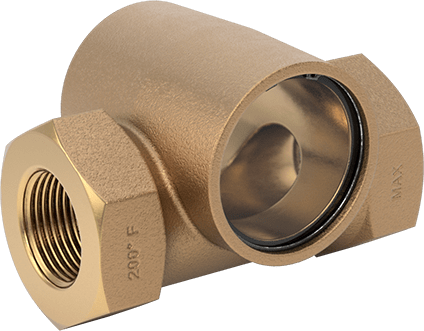

    Image of Product. Front orientation. Flow Sight for Water and Oil, Bronze Body, 1 NPT Female.

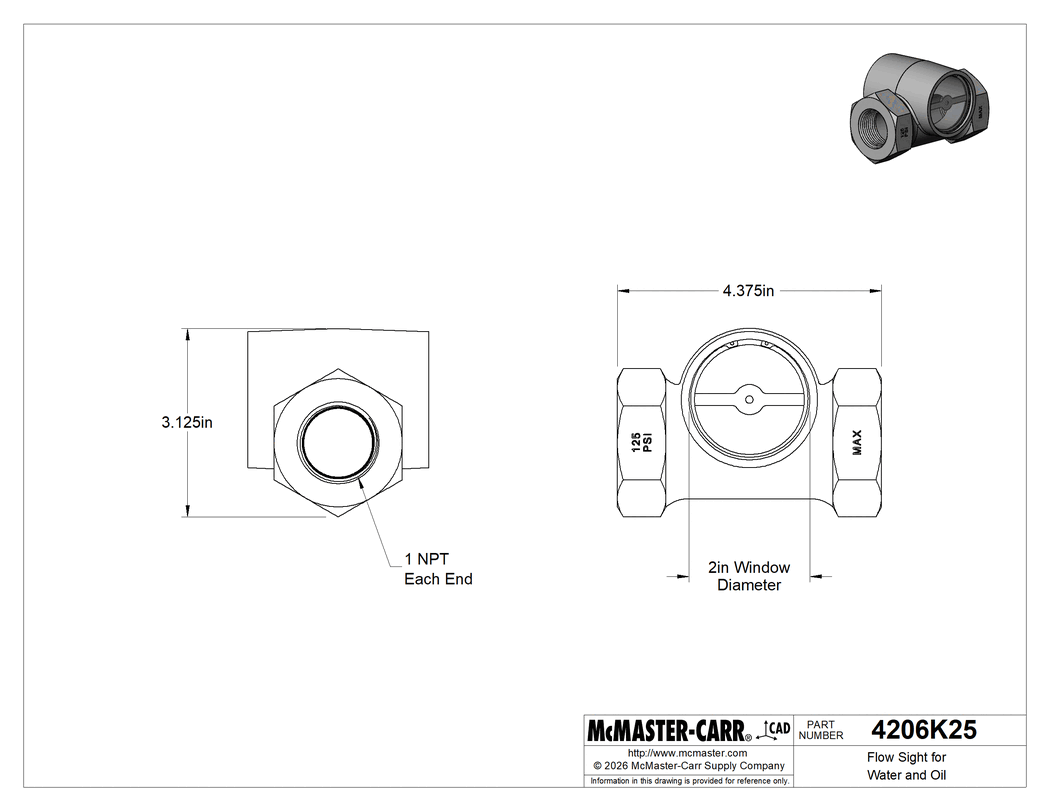

    Technical Drawing of Flow Sight for Water and Oil, Bronze Body, 1 NPT Female.

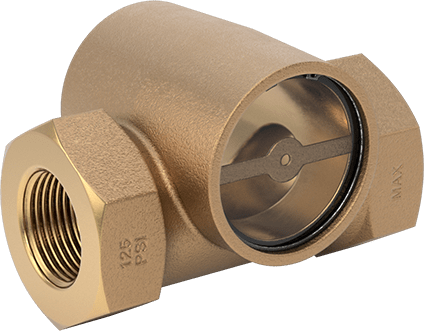

    Image of Product. Back orientation. Flow Sight for Water and Oil, Bronze Body, 1 NPT Female.

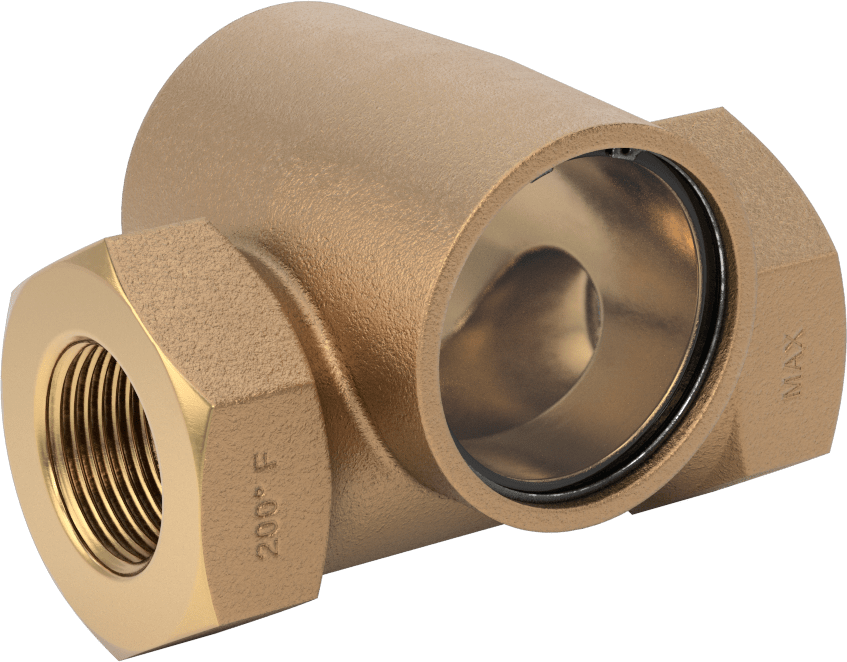

    Image of Product. Side1 orientation. Contains SizingReference. Flow Sight for Water and Oil, Bronze Body, 1 NPT Female.
    2-D PDF
    0000000 each
    4206K25
    In stock
    4206K25
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Indicator Type

    No Indicator

    Body Material

    Bronze

    Pipe Size

    1

    Thread Type

    NPT

    Gender

    Female

    Temperature Range

    -20° F to 200° F

    Window

    Diameter

    2"

    Type

    Front and Back

    Material

    Glass

    End-to-End Length

    4 3/8"

    Height

    3 1/8"

    Maximum Pressure @ Temperature

    125 psi @ 70° F

    Direction of Flow

    Any Direction

    For Use With

    Water, Oil

    Connects To

    Pipe

    Fitting Connection

    Threaded

    Mounting

    Location

    Inline

    Position

    Any Angle

    Seal Material

    Buna-N

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    702000.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Visually confirm flow and inspect the color and clarity of your process media. These sights have a back window that can be backlit to increase the visibility of dark liquids.

    The information in this 3-D model is provided for reference only.
