    Number E100A and S100 Blade for Heavy Duty Changeable-Blade Deburring Scraper

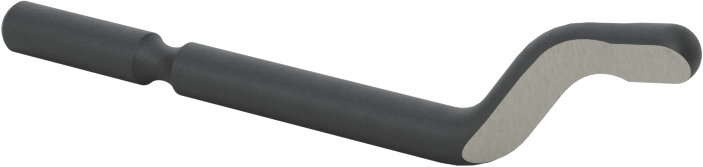

    Image of Product. Front orientation. Number E100A and S100 Blade for Heavy Duty Changeable-Blade Deburring Scraper.

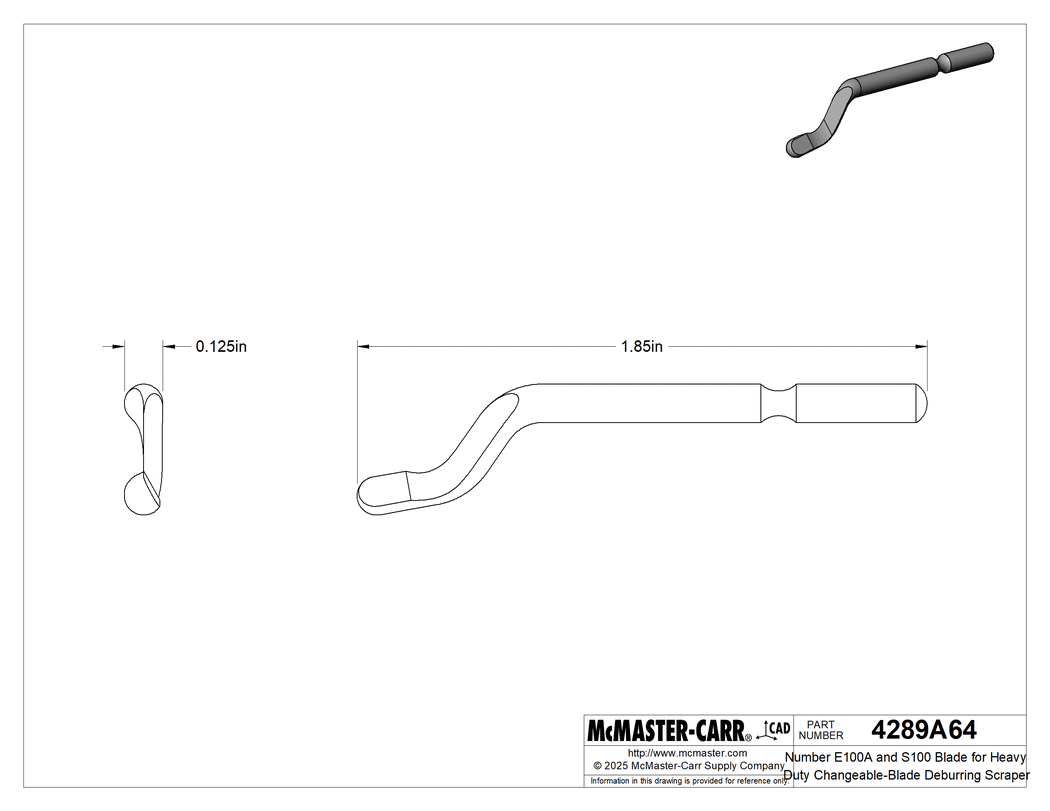

    Technical Drawing of Number E100A and S100 Blade for Heavy Duty Changeable-Blade Deburring Scraper.
    Image of Product. Back orientation. Number E100A and S100 Blade for Heavy Duty Changeable-Blade Deburring Scraper.
    Image of Product. Side1 orientation. Contains SizingReference. Number E100A and S100 Blade for Heavy Duty Changeable-Blade Deburring Scraper.
    2-D PDF
    00000 each
    4289A64
    In stock
    4289A64
    1-9 each00000
    10 or more00000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Deburring

    Front Hole Edges, Straight Edges

    Cutting Direction

    Right Hand

    For Use On

    Stainless Steel

    Deburring Blade Manufacturer Number

    E100S, S100

    Overall

    Length

    1.85"

    Width

    0.43"

    Shank Diameter

    0.125"

    Blade

    Material

    Cobalt Steel

    Style

    Rotating

    Country of Origin

    Israel

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.1500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Longer than standard blades, these are designed for more frequent use. Insert them into a heavy duty changeable-blade deburring scraper.

    Cobalt Steel Blade—Cobalt steel blades are stronger and more durable than plain steel blades.

    The information in this 3-D model is provided for reference only.
