    Carbide Bur Set with 1/4" Diameter Shank

    16 Pieces, Double-Cut Tooth

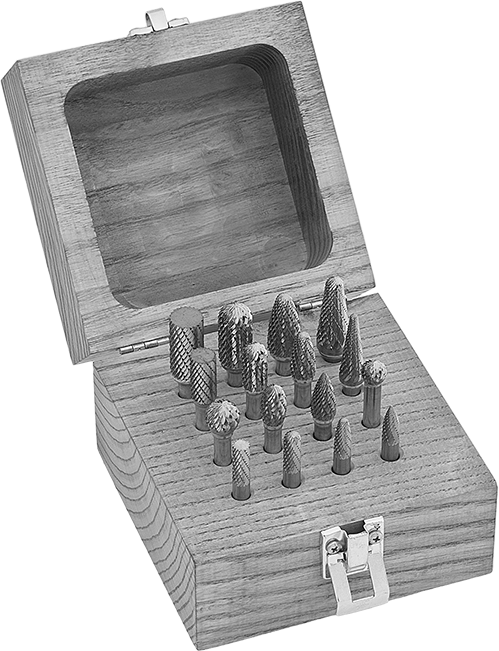

    Image of Product. Front orientation. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.

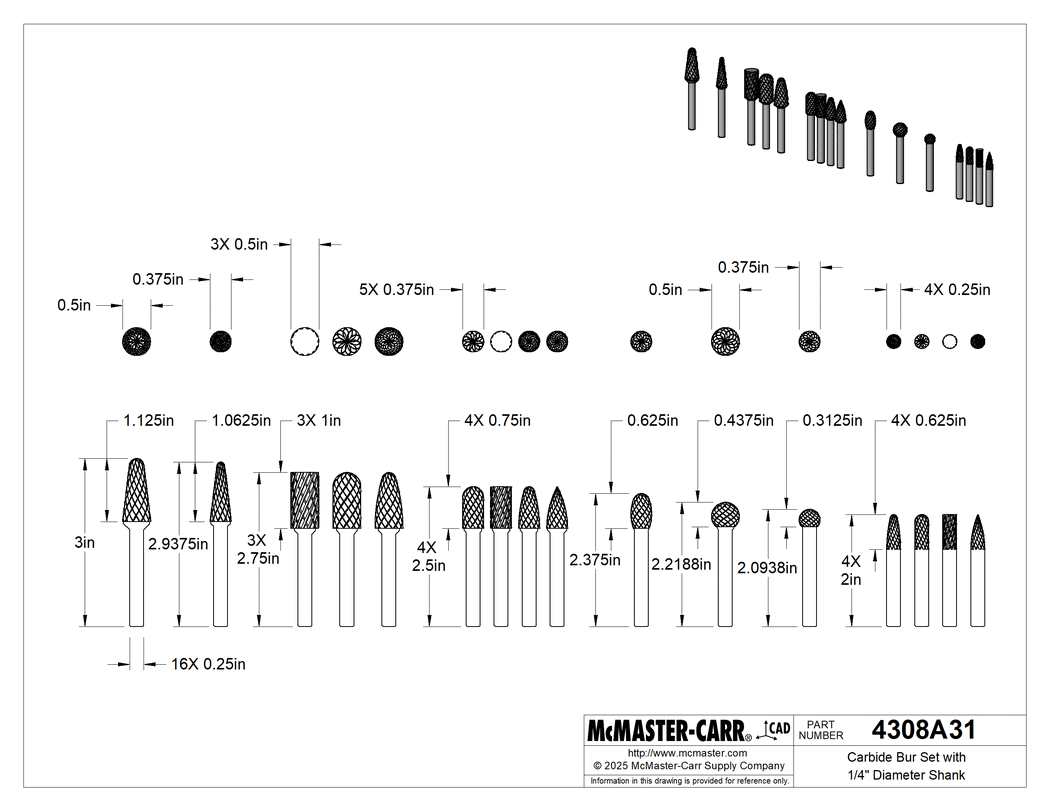

    Technical Drawing of Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    Image of Specification. SA-1. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SA-1
    Image of Specification. SC-1. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SC-1
    Image of Specification. SF-1. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SF-1
    Image of Specification. SL-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SL-3
    Image of Specification. SD-5. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SD-5

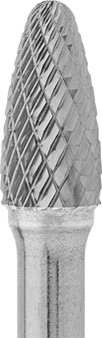

    Image of Specification. SF-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SF-3
    Image of Specification. SF-5. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SF-5
    Image of Specification. SD-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SD-3

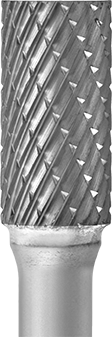

    Image of Specification. SA-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SA-3
    Image of Specification. SL-4. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SL-4
    Image of Specification. SC-5. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SC-5

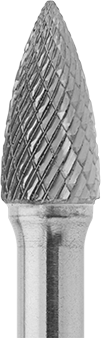

    Image of Specification. SG-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SG-3
    Image of Specification. SG-1. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SG-1

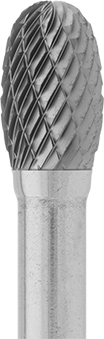

    Image of Specification. SE-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SE-3

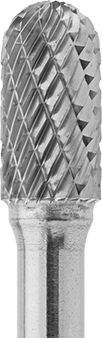

    Image of Specification. SC-3. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SC-3
    Image of Specification. SA-5. Front orientation. ZoomedIn view. Carbide Bur Set with 1/4" Diameter Shank, 16 Pieces, Double-Cut Tooth.
    SA-5
    2-D PDF
    0000000 each
    4308A31
    Ships in 1-4 weeks
    4308A31
    0000000 each
    Each
    Ships in 1-4 weeks
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shank Flexibility

    Rigid

    Sold As

    Set

    Number of Pieces

    16

    Shank Diameter

    1/4"

    Material

    Carbide

    Container Type

    Wood Box

    Tooth Style

    Double Cut

    Grit Rating

    Medium

    Includes

    Cylinder-Shape Flat-Tip SA-1 Bur—1/4" Head Dia. × 5/8" Head Lg.
    Cylinder-Shape Flat-Tip SA-3 Bur—3/8" Head Dia. × 3/4" Head Lg.
    Cylinder-Shape Flat-Tip SA-5 Bur—1/2" Head Dia. × 1" Head Lg.
    Cylinder-Shape Rounded-Tip SC-1 Bur—1/4" Head Dia. × 5/8" Head Lg.
    Cylinder-Shape Rounded-Tip SC-3 Bur—3/8" Head Dia. × 3/4" Head Lg.
    Cylinder-Shape Rounded-Tip SC-5 Bur—1/2" Head Dia. × 1" Head Lg.
    Tree-Shape Pointed-Tip SG-1 Bur—1/4" Head Dia. × 5/8" Head Lg.
    Tree-Shape Pointed-Tip SG-3 Bur—3/8" Head Dia. × 3/4" Head Lg.
    Tree-Shape Rounded-Tip SF-1 Bur—1/4" Head Dia. × 5/8" Head Lg.
    Tree-Shape Rounded-Tip SF-3 Bur—3/8" Head Dia. × 3/4" Head Lg.
    Tree-Shape Rounded-Tip SF-5 Bur—1/2" Head Dia. × 1" Head Lg.
    Ball-Shape SD-3 Bur—3/8" Head Dia. × 5/16" Head Lg.
    Ball-Shape SD-5 Bur—1/2" Head Dia. × 7/16" Head Lg.
    Oval/Egg-Shape SE-3 Bur—3/8" Head Dia. × 5/8" Head Lg.
    14° Tapered Cone-Shape Rounded-Tip SL-3 Bur—3/8" Head Dia. × 1 1/16" Head Lg.
    14° Tapered Cone-Shape Rounded-Tip SL-4 Bur—1/2" Head Dia. × 1 1/8" Head Lg.

    Overall Length

    1 3/4" to 3"

    For Use On

    Steel, Hardened Steel, Tool Steel, Stainless Steel, Titanium, Iron, Nickel

    For Use With

    Grinders for Bits and Burs

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.1500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These bur sets include a range of shapes and sizes for general deburring tasks.

    If you can't find the set you want, create a custom one from our offering of burs and containers.

    Double-Cut Tooth—Double-cut tooth burs are for rapid metal removal with a coarser finish than single cut.
