    Standard-Wall Butt-Weld Steel Unthreaded Fitting

    Offset Straight Reducer, 3 x 2-1/2 Pipe Size

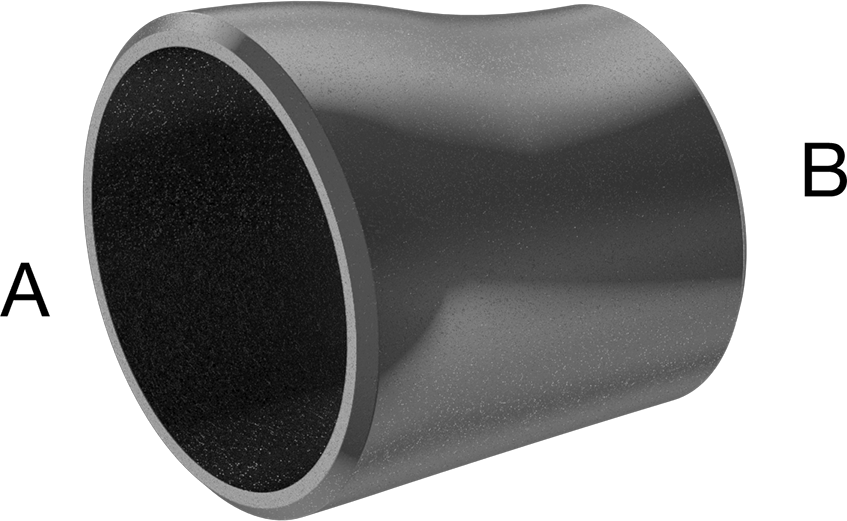

    Image of Product. Front orientation. Contains Annotated. Standard-Wall Butt-Weld Steel Unthreaded Fitting, Offset Straight Reducer, 3 x 2-1/2 Pipe Size.

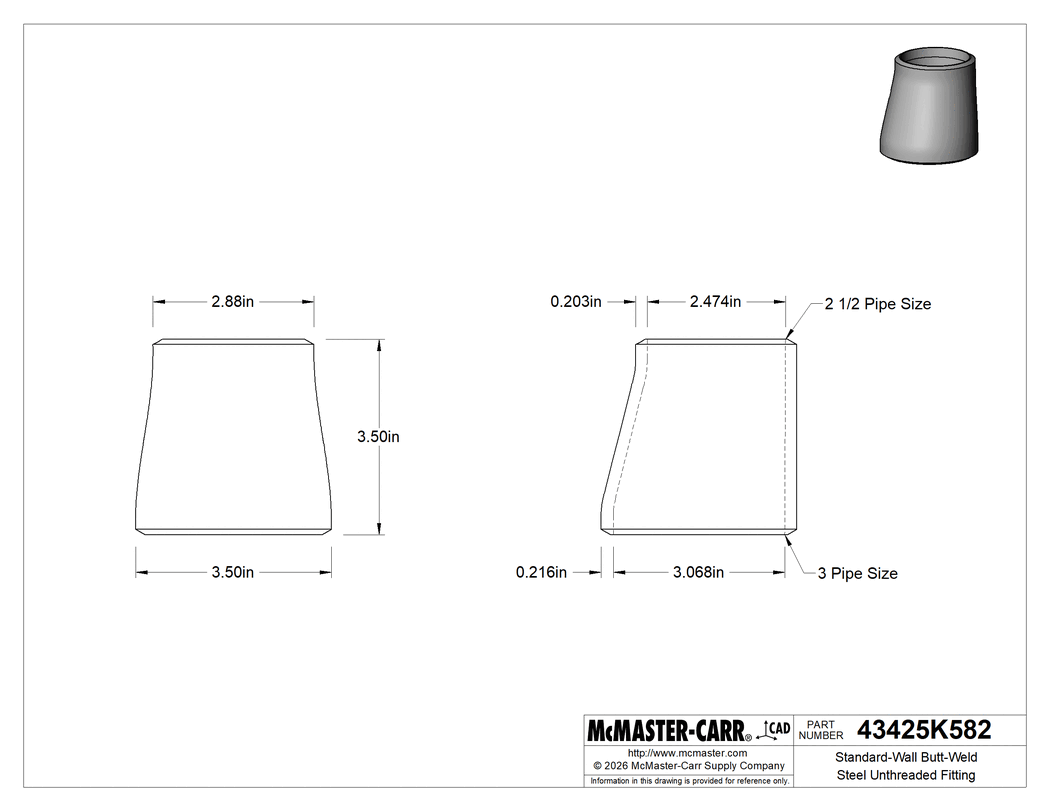

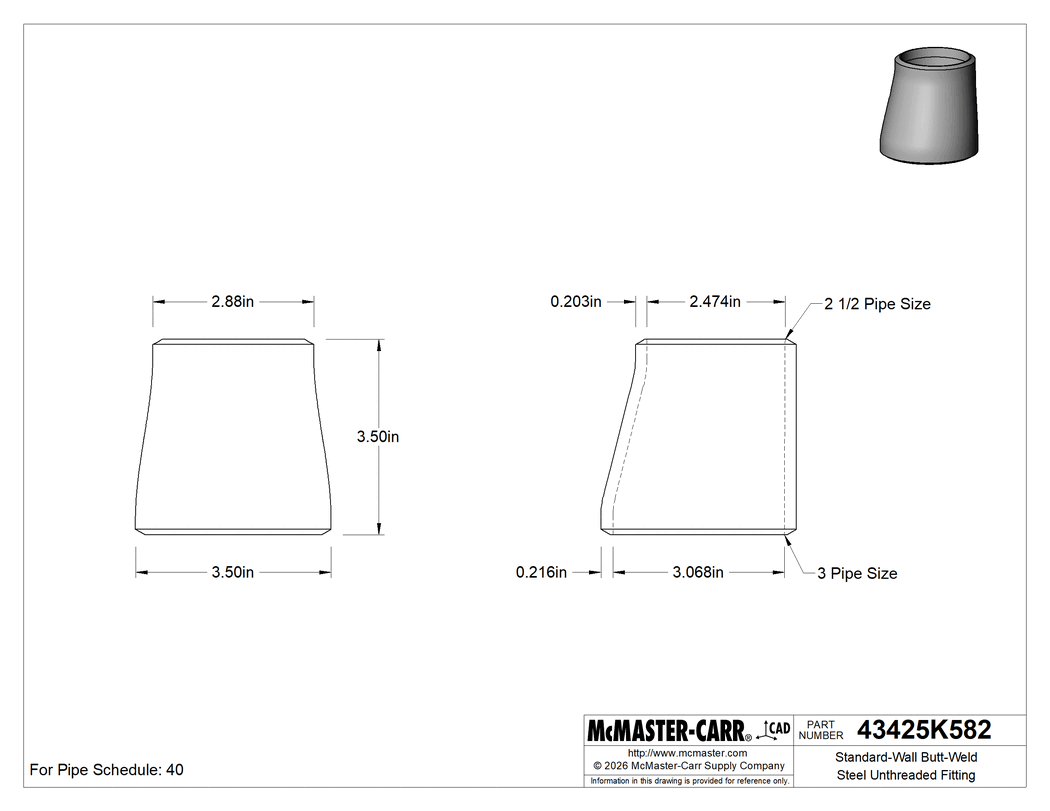

    Technical Drawing of Standard-Wall Butt-Weld Steel Unthreaded Fitting, Offset Straight Reducer, 3 x 2-1/2 Pipe Size.
    Image of Product. Top orientation. Standard-Wall Butt-Weld Steel Unthreaded Fitting, Offset Straight Reducer, 3 x 2-1/2 Pipe Size.
    2-D PDF
    000000 each
    43425K582
    In stock
    43425K582
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    Low Pressure

    Wall Thickness Rating

    Standard

    Fitting Configuration

    Offset

    Shape

    Straight

    Fitting Type

    Reducer

    Fitting Connection

    Butt Weld × Butt Weld

    Pipe Size

    (A)

    3

    (B)

    2 1/2

    Construction

    Seamless

    Pipe Schedule

    40

    Material

    Steel

    Connects To

    Pipe

    For Flange

    Class

    150

    Material

    Steel

    For Pipe Material

    Steel

    For Pipe Schedule

    40

    For Use With

    Air, Natural Gas, Oil, Steam, Water

    ID

    (A)

    3.068"

    (B)

    2.469"

    Length

    3 1/2"

    OD

    (A)

    3 1/2"

    (B)

    2 7/8"

    Specifications Met

    ASME B16.9, ASTM A234

    System of Measurement

    Inch

    Threading

    Unthreaded

    Wall Thickness

    (A)

    0.216"

    (B)

    0.203"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730793.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Butt-weld fittings allow for a smooth connection that provides maximum flow. They have beveled ends that, when flush to pipe, create a trough for a strong, permanent weld. Fittings are also known as Schedule 40. They are for use in noncorrosive environments.

    Offset Straight Reducers—Offset straight reducers are also known as eccentric reducers; they connect one pipe to another smaller-diameter pipe and have the centers offset so your line can drain.
