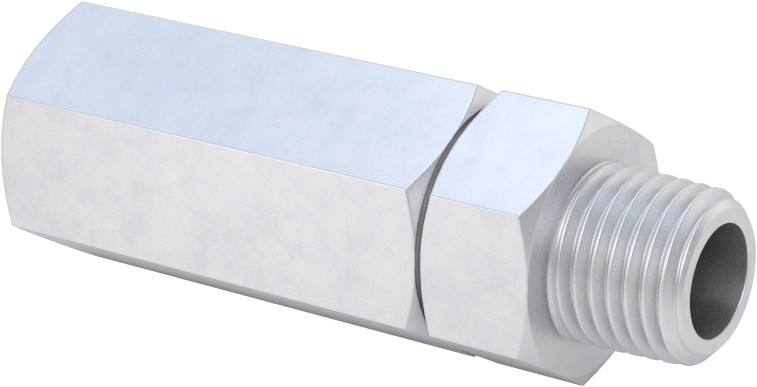

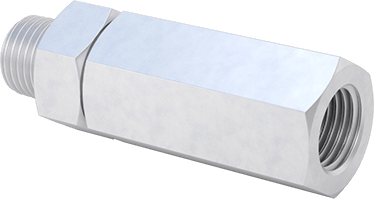

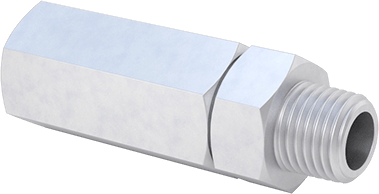

Compressed Air Filter for Particle Removal
1/4 NPT Female Inlet x 1/4 NPT Male Outlet

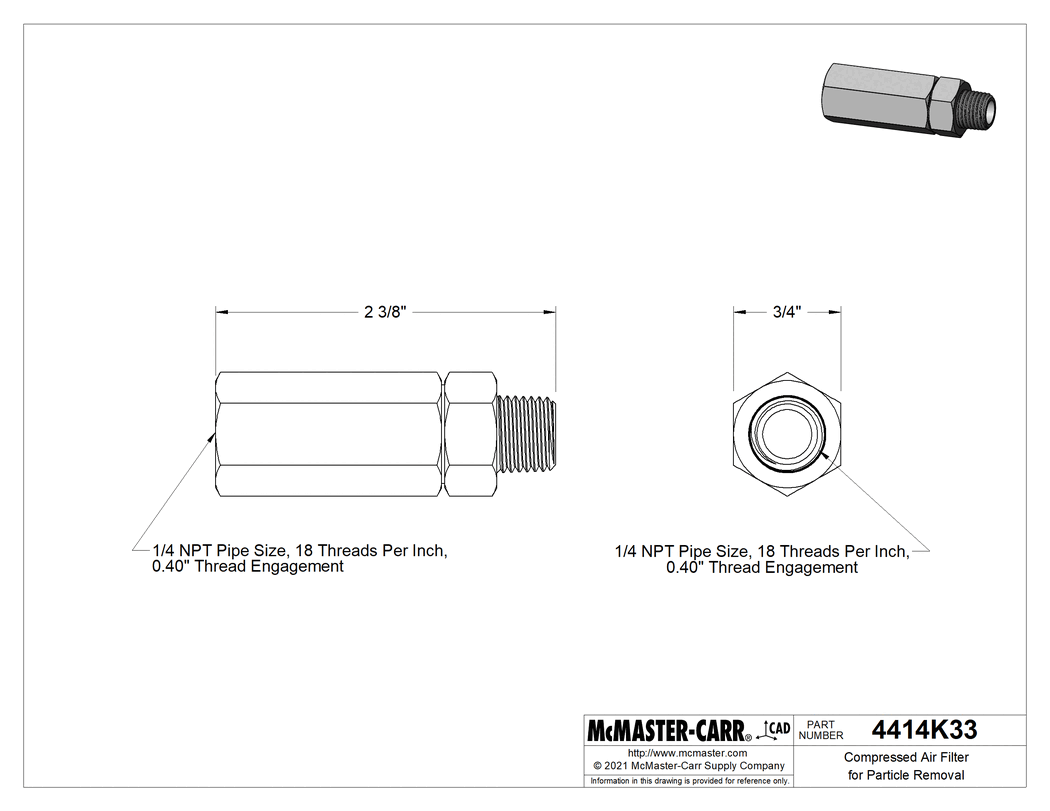

2-D PDF
00000 each
4414K33
In stock
4414K33
00000 each
Each
Select a compatible file type: Parasolid
Learn more about our Solidworks Add-In
Drain Type | Without Drain |
Inlet | |
Connection | Threaded |
Thread Type | NPT |
Gender | Female |
Outlet | |
Connection | Threaded |
Thread Type | NPT |
Gender | Male |
Pipe Size | |
Inlet | 1/4 |
Outlet | 1/4 |
Maximum Flow Rate @ Pressure | 38 scfm @ 100 psi |
Maximum Pressure | 500 psi |
Removes Particle Size Down To | 40 μm |
Housing Material | Aluminum |
Overall | |
Width | 3/4" |
Length | 2 3/8" |
Component | Filter |
Filter Service Indicator Included | No |
For Removing | Particles |
Maximum Temperature | 200° F |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842139.0115 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Protect small air-powered tools, such as impact wrenches, ratchet wrenches, grinders, and screwdrivers. Thread these filters onto an air hose and attach them directly to the tool to remove particles from your compressed air line.
The information in this 3-D model is provided for reference only.
