    Low-Pressure Brass Threaded Pipe Fitting

    Wye Connector, 1-1/2 NPT Female

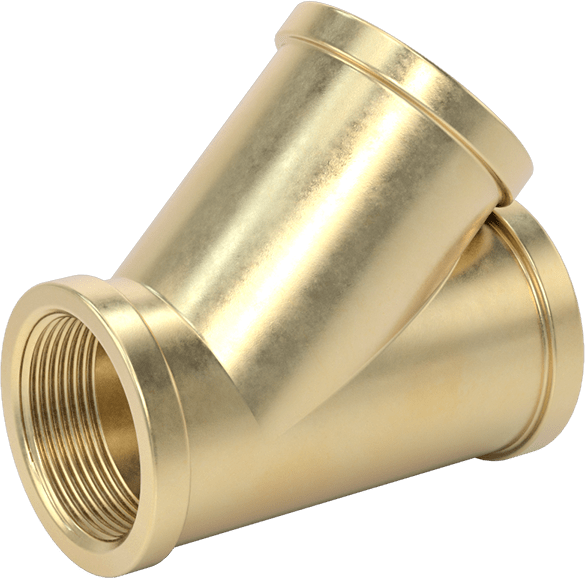

    Image of Product. Front orientation. Low-Pressure Brass Threaded Pipe Fitting, Wye Connector, 1-1/2 NPT Female.

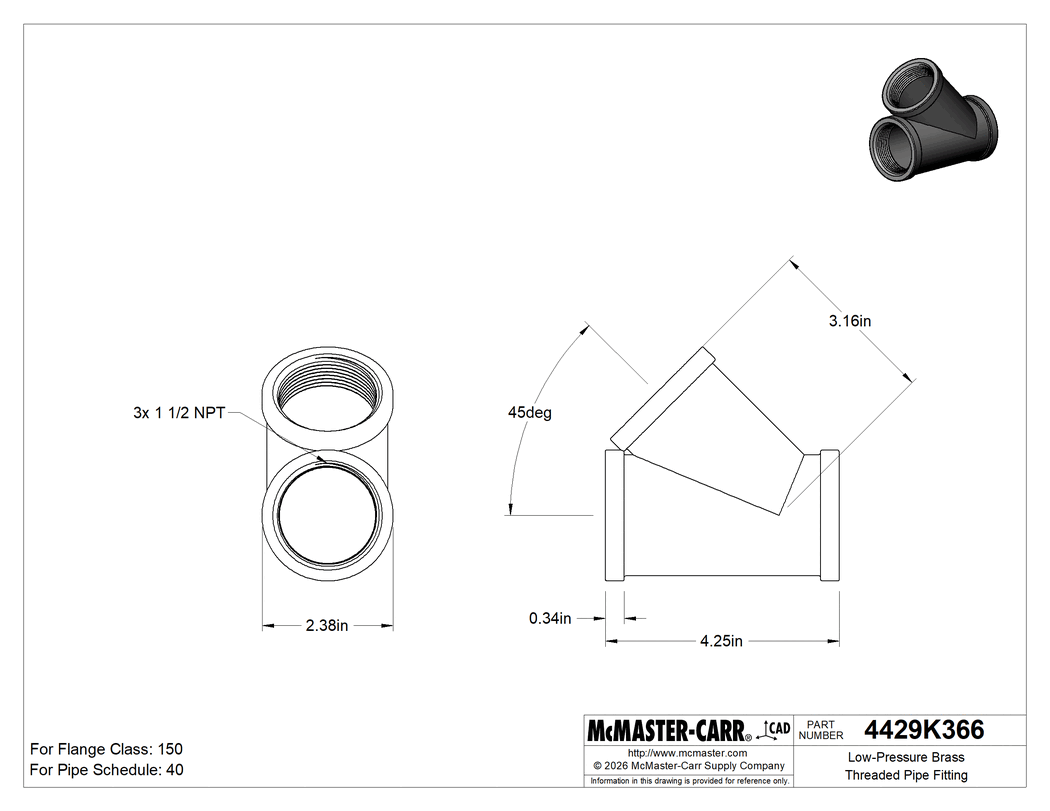

    Technical Drawing of Low-Pressure Brass Threaded Pipe Fitting, Wye Connector, 1-1/2 NPT Female.
    Image of Product. Back orientation. Low-Pressure Brass Threaded Pipe Fitting, Wye Connector, 1-1/2 NPT Female.
    Image of Product. Side1 orientation. Contains SizingReference. Low-Pressure Brass Threaded Pipe Fitting, Wye Connector, 1-1/2 NPT Female.
    2-D PDF
    0000000 each
    4429K366
    In stock
    4429K366
    0000000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    Pressure Rating

    Low Pressure

    Shape

    Wye

    Fitting Type

    Connector

    Fitting Connection

    NPT Female

    Pipe Size

    1 1/2

    Wye Angle

    45°

    Pressure Class

    125

    Maximum Pressure @ Temperature

    200 psi @ 72° F

    Connects To

    Pipe

    Environment

    Food and Beverage

    Food Industry Standard

    NSF/ANSI 61

    For Flange Class

    150

    For Pipe Schedule

    40

    For Use With

    Air, Drinking Water, Natural Gas, Oil

    Specifications Met

    ASME B1.20.1, ASME B16.15

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    741220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Use these fittings in low-pressure flow applications. They have good corrosion resistance.

    NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

    The information in this 3-D model is provided for reference only.
