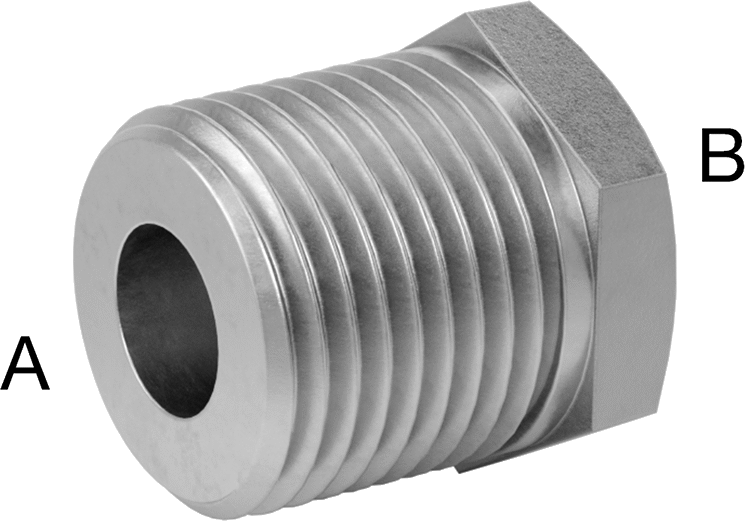

High-Pressure 316 Stainless Steel Pipe Fitting
Bushing Adapter, 1/2 NPT Male x 1/4 NPT Female

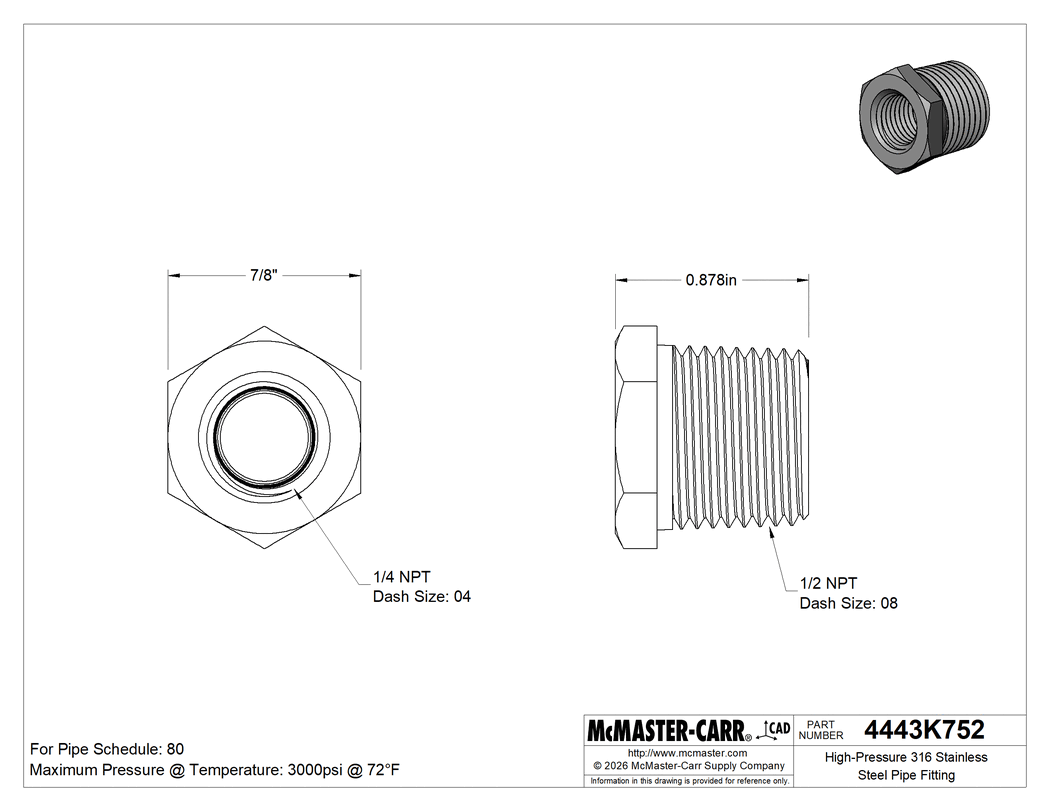

2-D PDF
000000 Each
In stock
4443K752
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
Shape | Straight |
Type | Reducing Adapter, Bushing |
Body Shape | Hex |
Material | 316 Stainless Steel |
Fabrication | Forged |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPT Male × NPT Female |
Pipe Size | |
(A) | 1/2 |
(B) | 1/4 |
Dash Size | |
(A) | 08 |
(B) | 04 |
Pressure Class | 3000 |
Length | 7/8" |
Hex Width | 7/8" |
For Pipe | |
Schedule | 80 |
Material | 316 Stainless Steel, 316/316L Stainless Steel |
Specifications Met | ASTM A182 |
Maximum Pressure | 3,000 psi @ 72° F |
Maximum Steam Pressure | 2,800 psi @ 350° F |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | Not Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | No |
Schedule B | 730722.5000 |
ECCN | 2B999 |
Use these heavy duty fittings in high-pressure flow applications.
316 stainless steel fittings have excellent corrosion resistance.
The information in this 3-D model is provided for reference only.
