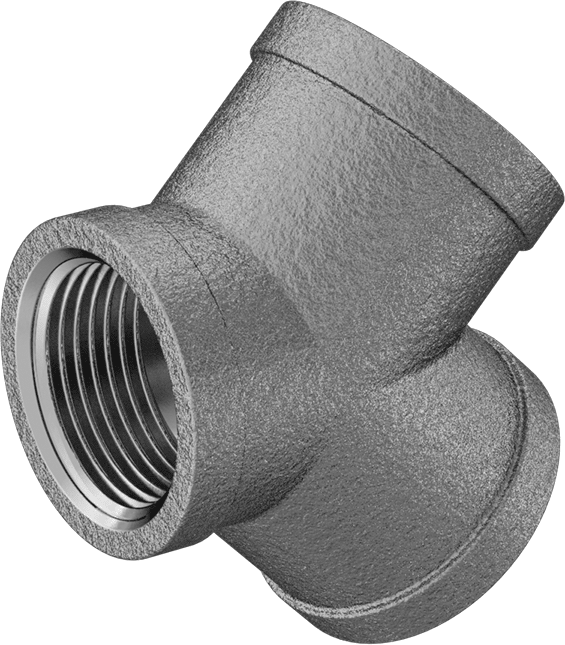

316 Stainless Steel Threaded Pipe Fitting
Low-Pressure, Wye Connector, 1 NPT Female
Pressure Rating | Low Pressure |
Shape | Wye |
Fitting Type | Connector |
Fitting Connection | NPT Female |
Material | 316 Stainless Steel |
Pipe Size | 1 |
Wye Angle | 90° |
Pressure Class | 150 |
Maximum Pressure @ Temperature | 300 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 150 psi @ 350° F |
Connects To | Pipe |
Fabrication | Heat Treated |
For Flange | |
Class | 150 |
Material | 316 Stainless Steel, 316/316L Stainless Steel |
For Pipe Material | 316 Stainless Steel, 316/316L Stainless Steel |
For Pipe Schedule | 40 |
For Use With | Air, Natural Gas, Oil, Steam, Water |
Performance | Chemical Resistant, Ultra Corrosion Resistant |
Specifications Met | ASTM A351 |
System of Measurement | Inch |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730722.1000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use these fittings in a low-pressure pipe line.
316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

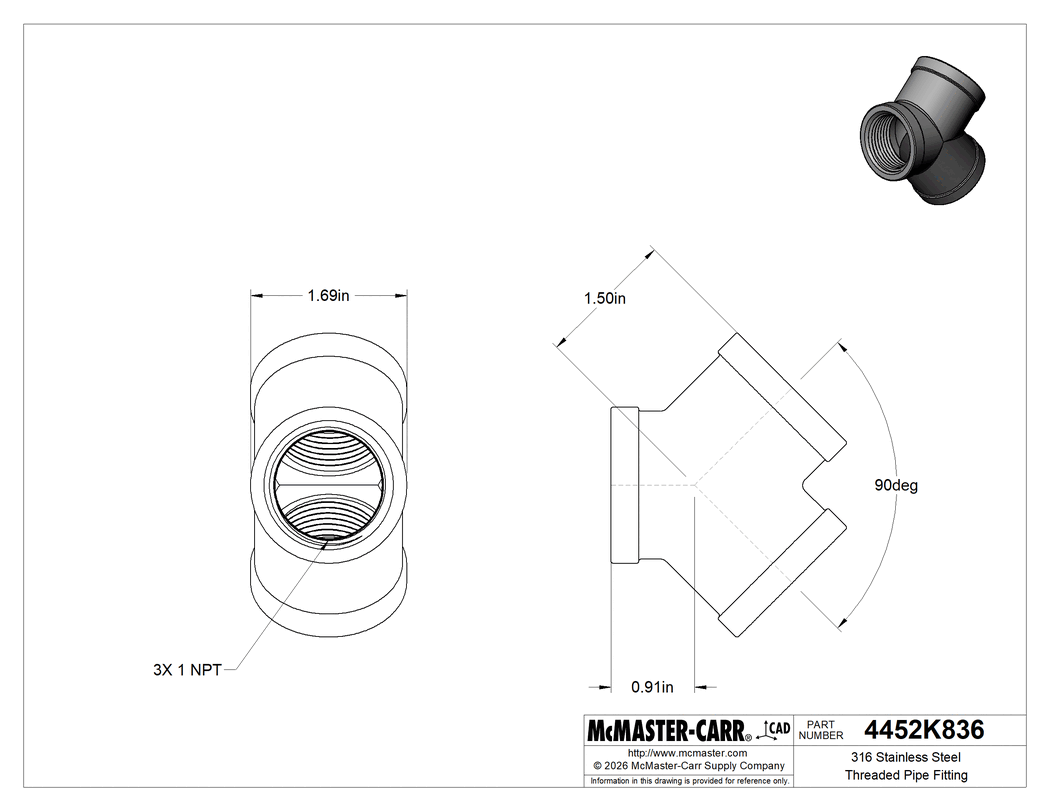

The information in this 3-D model is provided for reference only.
