    Tight-Tolerance Weldable 954 Bearing Bronze Bar

    1/2" Thick x 1" Wide x 2 Feet Long

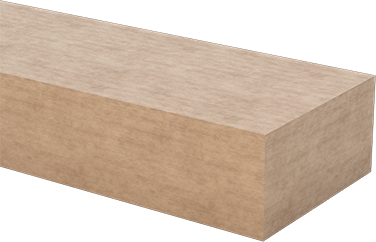

    Image of Product. Front orientation. Tight-Tolerance Weldable 954 Bearing Bronze Bar, 1/2" Thick x 1" Wide x 2 Feet Long.

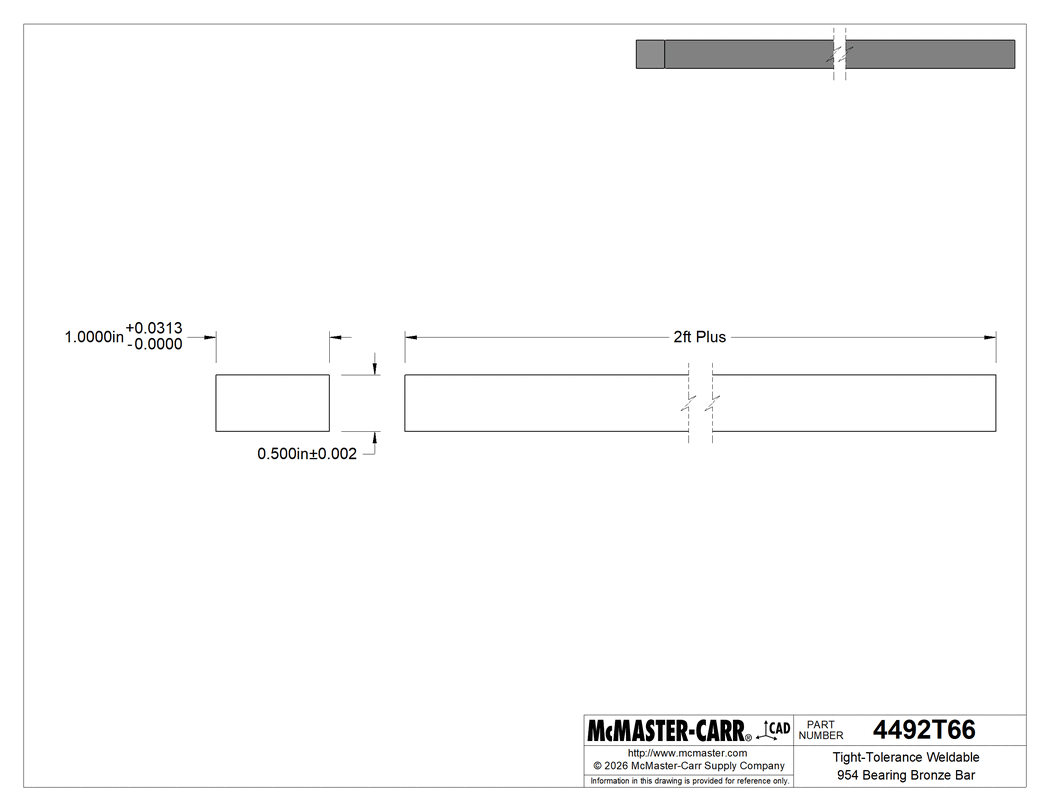

    Technical Drawing of Tight-Tolerance Weldable 954 Bearing Bronze Bar, 1/2" Thick x 1" Wide x 2 Feet Long.

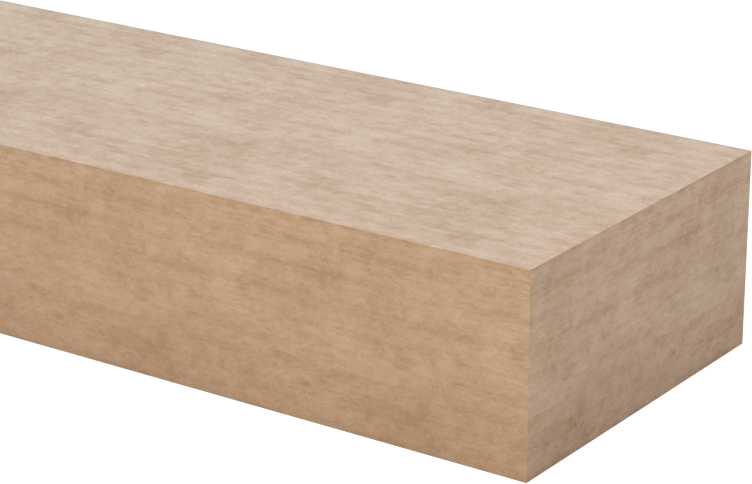

    Image of Product. Side1 orientation. Contains SizingReference. Tight-Tolerance Weldable 954 Bearing Bronze Bar, 1/2" Thick x 1" Wide x 2 Feet Long.
    2-D PDF
    0000000 each
    4492T66
    In stock
    4492T66
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tolerance Rating

    Tight

    Thickness

    1/2"

    Thickness Tolerance

    -0.002" to 0.002"

    Length

    2 ft.

    Width

    1"

    Width Tolerance

    0" to 0.0313"

    Temper Designation

    M07

    Appearance

    Plain

    Certificate

    Form

    Digital

    Type

    Material Certificate with Traceable Lot Number

    Conductivity Percentage

    13% IACS

    Density

    0.269 lb/in³

    Elongation

    12%

    Fabrication

    Cast

    Flatness Tolerance

    Not Rated

    Free Of

    Lead

    Hardness

    Not Rated

    Hardness Rating

    Not Rated

    Heat Treatable

    Yes

    Length Tolerance Type

    Plus

    Material

    954 Bearing Bronze

    Material Composition

    Aluminum

    10% to 11.5%

    Copper

    83% Min.

    Iron

    3% to 5%

    Manganese

    0% to 0.5%

    Nickel

    0% to 1.5%

    Mechanical Finish

    Precision Ground

    Melting Point Temperature

    1,880° F

    Modulus of Elasticity

    15,500 ksi

    Performance

    Ultra Corrosion Resistant, Crack Resistant, Fatigue Resistant, Heat Treatable, Highly Machinable, Highly Weldable, Marine Grade

    Shape

    Bar

    Specifications Met

    ASTM B505

    Surface Resistivity

    Not Rated

    Thermal Conductivity @ Temperature

    33.9 BTU/(hr⋅ft⋅°F) @ 68° F

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Yield Strength

    32,000 psi

    Country of Origin

    Spain, United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    740939.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Additional Specifications

    SDS

    Combine precision and corrosion resistance. These 954 bearing bronze bars come ground to paper-thin tolerances on top and bottom for parts that require pinpoint precision.

    One of the most corrosion-resistant bearing bronze alloys, 954 withstands everything from sea water to sulfuric acid. It's often turned into bearings and valve bodies for demanding environments such as salt mines. Also known as aluminum bronze. If you need similar corrosion resistance with even greater strength, consider 955 bearing bronze instead.
