    PVC Pipe Insulation Jacketing

    90 Degree Elbow, for 3-1/8" Insulation OD

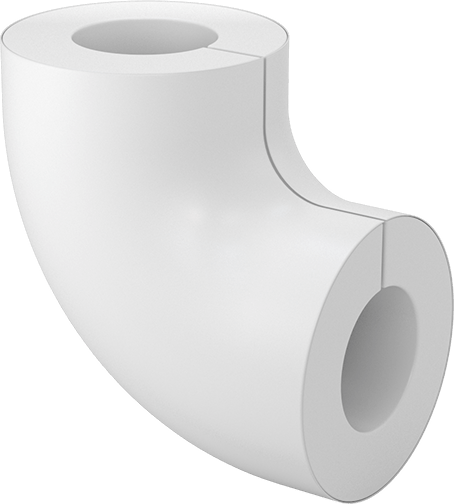

    Image of Product. Front orientation. PVC Pipe Insulation Jacketing, 90 Degree Elbow, for 3-1/8" Insulation OD.

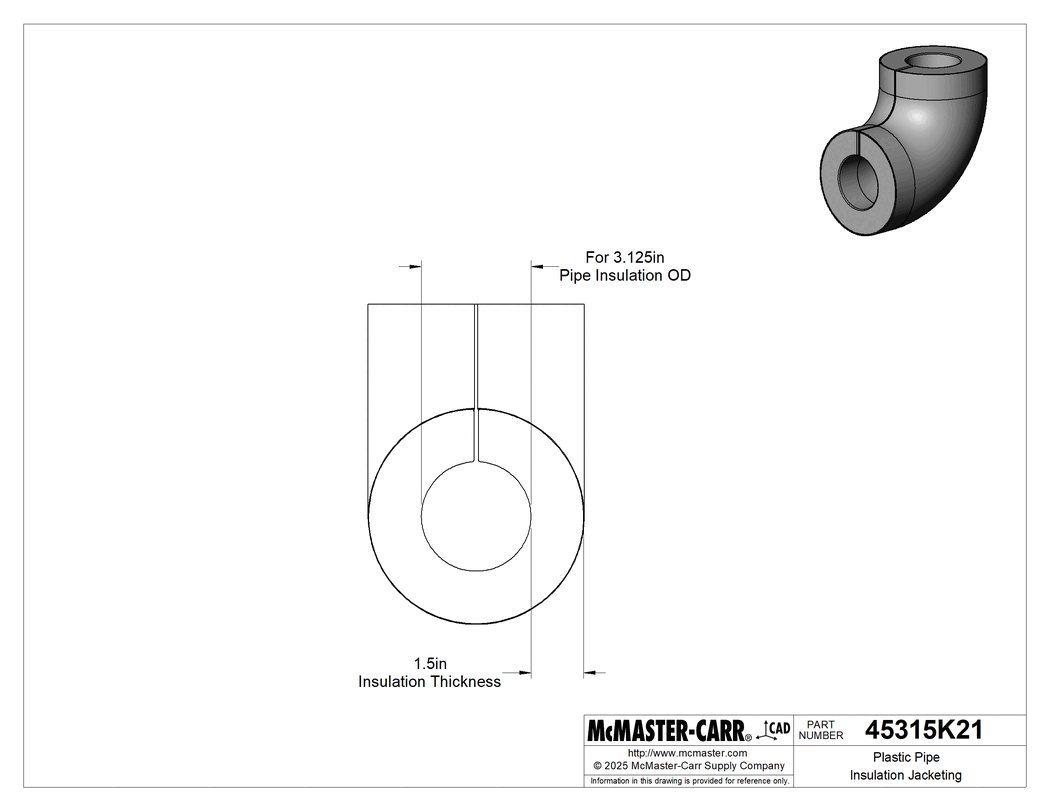

    Technical Drawing of PVC Pipe Insulation Jacketing, 90 Degree Elbow, for 3-1/8" Insulation OD.

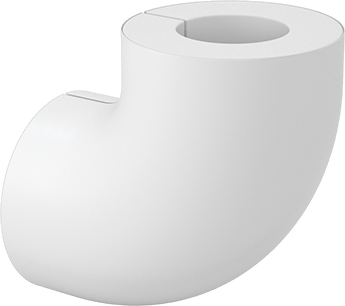

    Image of Product. Back orientation. PVC Pipe Insulation Jacketing, 90 Degree Elbow, for 3-1/8" Insulation OD.

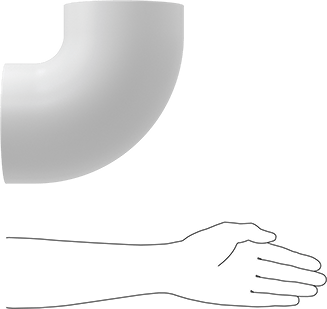

    Image of Product. Side1 orientation. Contains SizingReference. PVC Pipe Insulation Jacketing, 90 Degree Elbow, for 3-1/8" Insulation OD.
    2-D PDF
    00000 each
    45315K21
    In stock
    45315K21
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shape

    90° Elbow

    For Pipe Insulation OD

    3 1/8"

    Flexibility

    Flexible

    Includes

    1 1/2" Thick Piece of Fiberglass Insulation

    Temperature Range

    0° F to 140° F

    Color

    White

    Flammability Rating

    ASTM E84 25/50 for Flame and Smoke

    Backing Type

    Plain

    Elbow Bend

    90°

    For Use On

    Pipe

    Material

    PVC

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    701980.1000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Products

    Silicone Sealant (10.1-fl. oz. Cartridge)

    Tape (2" × 108 ft.)

    Protect insulation from light impact and moisture with this durable PVC jacketing. When selecting size, use the OD of the insulation you are jacketing. Seal with sealant or tape (sold separately).
